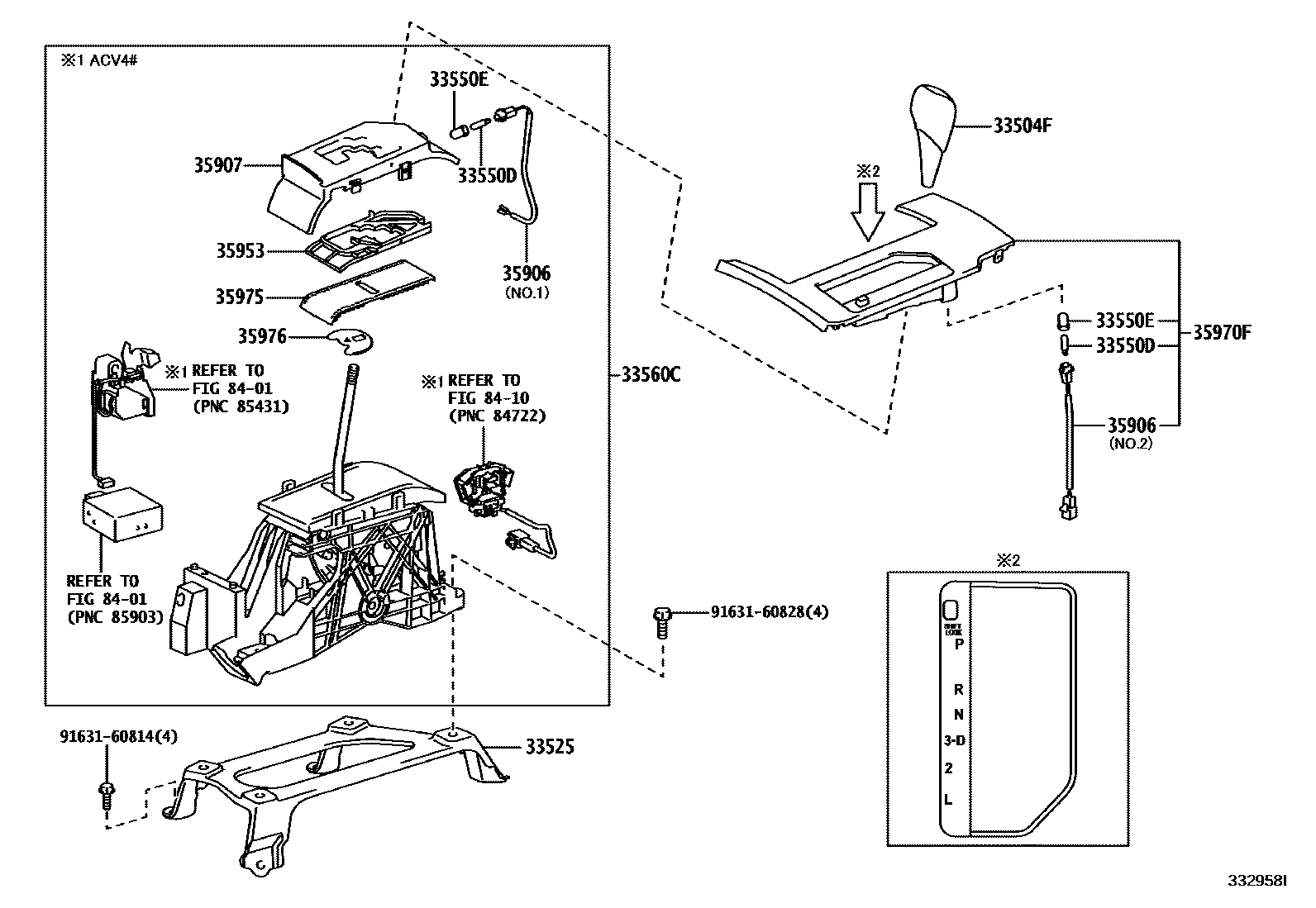

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
ASH BROWN,TRIM4#
BLACK,TRIM2#
ASH BROWN,TRIM4#
33525SUPPORT, SHIFT LEVER
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
35906WIRE SUB-ASSY, INDICATOR LAMP
NO.1
NO.2
NO.1
35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35953GUIDE, POSITION INDICATOR LIGHT
35970FHOUSING ASSY, POSITION INDICATOR
BROWN,TRIM2#,4#
BROWN,TRIM4#
BROWN,TRIM2#,4#
BROWN,TRIM2#,4#
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401
8410
9163160814
main91631-60814
9163160828
main91631-60828
15 parts on this diagram · 3 diagrams in section
