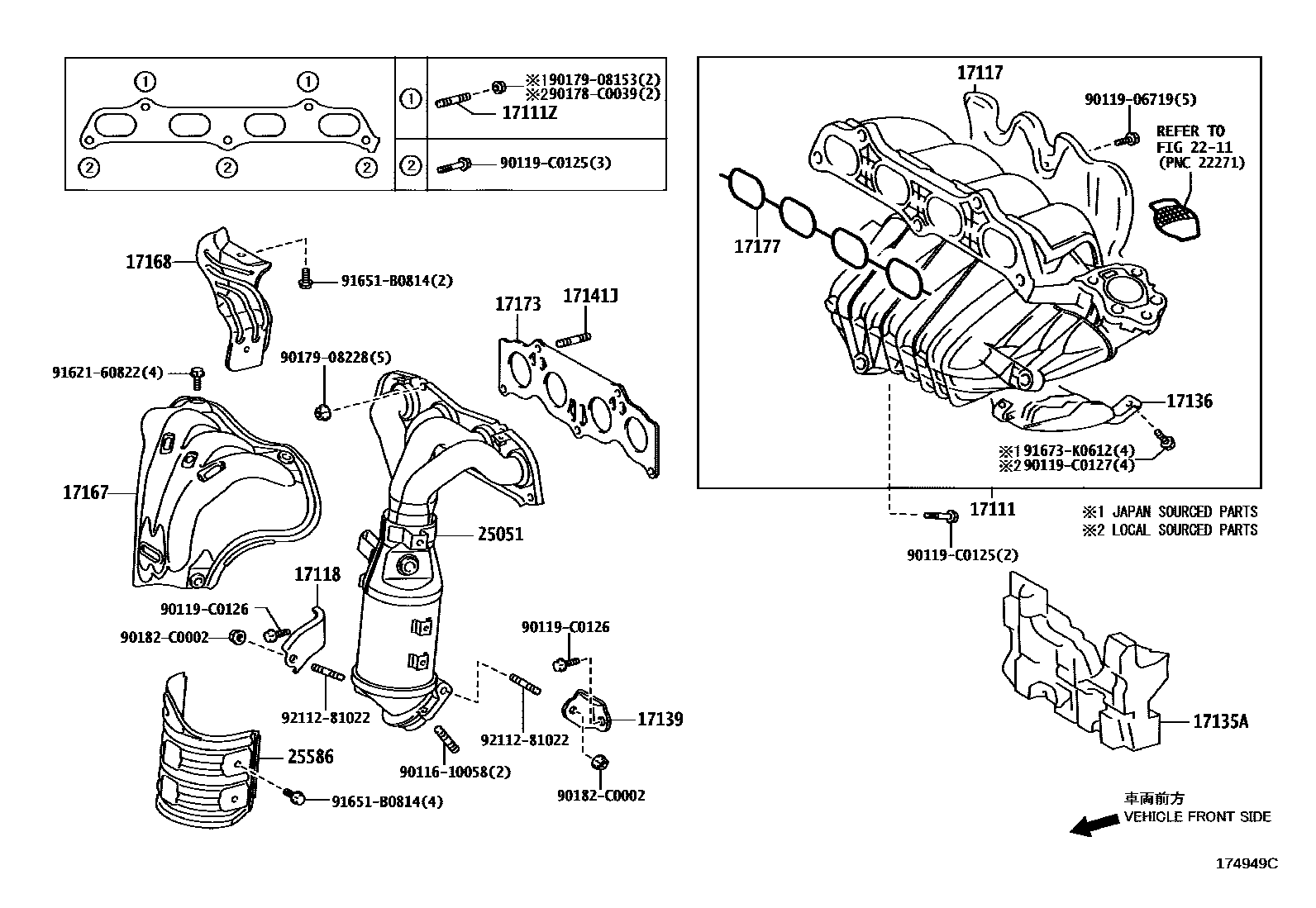

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17120-0H060i2AZFE..ACV40200605-201112

(L)

sub17120-0H061

main17120-0H070i1AZFE..ACV41200605-201006

(L)

sub17120-0H071

main17120-0H071i1AZFE..ACV41201007-201201

(L)

sub17120-0H072

main17120-0H072i1AZFE..ACV41201201-201505

main17120-28070i1AZFE..ACV41200605-201201

(J)

sub17120-28071

main17120-28140i2AZFE,3AZFXE..ACV40,AHV41200605-201112

(J)

sub17120-28141

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026i2AZFE..ACV40200605-200903

17117INSULATOR, INTAKE PIPE

main17117-0H020i1AZFE..ACV41200605-200903

(L)

main17117-28020i1AZFE..ACV41200605-201201

(J)

main17117-28040i2AZFE..ACV40200605-201112

17118STAY, MANIFOLD

main17118-28070i3AZFXE..AHV41201003-201112

main17118-28080i2AZFE..ACV40200605-200903

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-28011i2AZFE..ACV40200605-200903

17136INSULATOR, INTAKE MANIFOLD, NO.2

main17136-28020i2AZFE..ACV40200605-201112

17139STAY, MANIFOLD, NO.2

main17139-28050i2AZFE..ACV40200605-200903

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-08037i1AZFE,2AZFE,3AZFXE..ACV4#,AHV41200605-200903

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0H050i2AZFE..ACV40200605-200903

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0H050i2AZFE..ACV40200605-200903

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0H040i2AZFE..ACV40200605-200903

(L)

main17173-28010i1AZFE,2AZFE,3AZFXE..ACV4#,AHV41200605-200903

(J)

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-28010i1AZFE..ACV41200605-201201

sub17177-28031

main17177-28031i1AZFE..ACV41201201

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-0H060i1AZFE,2AZFE..ACV4#200605-201010

main25051-0H150i1AZFE,2AZFE..ACV4#201011

main25051-28310i3AZFXE..AHV41201003-201112

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-0H050i2AZFE..ACV40200605-200903

main25586-28110i3AZFXE..AHV41201003-201112

9011610058

main90116-10058

9011906719

main90119-06719

90119C0125

main90119-C0125

90119C0126

main90119-C0126

90119C0127

main90119-C0127

90178C0039

main90178-C0039

9017908153

main90179-08153

9017908228

main90179-08228

90182C0002

main90182-C0002

9162160822

main91621-60822

91651B0814

main91651-B0814

91673K0612

main91673-K0612

9211281022

main92112-81022

28 parts on this diagram · 3 diagrams in section
