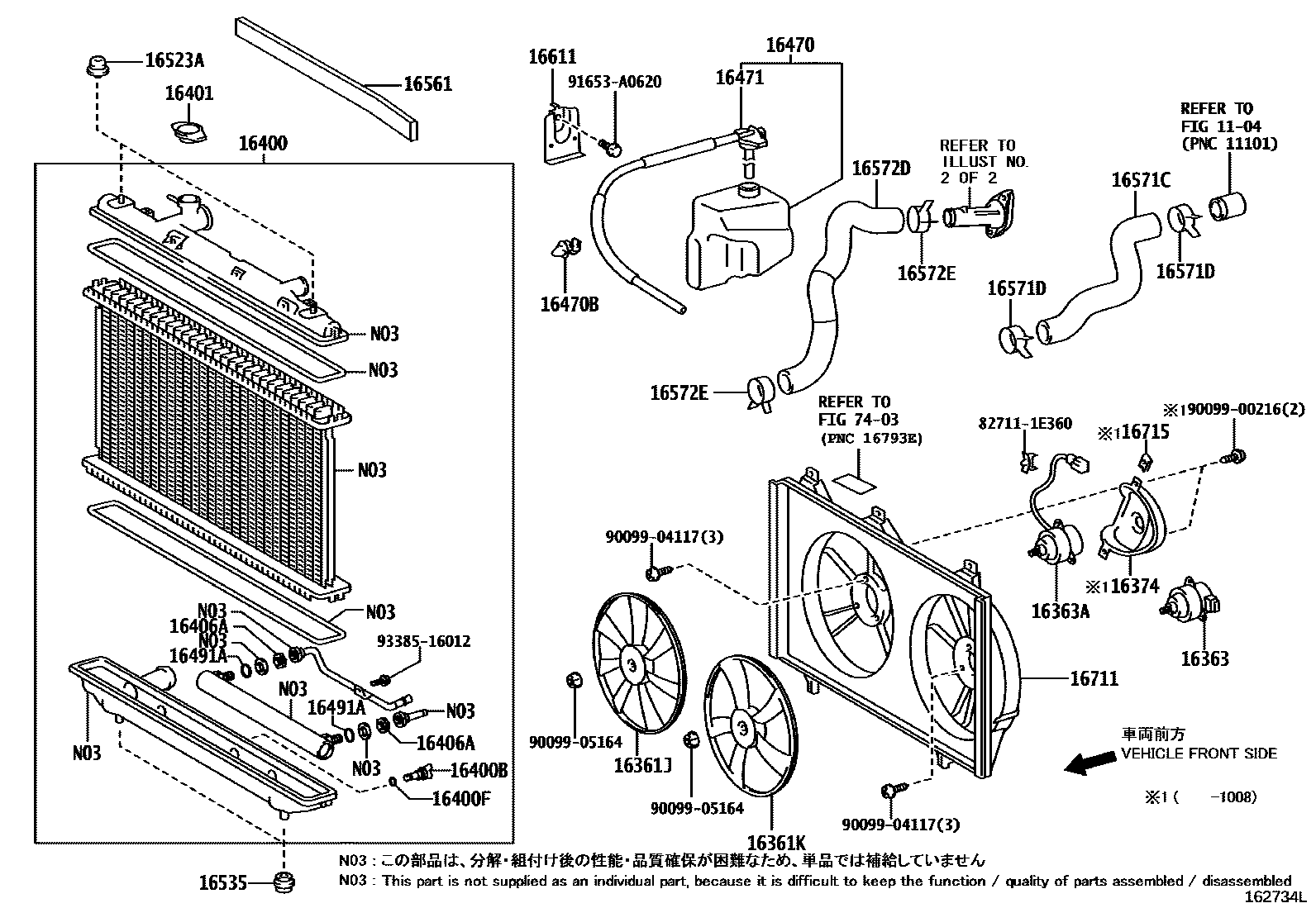

RADIATOR & WATER OUTLET
1104
16361JFAN, RH
16361KFAN, LH
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16374INSULATOR, COOLING FAN MOTOR
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
(L)
(J)
16406ASUPPORT(FOR OIL COOLER)
16470TANK ASSY, RADIATOR RESERVE
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16491ARING, O(FOR ATM OIL COOLER)
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
16715BRACKET, FAN SHROUD
7403
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9009900216
9009904117
main90099-04117
9009905164
91653A0620
9338516012
32 parts on this diagram · 5 diagrams in section
