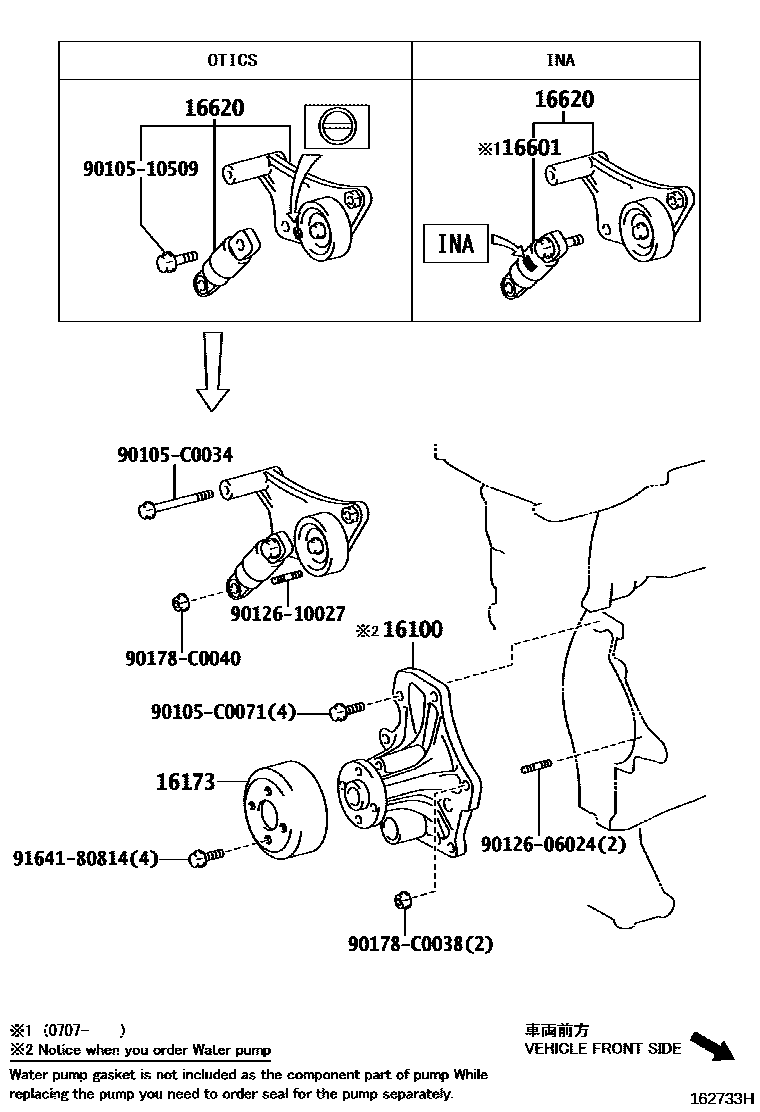

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-0H040i1AZFE..ACV41200605-200903

sub16100-0H050

16173PULLEY, WATER PUMP

main16173-0H040i1AZFE,2AZFE..ACV4#200803-201112

main16173-28020i1AZFE,2AZFE..ACV4#200605-200803

16601TENSIONER SUB-ASSY, V-RIBBED BELT

main16601-28041i1AZFE,2AZFE..ACV4#200707-200801

INA

sub16601-28050

main16601-28050i1AZFE,2AZFE..ACV4#200801-200903

INA

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W110i1AZFE,2AZFE..ACV4#200605-200608

sub16620-28070

main16620-28070i1AZFE,2AZFE..ACV4#200608-200703

sub16620-28012

main16620-28071i1AZFE,2AZFE..ACV4#200707-200801

sub16620-28090

main16620-28080i3AZFXE..AHV41201003-201112

main16620-28090i1AZFE,2AZFE..ACV4#200703-200903

9010510509

main90105-10509

90105C0034

main90105-C0034

90105C0071

main90105-C0071

9012606024

main90126-06024

9012610027

main90126-10027

90178C0038

main90178-C0038

90178C0040

main90178-C0040

9164180814

main91641-80814

12 parts on this diagram · 2 diagrams in section
