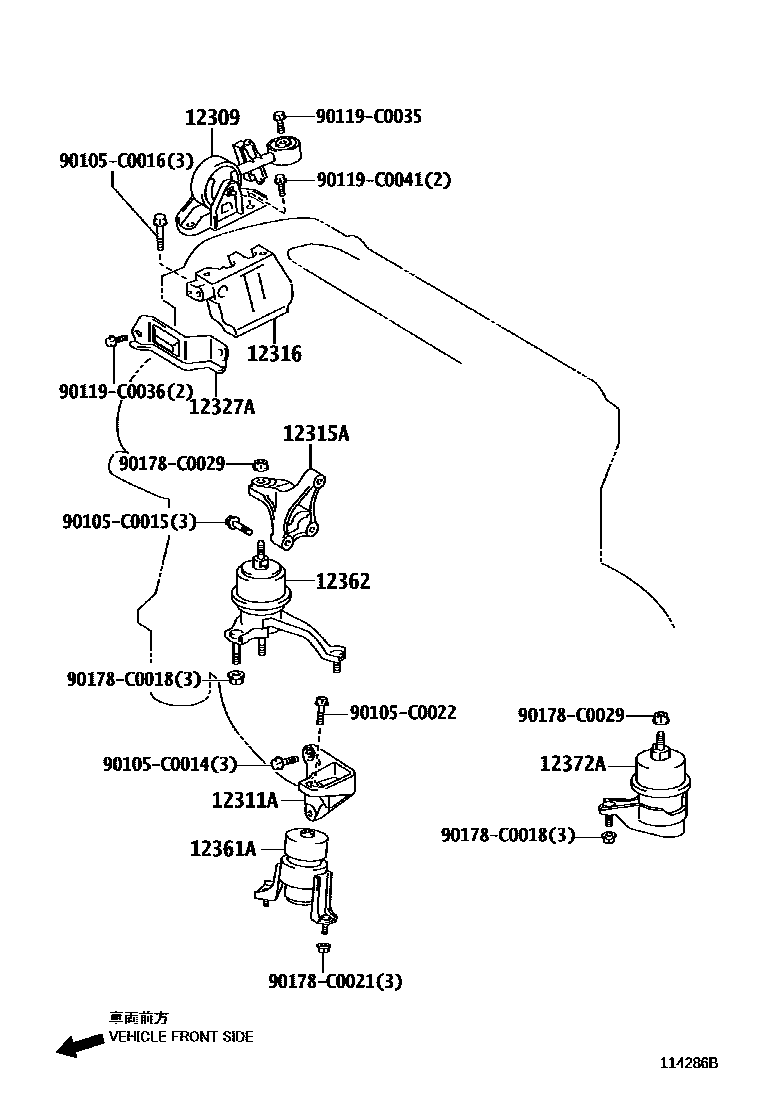

MOUNTING

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-0H090i1AZFE..ACV41200605-201010

sub12309-0H091

main12309-0H091i1AZFE,2AZFE,3AZFXE..ACV4#,AHV41201011

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0H130i2AZFE..ACV40200605-200903

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0H070i2AZFE..ACV40200605-200903

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-0H040i2AZFE..ACV40200605-200903

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-0H050i1AZFE..ACV41200605-200903

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0H110i2AZFE..ACV40200605-200903

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-0H020i2AZFE..ACV40200605-200903

sub12362-0V020

main12362-0V020i1AZFE,2AZFE..ACV4#200902

main12362-28200i3AZFXE..AHV41201003-201112

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0H110i2AZFE..ACV40200605-201112

main12372-0H120i1AZFE..ACV41200605-200903

main12372-0H200i3AZFXE..AHV41201003-201112

90105C0014

main90105-C0014

90105C0015

main90105-C0015

90105C0016

main90105-C0016

90105C0022

main90105-C0022

90119C0035

main90119-C0035

90119C0036

main90119-C0036

90119C0041

main90119-C0041

90178C0018

main90178-C0018

90178C0021

main90178-C0021

90178C0029

main90178-C0029

18 parts on this diagram · 1 diagram in section
