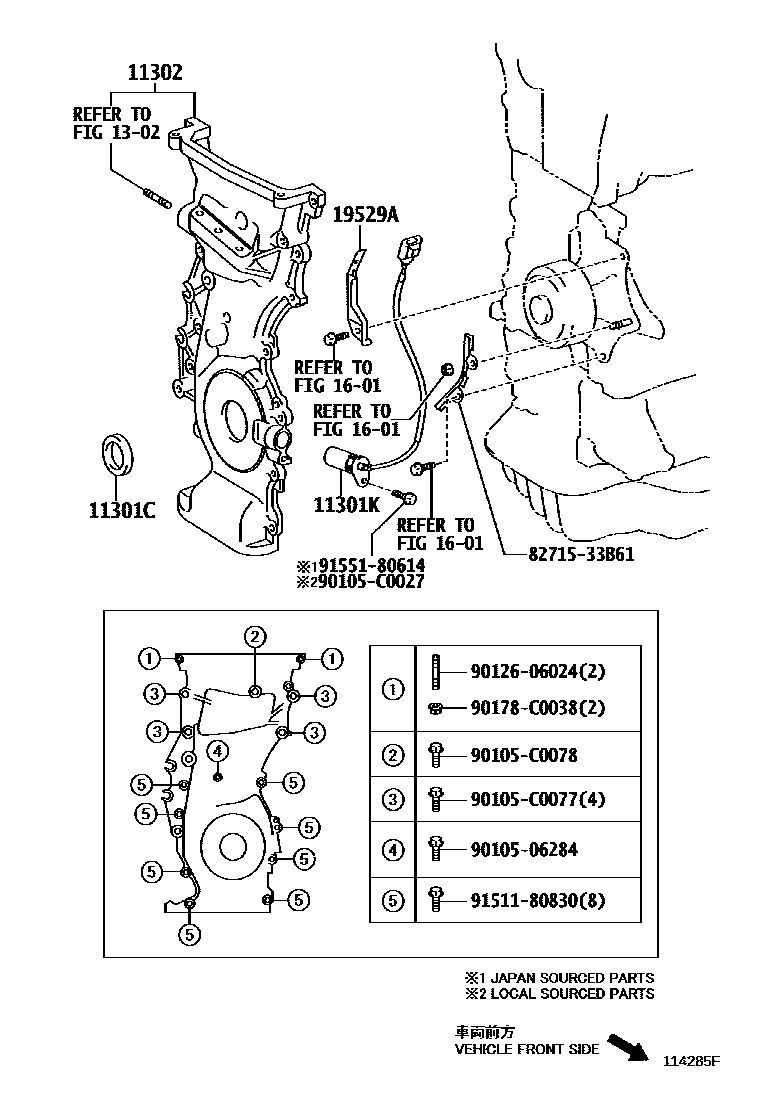

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-C0025i1AZFE..ACV41201204

main90311-T0024i2AZFE..ACV40200605-201204

11301KSENSOR, CRANK POSITION

main90919-05067i2AZFE..ACV40200605-200903

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0H060i1AZFE..ACV41200605-200903

(L)

main11310-28071i1AZFE..ACV41200605-200903

(J)

1302

1601

19529ACLAMP

main19529-28050i2AZFE..ACV40200605-200903

8271533B61BRACKET,WIRING HARNESS CLAMP

main82715-33B61

9010506284

main90105-06284

90105C0027

main90105-C0027

90105C0077

main90105-C0077

90105C0078

main90105-C0078

9012606024

main90126-06024

90178C0038

main90178-C0038

9151180830

main91511-80830

9155180614

main91551-80614

15 parts on this diagram · 2 diagrams in section
