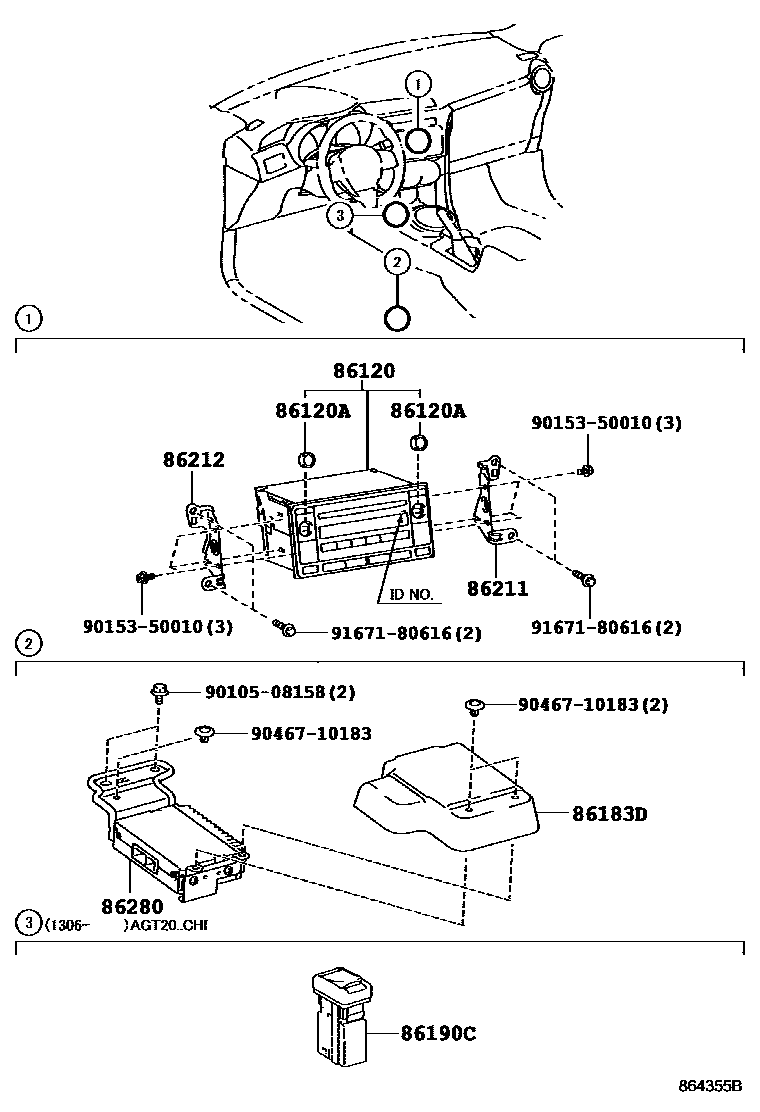

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-21060iAGT20..CHI201102-201306

PANASONIC ID=52884

main86120-21080iAGT20..GEN201008-201305

PANASONIC,ID=52885,AUDIO-RADIO LESS 8SPEAKER

main86120-21080iAGT20..GEN201008-201305

PANASONIC,ID=52885

main86120-21090iAGT20..GCC201010-201305

PANASONIC,ID=52886

main86120-21090iAGT20..GCC201010-201305

PANASONIC,ID=52886,AUDIO-RADIO LESS 8SPEAKER

main86120-21100iAGT20..CHI201306-201405

PANASONIC,ID=528CG

86120AKNOB, RADIO RECEIVER SWITCH

main90010-24140iAGT20201008-201306

main90010-24149iAGT20..CHI201306-201405

86183DCOVER, AUDIO AMPLIFIER

main86183-21010iAGT20201008-201607

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-53040iAGT20..CHI201306-201405

86211BRACKET, RADIO, NO.1

main86211-21050iAGT20..GCC,GEN201008-201607

main86211-21060iAGT20..CHI201306-201405

86212BRACKET, RADIO, NO.2

main86212-21050iAGT20201008-201607

main86212-21060iAGT20..CHI201306-201405

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-21030iAGT20201008-201607

9010508158

main90105-08158

9015350010

main90153-50010

9046710183

main90467-10183

9167180616

main91671-80616

11 parts on this diagram · 2 diagrams in section
