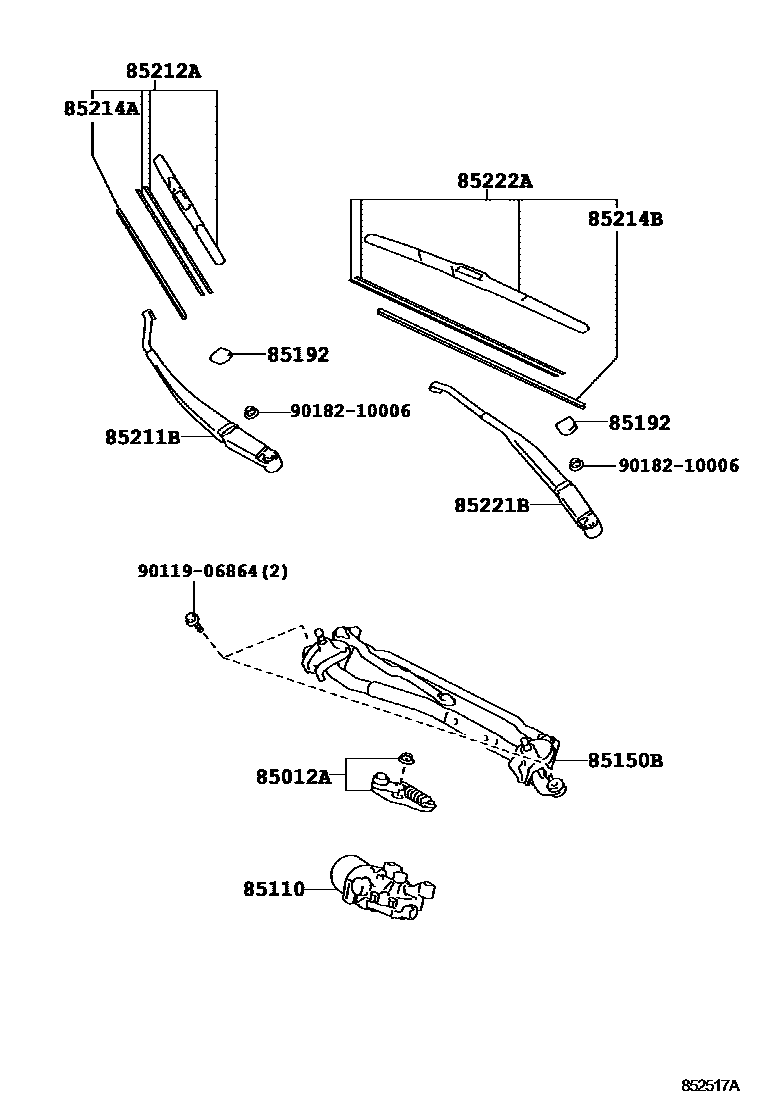

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iAGT20201008-201607

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47200iAGT20201008-201607

85150BLINK ASSY, WIPER

main85150-21080iAGT20201008-201607

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iAGT20201008-201607

85211BARM, FRONT WIPER, RH

main85211-21050iAGT20201008-201607

85212ABLADE, FR WIPER, RH

main85212-33260iAGT20201305-201607

main85212-74010iAGT20201008-201306

85214ARUBBER, WIPER, RH

main85214-30400iAGT20201008-201306

sub85214-33180

main85214-33180iAGT20201305-201607

85214BRUBBER, WIPER, LH

main85214-30380iAGT20201008-201607

85221BARM, FRONT WIPER, LH

main85221-21050iAGT20201008-201607

85222ABLADE, FR WIPER, LH

main85222-21030iAGT20201305-201607

main85222-33241iAGT20201008-201306

9011906864

main90119-06864

9018210006

main90182-10006

12 parts on this diagram · 1 diagram in section
