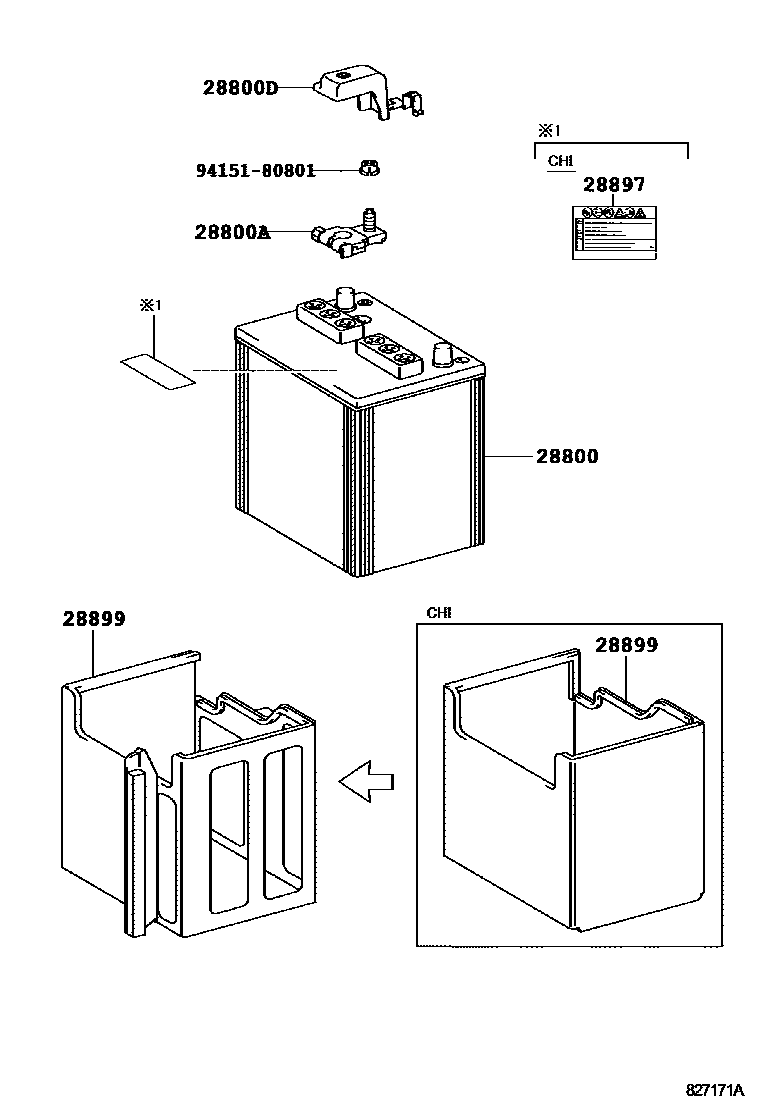

BATTERY & BATTERY CABLE

28800BATTERY

main28800-17121i2ARFE..AGT20..CHI201102-201204

80D26L,FURUKAWA

sub28800-38080

main28800-28210i2ARFE..AGT20..CHI201204-201405

80D26L,PANASONIC

sub28800-28211

main28800-42041i2ARFE..AGT20..GCC,GEN201008-201607

55D23L,YUASA

sub28800-31260

main28800-42061i2ARFE..AGT20..GCC,GEN201008-201204

55D23L,FURUKAWA

sub28800-42062

main28800-42062i2ARFE..AGT20..GCC,GEN201205-201607

55D23L,FURUKAWA

sub28800-42063

main28800-54020i2ARFE..AGT20..CHI201102-201405

80D26L,GS YUASA

sub28800-67102

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ARFE..AGT20201008-201607

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2ARFE..AGT20201008-201607

28897PLATE, BATTERY CAUTION

main28897-31010i2ARFE..AGT20..CHI201102-201405

sub28897-38060

28899INSULATOR, BATTERY

main28899-28100i2ARFE..AGT20..CHI201102-201405

main28899-36010i2ARFE..AGT20..GCC,GEN201008-201607

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
