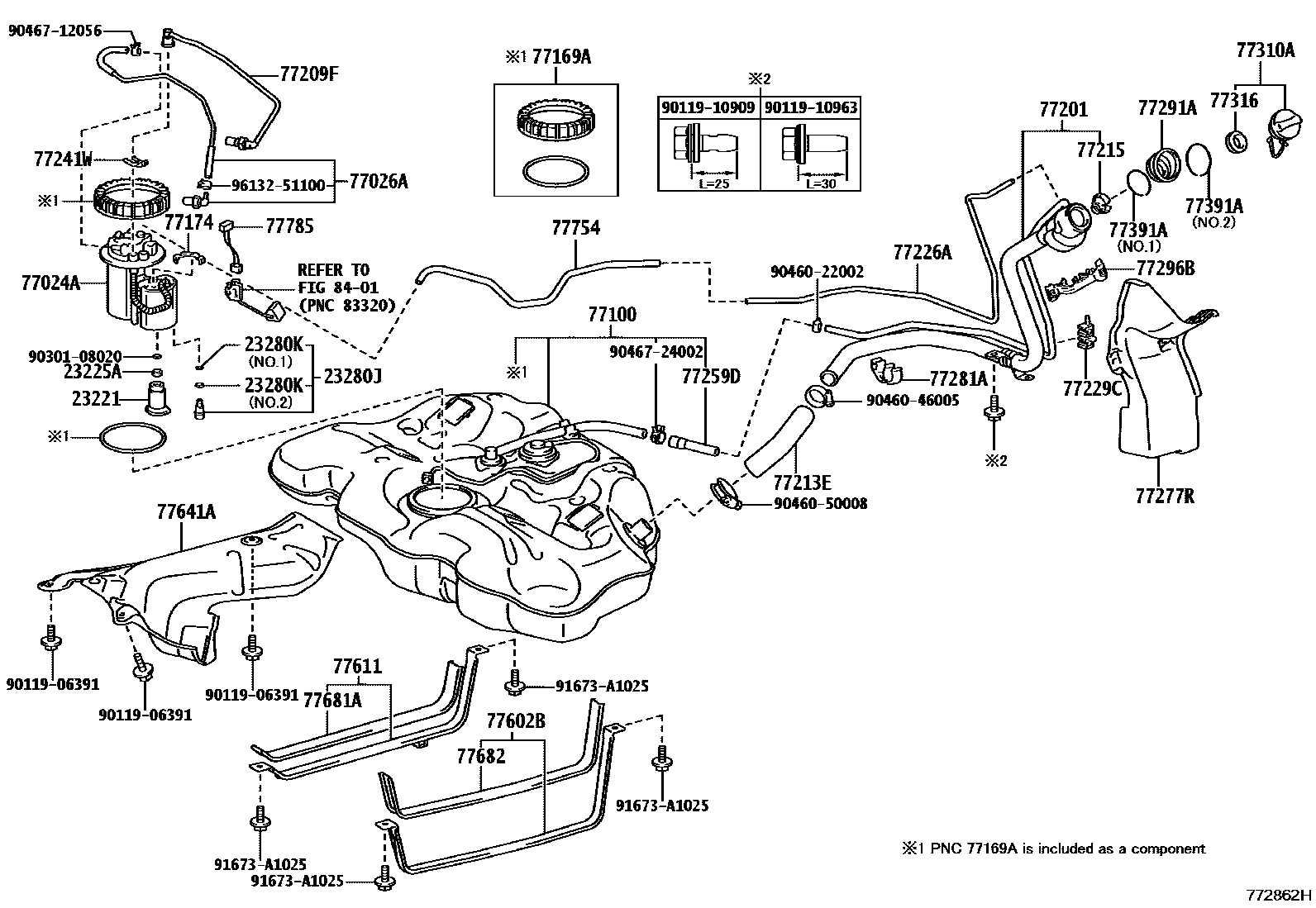

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100TANK ASSY, FUEL
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201PIPE SUB-ASSY, FUEL TANK INLET
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77215PLATE, FUEL TANK FILLER PIPE FLANGE
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77259DHOSE, FUEL, NO.1
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281ACLAMP, FUEL FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77641APROTECTOR, FUEL TANK, NO.1
77681ASEAT, FUEL TANK BAND
77682SEAT, FUEL TANK BAND, LH
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
8401
9011906391
main90119-06391
9011910909
main90119-10909
9011910963
main90119-10963
9030108020
main90301-08020
9046022002
main90460-22002
9046046005
main90460-46005
9046050008
main90460-50008
9046712056
main90467-12056
9046724002
main90467-24002
91673A1025
main91673-A1025
9613251100
main96132-51100
43 parts on this diagram · 3 diagrams in section
