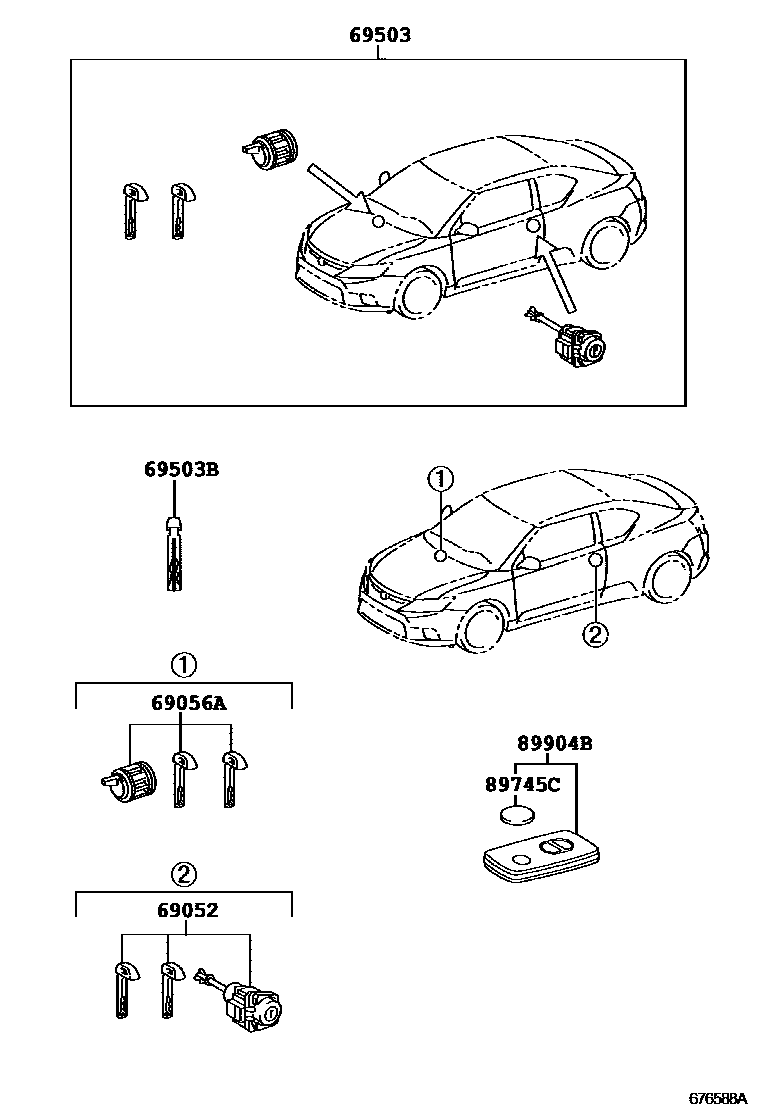

LOCK CYLINDER SET

0001 1WITH(SMART ENTRY) 0003 1WITH(SMART ENTRY) 0004 1WITHOUT(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-21130iAGT20..GCC,GEN201008-201305

main69052-21150iAGT20..GCC,GEN201102-201607

main69052-21160iAGT20..CHI201205-201405

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-28080iAGT20..CHI201205-201405

main69056-33200iAGT20..CHI201102-201607

main69056-42100iAGT20..GCC,GEN201008-201305

69503CYLINDER SET, LOCK

main69005-21250iAGT20..CHI201205-201405

main69005-21280iAGT20..GCC,GEN201008-201305

main69005-21300iAGT20..CHI201102-201607

69503BKEY, CUT

main69515-12310iAGT20..CHI201205-201405

MASTER KEY,W(*68)

main69515-52110iAGT20..CHI201102-201607

MASTER KEY,W(*68)

89745CBATTERY, TRANSMITTER

main89745-45010iAGT20..CHI201205-201405

sub89745-50020

main89745-52020iAGT20..CHI201102-201205

main89745-52030iAGT20..GCC,GEN201305-201607

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-21022iAGT20..GCC,GEN201305-201607

main89904-21030iAGT20..CHI201205-201405

main89904-21050iAGT20..CHI201102-201205

sub89904-21051

main89904-21080iAGT20..CHI201106-201107

sub89904-21081

6 parts on this diagram · 3 diagrams in section
