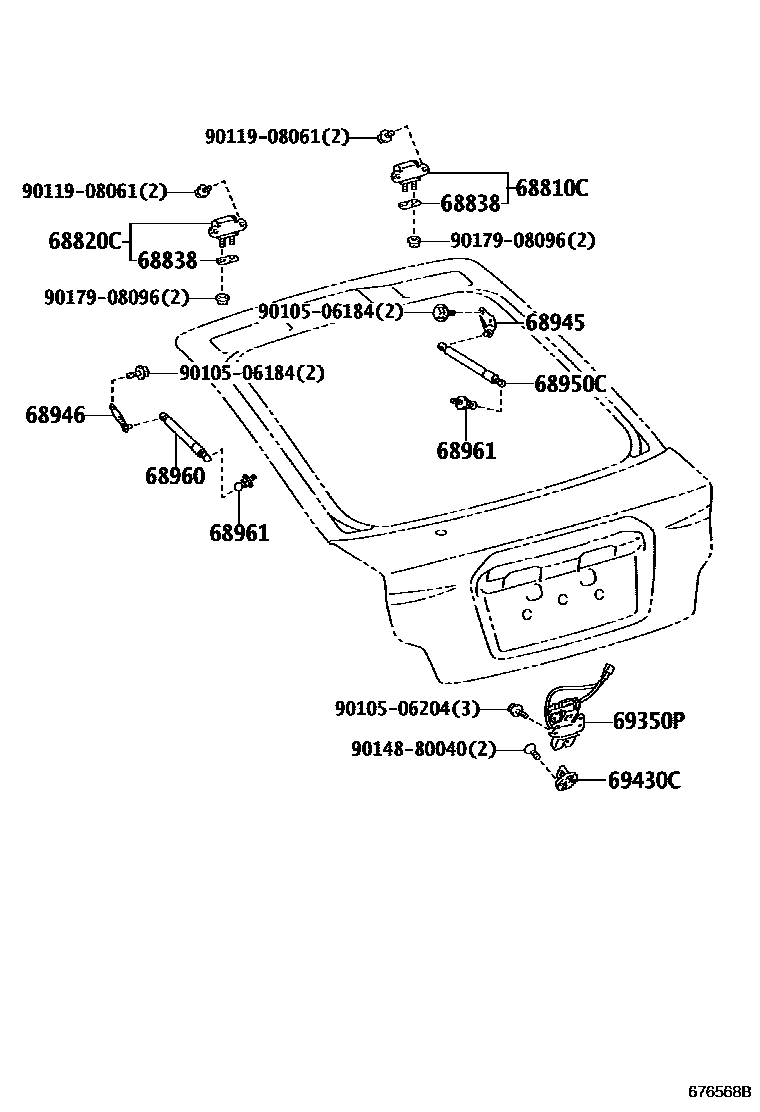

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21060iAGT20201008-201602

PAD T=1.0

sub68810-21061

main68810-21061iAGT20201603-201607

PAD T=1.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-21060iAGT20201008-201602

PAD T=1.0

sub68810-21061

main68810-21061iAGT20201603-201607

PAD T=1.0

68838PAD, BACK DOOR HINGE, NO.1

main68838-21030iAGT20201108-201505

T=0.5

main68838-32010iAGT20201008-201607

T=2.0

main68838-44020iAGT20201008-201607

T=1.0

main68838-52020iAGT20201008-201607

T=1.6

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-21040iAGT20201008-201607

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-21040iAGT20201008-201607

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W610iAGT20..GCC,GEN201008-201201

sub68950-0W611

main68950-0W611iAGT20..GCC,GEN201202-201305

main68950-0W630iAGT20..CHI201102-201201

sub68950-0W631

main68950-0W631iAGT20201202-201607

68960STAY ASSY, BACK DOOR, LH

main68960-0W590iAGT20..GCC,GEN201008-201201

sub68960-0W591

main68960-0W591iAGT20..GCC,GEN201202-201305

main68960-0W610iAGT20..CHI201102-201201

sub68960-0W611

main68960-0W611iAGT20201202-201607

68961BOLT, BACK DOOR STAY

main68961-20140iAGT20201008-201607

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-21120iAGT20201008-201604

sub69350-21121

main69350-21121iAGT20201605-201607

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-20160iAGT20201008-201407

main69431-12030iAGT20201408-201607

9010506184

main90105-06184

9010506204

main90105-06204

9011908061

main90119-08061

9014880040

main90148-80040

9017908096

main90179-08096

15 parts on this diagram · 1 diagram in section
