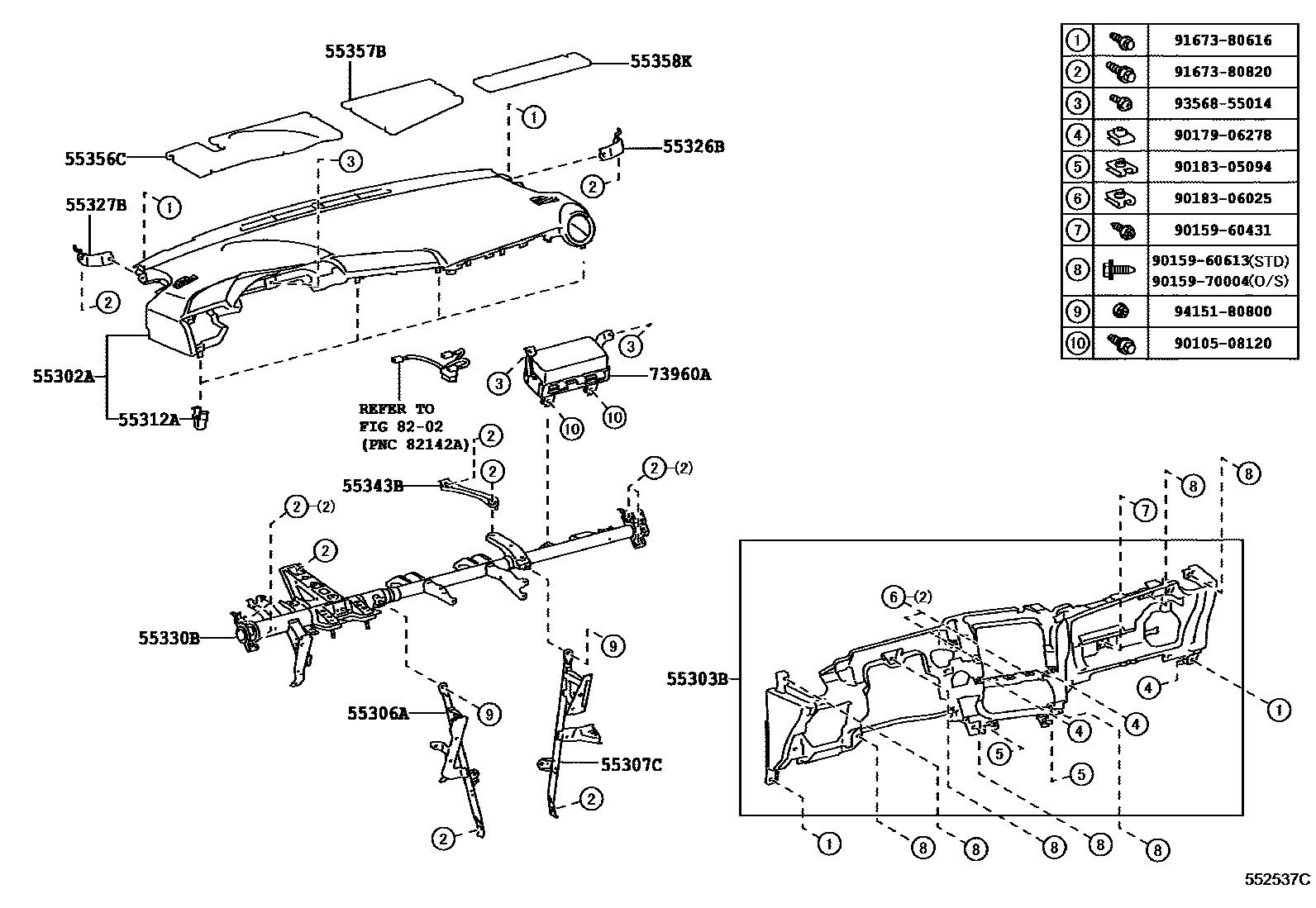

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-21030-B0iAGT20201008-201607

DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-21030-B0iAGT20201008-201607

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-21040iAGT20201008-201607

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-21030iAGT20201008-201607

55312ACLIP, INSTRUMENT PANEL

main90467-10203iAGT20201008-201607

55326BSTAY, INSTRUMENT PANEL, RH

main55326-21010iAGT20201008-201607

55327BSTAY, INSTRUMENT PANEL, LH

main55327-21020iAGT20201008-201607

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-21070iAGT20201008-201209

sub55330-21071

main55330-21071iAGT20201210-201306

main55330-21072iAGT20201305-201607

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-20080iAGT20201008-201607

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-21010iAGT20201008-201607

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-21020iAGT20201008-201607

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-21010iAGT20201008-201607

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-21040iAGT20201008-201607

8202

9010508120

main90105-08120

9015960431

main90159-60431

9015960613

main90159-60613

9015970004

main90159-70004

9017906278

main90179-06278

9018305094

main90183-05094

9018306025

main90183-06025

9167380616

main91673-80616

9167380820

main91673-80820

9356855014

main93568-55014

9415180800

main94151-80800

25 parts on this diagram · 4 diagrams in section
