FLOOR SIDE MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-12020iAGT20201008-201306

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-12020iAGT20201008-201306

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080iAGT20201008-201306

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080iAGT20201008-201306

51963FHOOK, TRANSPORT

main51963-12250iAGT20201008-201306

51964FHOOK, TRANSPORT, LH

main51964-12040iAGT20201008-201306

51967EHOOK, TRANSPORT, REAR RH

main51967-21010iAGT20201008-201207

main51968-12180iAGT20201207-201306

5201

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110iAGT20201008-201306

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070iAGT20201008-201306

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-12010iAGT20201405-201607

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-12020iAGT20201405-201607

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-12010iAGT20201008-201306

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-12020iAGT20201008-201306

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010iAGT20201008-201306

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010iAGT20201008-201306

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-12010iAGT20201008-201306

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-12010iAGT20201008-201306

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160iAGT20201008-201306

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150iAGT20201008-201306

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-12120iAGT20201008-201306

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-12140iAGT20201008-201306

57111DMEMBER, FRONT SIDE, INNER RH

main57111-12230iAGT20201008-201306

57112EMEMBER, FRONT SIDE, INNER LH

main57112-12190iAGT20201008-201306

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220iAGT20201008-201306

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12190iAGT20201008-201306

main57114-12191iAGT20201407-201607

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12090iAGT20201008-201306

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12090iAGT20201008-201306

main57116-12091iAGT20201401-201405

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-12030iAGT20201008-201306

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-12010iAGT20201008-201306

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-12070iAGT20201008-201306

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-12060iAGT20201008-201306

57197BOX, TORQUE, FRONT RH

main57197-12040iAGT20201008-201306

57198BOX, TORQUE, FRONT LH

main57198-12040iAGT20201008-201306

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-47050iAGT20201008-201306

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-47070iAGT20201008-201306

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-21240iAGT20201008-201306

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-21280iAGT20201008-201306

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-21020iAGT20201008-201306

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-21020iAGT20201008-201306

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12260iAGT20201008-201306

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-21110iAGT20201008-201306

5801

5329212020SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-12020

9011906391

main90119-06391

9033325003

main90333-25003

9046706082

main90467-06082

91553L1025

main91553-L1025

91631B0614

main91631-B0614

91645C1232

main91645-C1232

9167180616

main91671-80616

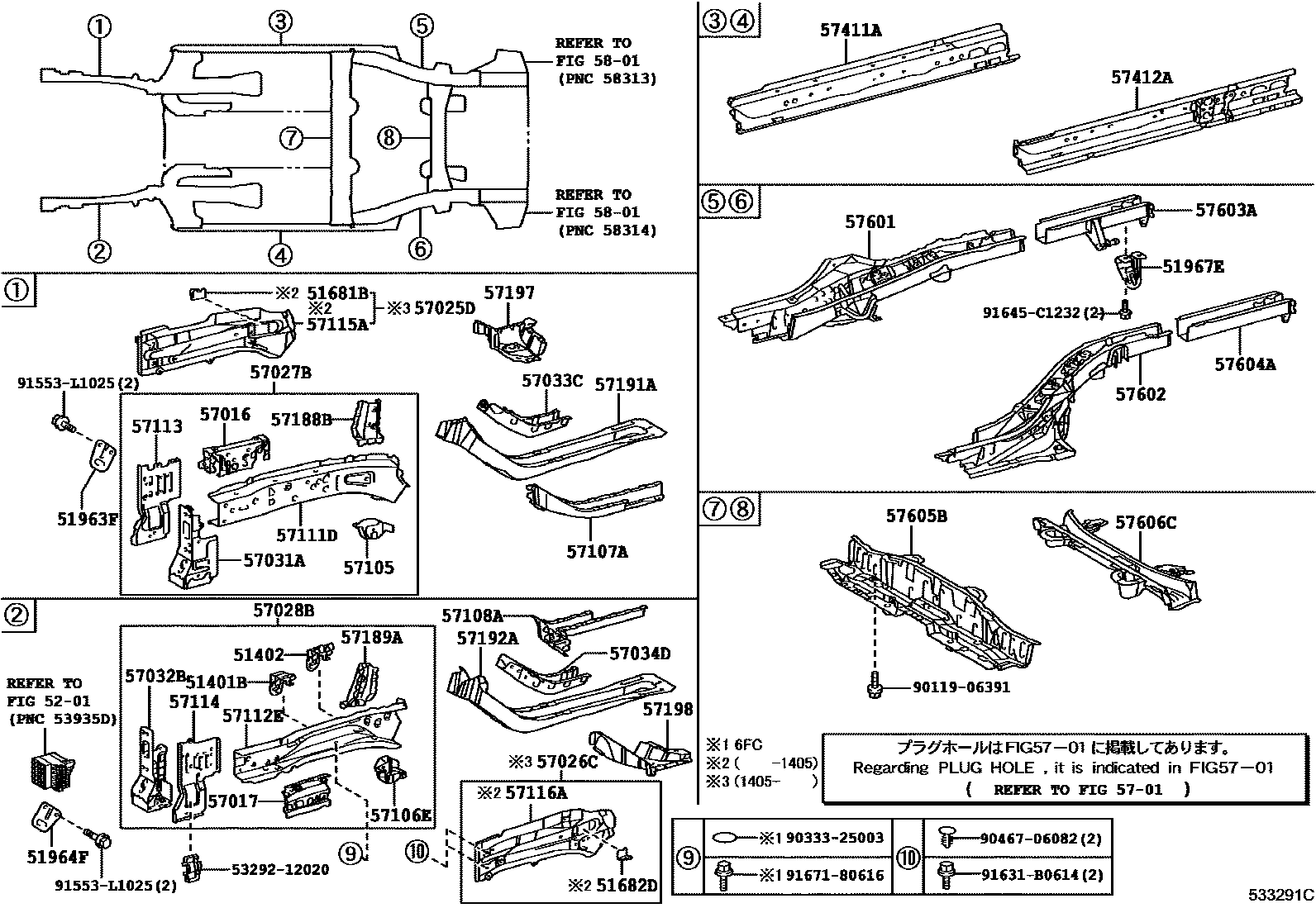

52 parts on this diagram · 1 diagram in section
