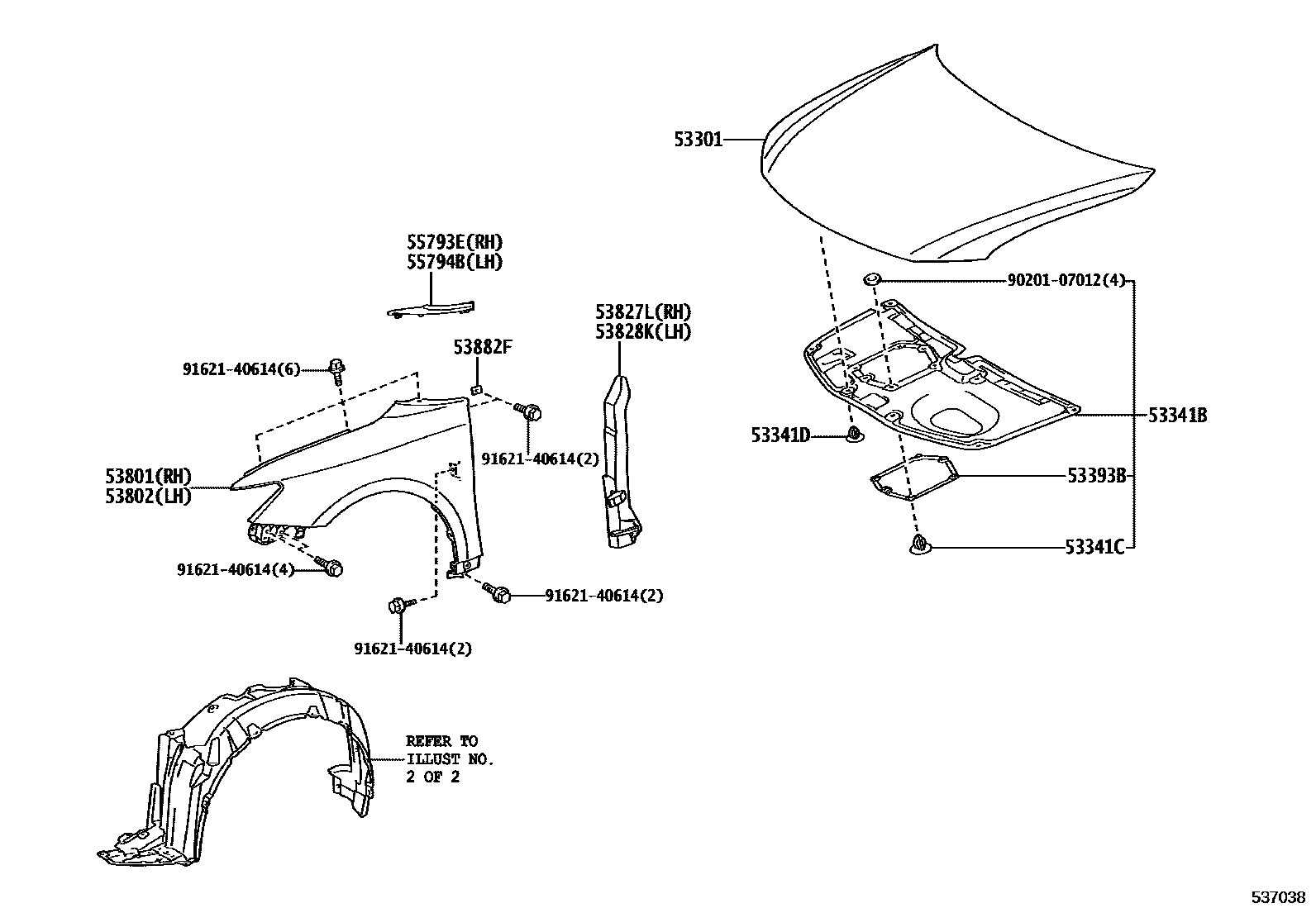

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-21080iAGT20201008-201306

sub53301-21090

main53301-21100iAGT20201305-201607

sub53301-21110

53341BINSULATOR, HOOD

main53341-21060iAGT20¥9,200201008-201607

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iAGT20¥120201008-201607

53341DCLIP(FOR HOOD INSULATER)

main90467-09050iAGT20¥120201008-201607

53393BPROTECTOR, HOOD, FRONT

main53393-21010iAGT20201008-201607

53801FENDER SUB-ASSY, FRONT RH

main53811-21140iAGT20201008-201607

53802FENDER SUB-ASSY, FRONT LH

main53812-21160iAGT20201008-201607

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-21040iAGT20201008-201607

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-21040iAGT20201008-201607

53882FSEAL, FRONT FENDER

main53882-16030iAGT20¥60201008-201607

55793ECOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-21030iAGT20¥1,120201008-201607

55794BCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-21030iAGT20¥1,120201008-201607

9020107012

main90201-07012¥100

9162140614

main91621-40614¥80

14 parts on this diagram · 2 diagrams in section
