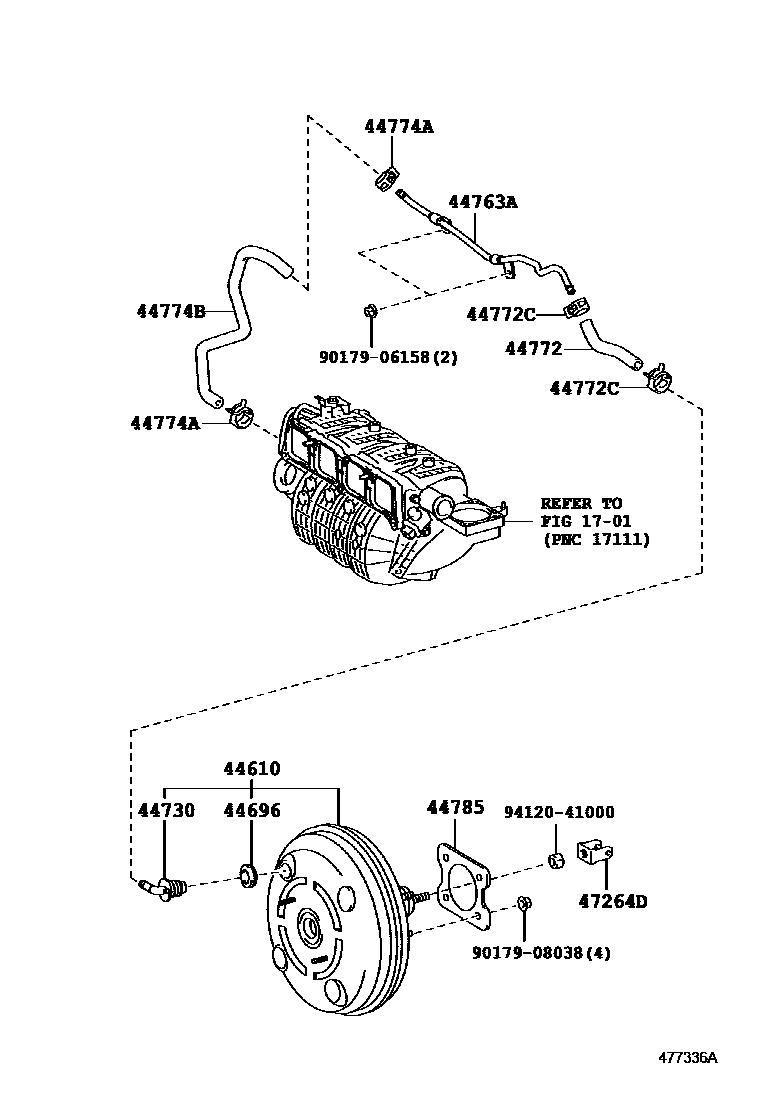

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-21170iAGT20201008-201306

sub44610-21180

main44610-21180iAGT20201305-201607

44696GROMMET, CHECK VALVE

main90480-24439iAGT20201008-201607

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iAGT20201008-201607

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12520iAGT20201008-201607

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12580iAGT20201008-201209

main44772-12581iAGT20201209-201607

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90467-16014iAGT20201109-201607

main96133-41500iAGT20201008-201108

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iAGT20201008-201607

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-21020iAGT20201008-201607

44785GASKET, BRAKE BOOSTER

main44785-12040iAGT20201008-201607

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63020iAGT20201008-201011

main47264-68010iAGT20201012-201607

9017906158

main90179-06158

9017908038

main90179-08038

9412041000

main94120-41000

14 parts on this diagram · 1 diagram in section
