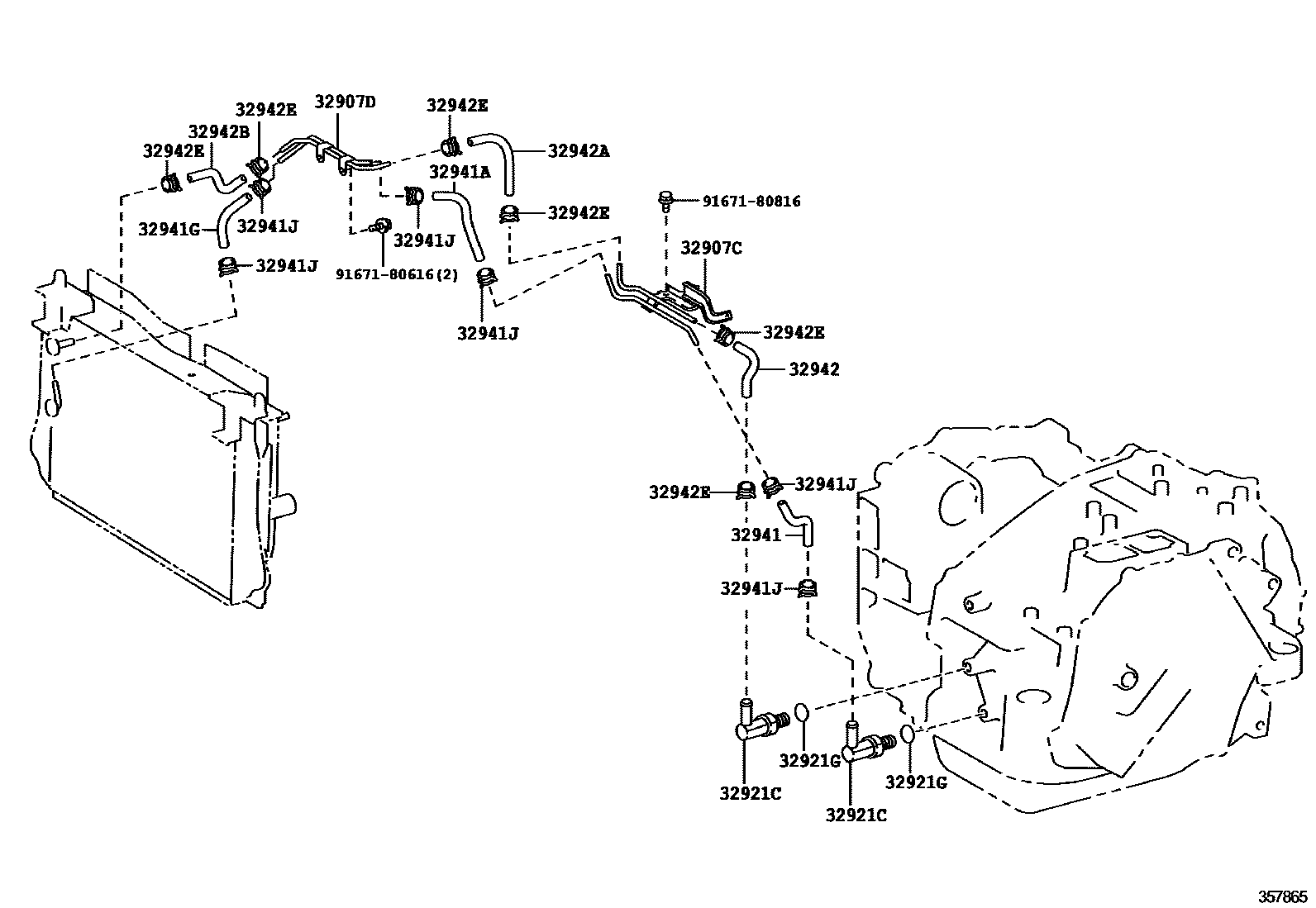

OIL COOLER & TUBE (ATM)

0001 1U760E 0002 1U760E W(AIR-COOLED OIL COOLER

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-21010iAGT20201008-201607

32907DTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2

main32907-21020iAGT20..6FC..GEN201008-201405

main32907-21030iAGT20..6FC..GEN201008-201405

CHILE SPEC

main32907-21030iAGT20..6FC..(CHI,GCC)201010-201607

32921CUNION(FOR OIL COOLER TUBE)

main90407-14032iAGT20..6FC201008-201607

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006iAGT20..6FC201008-201108

main90301-11031iAGT20..6FC201108-201607

32941HOSE, OIL COOLER INLET, NO.1

main32943-21060iAGT20..6FC201008-201607

32941AHOSE, OIL COOLER INLET, NO.2

main32943-21150iAGT20..6FC201008-201607

32941GHOSE, OIL COOLER INLET, NO.3

main90445-17069iAGT20..6FC..GEN201008-201405

main90445-17100iAGT20..6FC..GEN201008-201405

CHILE SPEC

main90445-17100iAGT20..6FC..(CHI,GCC)201010-201607

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAGT20201008-201607

32942HOSE, OIL COOLER OUTLET, NO.1

main32943-21050iAGT20..6FC201008-201607

32942AHOSE, OIL COOLER OUTLET, NO.2

main32943-21160iAGT20..6FC201008-201607

32942BHOSE, OIL COOLER OUTLET, NO.3

main32943-21090iAGT20..6FC..GEN201008-201405

main32943-21110iAGT20..6FC..(CHI,GCC)201010-201607

main32943-21110iAGT20..GEN201008-201405

CHILE SPEC

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iAGT20201008-201607

9167180616

main91671-80616

9167180816

main91671-80816

14 parts on this diagram · 2 diagrams in section
