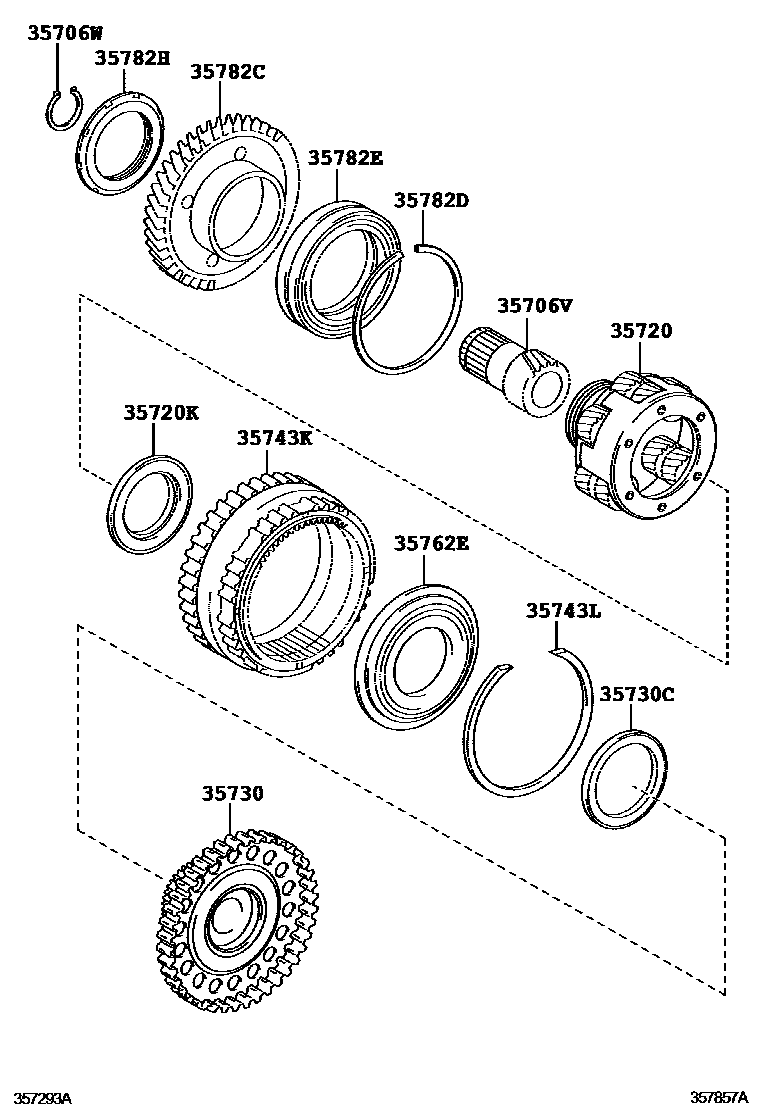

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-73010iAGT20¥9,300201008-201607

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iAGT20..6FC¥60201008-201607

35720GEAR ASSY, FRONT PLANETARY

main35720-33050iAGT20..6FC201008-201306

sub35720-33070¥39,200

main35720-33050iAGT20201305-201404

*349

sub35720-33070¥39,200

main35720-33070iAGT20¥39,200201404-201607

main35720-73010iAGT20201305-201310

*335

sub35720-73020

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62004iAGT20201008-201408

sub90374-62011¥1,200

main90374-62011iAGT20¥1,200201408-201607

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33030iAGT20..6FC¥9,300201008-201306

main35730-33030iAGT20¥9,300201305-201607

*349

main35730-73010iAGT20¥11,300201305-201310

*335

sub35730-33030¥9,300

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iAGT20..6FC¥1,260201008-201607

35743KGEAR, PLANETARY RING

main35743-33040iAGT20..6FC¥33,300201008-201306

main35743-33040iAGT20¥33,300201305-201607

*349

main35743-73010iAGT20¥40,000201305-201310

*335

sub35743-33040¥33,300

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iAGT20¥140201008-201607

35762EFLANGE, PLANETARY RING GEAR

main35762-73010iAGT20¥1,020201008-201607

35782CGEAR, COUNTER DRIVE

main35782-33040iAGT20..6FC¥14,200201008-201306

main35782-33040iAGT20¥14,200201305-201607

*349

main35782-73010iAGT20201305-201310

*335

sub35782-33040¥14,200

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99110iAGT20..6FC¥220201008-201402

main90520-99154iAGT20¥140201402-201607

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72001iAGT20..6FC¥6,800201008-201402

sub90369-72002¥6,800

main90369-72002iAGT20¥6,800201402-201607

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iAGT20..6FC¥330201008-201607

13 parts on this diagram · 1 diagram in section
