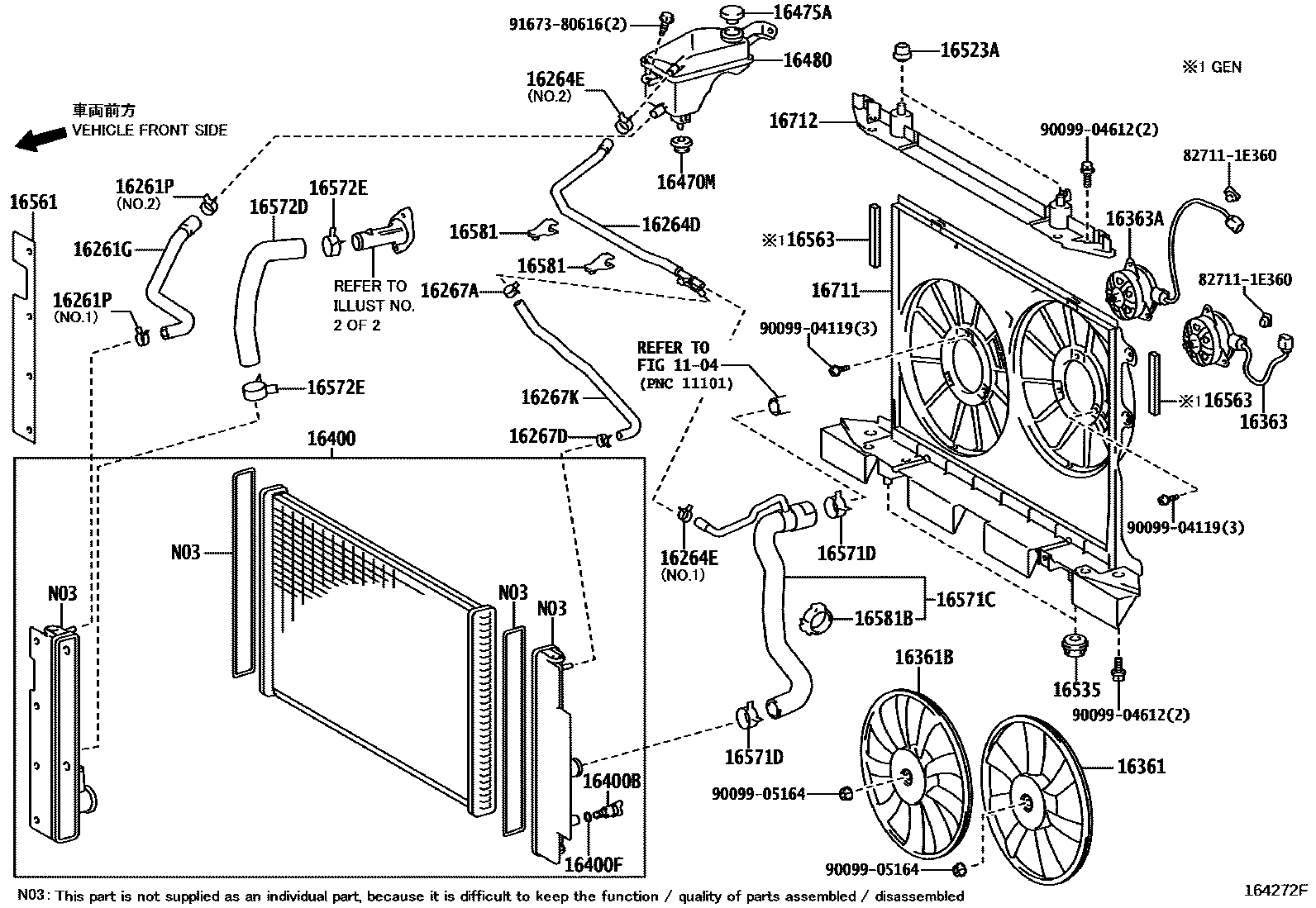

RADIATOR & WATER OUTLET
1104
16261HOSE, WATER BY-PASS
16261GHOSE, WATER BY-PASS, NO.1
CHILE SPEC
16261PCLIP(FOR WATER BY-PASS HOSE NO.2)
NO.1
NO.2
NO.1
NO.2
16264HOSE, WATER BY-PASS, NO.2
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
NO.1
NO.2
NO.1
NO.2
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267DCLIP(FOR WATER BY-PASS HOSE NO.4)
16267KHOSE, WATER BY-PASS, NO.3
CHILE SPEC
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470MGROMMET
16480RESERVE TANK ASSY, RADIATOR W/O CAP
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
CHILE SPEC
16561SEAL, RADIATOR TO SUPPORT, NO.1
CHILE SPEC
16563SEAL, RADIATOR TO SUPPORT, NO.3
16571CHOSE, RADIATOR, NO.1
CHILE SPEC
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
CHILE SPEC
16572ECLIP, RADIATOR HOSE, NO.2
16581CLAMP, HOSE(FOR WATER HOSE)
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16711SHROUD, FAN
CHILE SPEC
16712SHROUD, FAN, NO.2
CHILE SPEC
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009904119
main90099-04119
9009904612
main90099-04612
9009905164
main90099-05164
9167380616
main91673-80616
37 parts on this diagram · 4 diagrams in section
