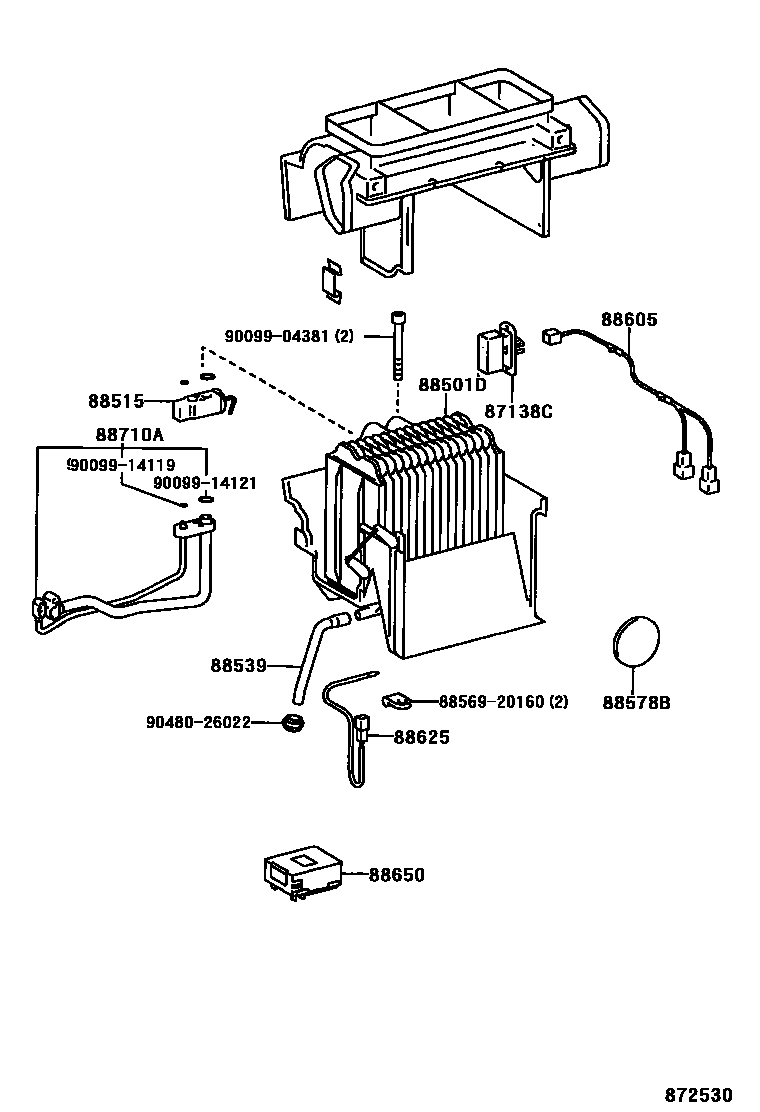

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87138CRESISTOR, BLOWER

main87138-20240iST191..JPP199211-199601

sub87138-20320

88501DEVAPORATOR SUB-ASSY, COOLER, NO.2

main88501-20290iST191..JPP199211-199411

main88501-20291iST191..JPP199411-199601

88515VALVE, COOLER EXPANSION

main88515-20100iST191..JPP199211-199601

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20270iST191..JPP199311-199601

88578BPACKING, COOLING UNIT, NO.1

main88578-20490iST191..JPP199211-199601

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-2D180iST191..JPP199211-199601

88625THERMISTOR, COOLER, NO.1

main88625-20390iST191..JPP199211-199601

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-2B210iST191..JPP199211-199601

88710ATUBE ASSY, AIR CONDITIONER

main88710-20210iST191..JPP199211-199601

MAKER OPTION

main88710-20380iST191..JPP199211-199305

DEALER OPTION

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9048026022

main90480-26022

14 parts on this diagram · 2 diagrams in section
