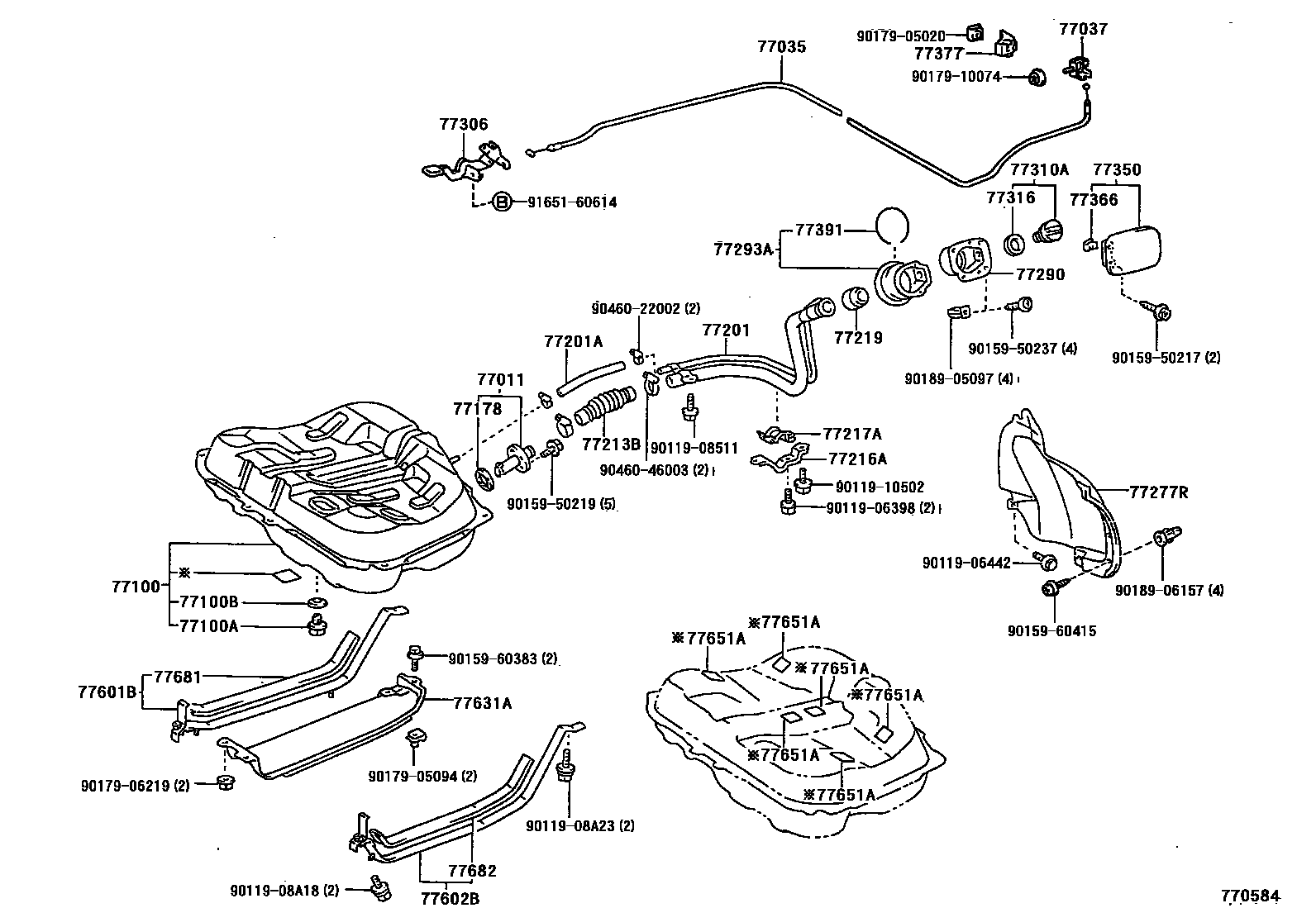

FUEL TANK & TUBE

0001 1 0002 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10050iST191..JPP199211-199601

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-21020iST191..JPP199211-199601

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-20070iST191..JPP199211-199305

77100TANK ASSY, FUEL

main77001-29295iST191..JPP199211-199409

main77001-29296iST191..JPP199409-199601

77100APLUG(FOR FUEL TANK)

main90105-12116iST191..JPP199301-199601

main90341-20004iST191..JPP199211-199301

77100BGASKET(FOR FUEL TANK)

main90430-12245iST191..JPP199301-199601

main90430-20007iST191..JPP199211-199301

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iST191..JPP199211-199601

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20390iST191..JPP199211-199601

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22024iST191..JPP199211-199601

L=220

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-18010iST191..JPP199211-199601

L=230

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-20100iST191..JPP199211-199402

main77216-20170iST191..JPP199402-199601

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-20050iST191..JPP199402-199601

main77217-32030iST191..JPP199211-199402

77219COVER, FUEL TANK FILLER PIPE

main77219-32030×2iST191..JPP199211-199601

TYPE A

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-20210iST191..JPP199211-199305

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20140iST191..JPP199211-199305

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20090iST191..JPP199211-199305

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-14010iST191..JPP199211-199601

77310ACAP ASSY, FUEL TANK

main77310-16011iST191..JPP199211-199601

sub77310-12140

77316GASKET, FUEL TANK CAP

main77316-16010iST191..JPP199211-199601

77350LID ASSY, FUEL FILLER OPENING

main77350-20210iST191..JPP199211-199306

sub90179-05020

main77350-21020iST191..JPP199306-199601

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-20030iST191..JPP199306-199601

main77366-12030iST191..JPP199211-199305

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20060iST191..JPP199306-199601

77391RING, FUEL INLET BOX

main77391-20020iST191..JPP199211-199305

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-20090iST191..JPP199211-199601

sub77601-20220

sub90269-03067

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-20140iST191..JPP199211-199601

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-20070iST191..JPP199211-199601

sub77631-20090

77651ACUSHION, FUEL TANK, NO.1

main77651-21020×6iST191..JPP199211-199309

50 X 50

main77651-32050×6iST191..JPP199211-199601

60 X 60

77681SEAT, FUEL TANK BAND, RH

main77681-32040iST191..JPP199211-199305

main77681-32060iST191..JPP199411-199601

main77681-32070iST191..JPP199305-199411

77682SEAT, FUEL TANK BAND, LH

main77681-32040iST191..JPP199211-199411

main77681-32060iST191..JPP199411-199601

9011906398

main90119-06398

9011906442

main90119-06442

9011908511

main90119-08511

9011908A18

main90119-08A18

9011908A23

main90119-08A23

9011910502

main90119-10502

9015950217

main90159-50217

9015950219

main90159-50219

9015950237

main90159-50237

9015960383

main90159-60383

9015960415

main90159-60415

9017905020

main90179-05020

9017905094

main90179-05094

9017906219

main90179-06219

9017910074

main90179-10074

9018905097

main90189-05097

9018906157

main90189-06157

9046022002

main90460-22002

9046046003

main90460-46003

9165160614

main91651-60614

49 parts on this diagram · 2 diagrams in section
