BATTERY CARRIER

74403ACARRIER SUB-ASSY, BATTERY

main74403-20030iST191..JPP199211-199401

main74403-20060iST191..JPP199211-199401

W(32C24L)

74404ACLAMP SUB-ASSY, BATTERY

main74404-20420iST191..JPP199211-199601

main74404-20450iST191..JPP199211-199411

W(32C24L)

74431TRAY, BATTERY

main74431-20080iST191..JPP199211-199601

sub74431-14050

main74431-20090iST191..JPP199211-199601

W(32C24L)

74451BBOLT, BATTERY CLAMP

main74451-20091iST191..JPP199401-199411

W(32C24L),FR

main74451-20100iST191..JPP199211-199305

main74451-20100iST191..JPP199305-199601

RR

main74451-20111iST191..JPP199401-199601

FR

9017906223

main90179-06223

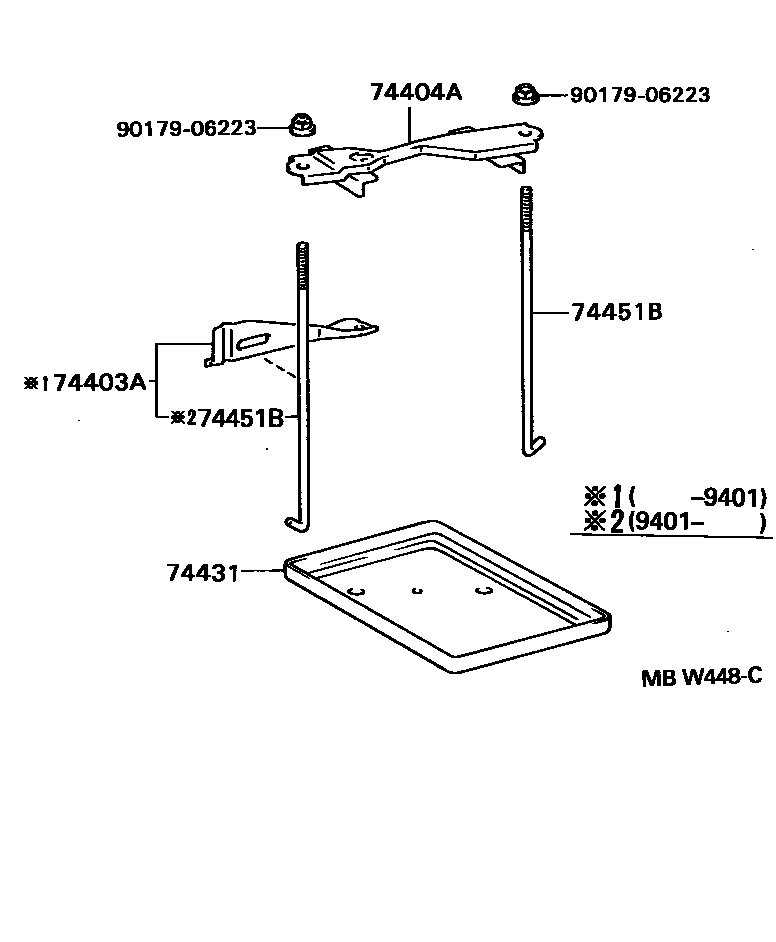

5 parts on this diagram · 1 diagram in section
