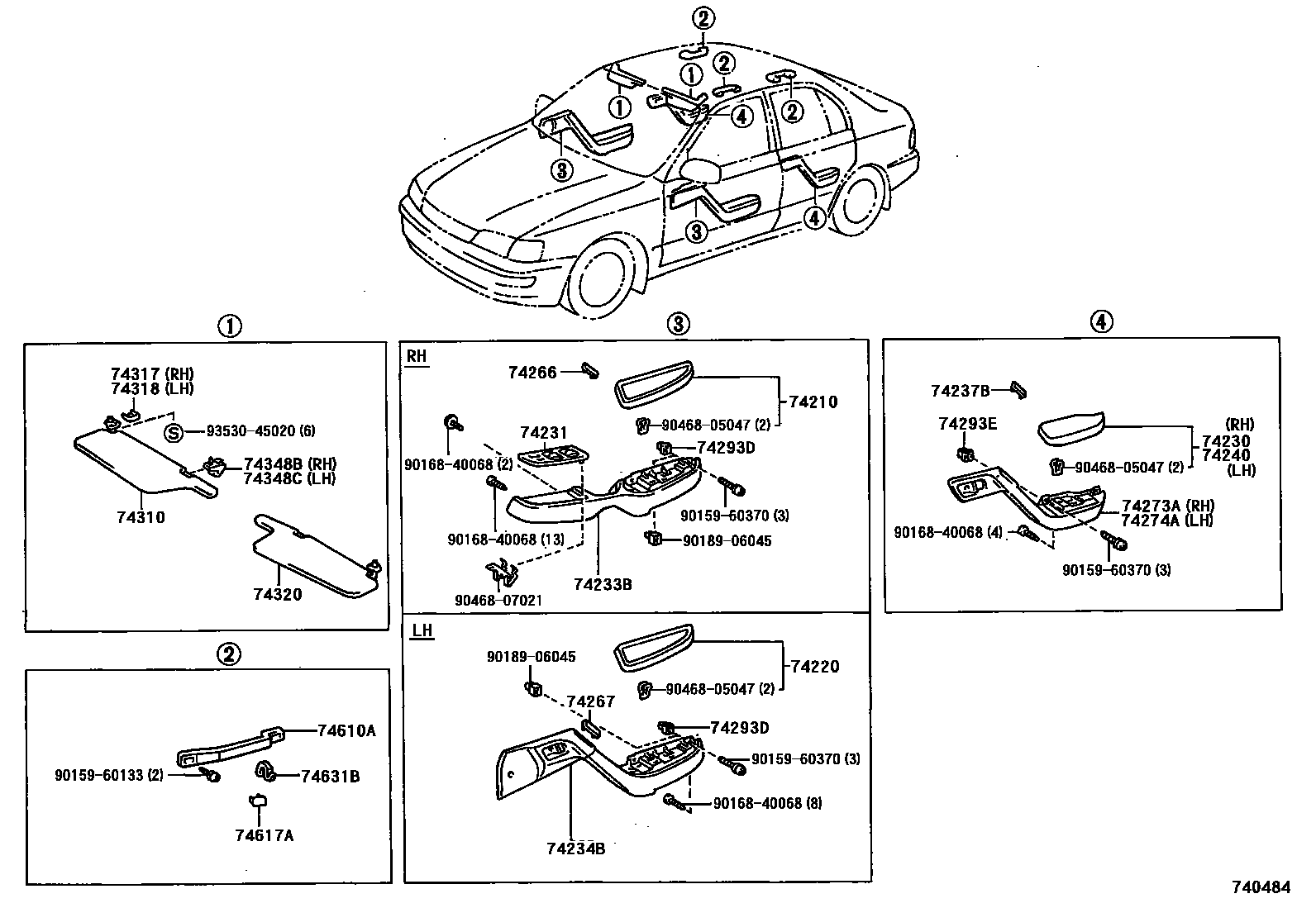

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
74220ARMREST ASSY, FRONT, LH
74230ARMREST ASSY, REAR, RH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK.BLUE,TRIM8#
74231PANEL, FRONT ARMREST BASE, UPPER RH
BLACK,TRIM2#,8#
BLACK,TRIM1#,8#
74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH
74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH
74237BCAP, DOOR ARMREST BASE
74240ARMREST ASSY, REAR, LH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK.BLUE,TRIM8#
74266CAP, DOOR ARMREST, RH
74267CAP, DOOR ARMREST, LH
74273APANEL, REAR DOOR ARMREST BASE, LOWER RH
74274APANEL, REAR DOOR ARMREST BASE, LOWER LH
74293DPLATE, FRONT DOOR ARMREST, NO.1
74293EPLATE, REAR DOOR ARMREST, NO.1
74310VISOR ASSY, RH
GRAY,TRIM2#,8#
GRAY,TRIM1#,8#
74317COVER, VISOR BRACKET, RH
74318COVER, VISOR BRACKET, LH
74320VISOR ASSY, LH
74348BHOLDER, VISOR, RH
74348CHOLDER, VISOR, LH
74610AGRIP SUB-ASSY, ASSIST
74617APLUG, ASSIST GRIP
74631BHOOK, COAT
9015960133
9015960370
9016840068
9018906045
9046805047
9046807021
9353045020
30 parts on this diagram · 1 diagram in section
