REAR SEAT & SEAT TRACK

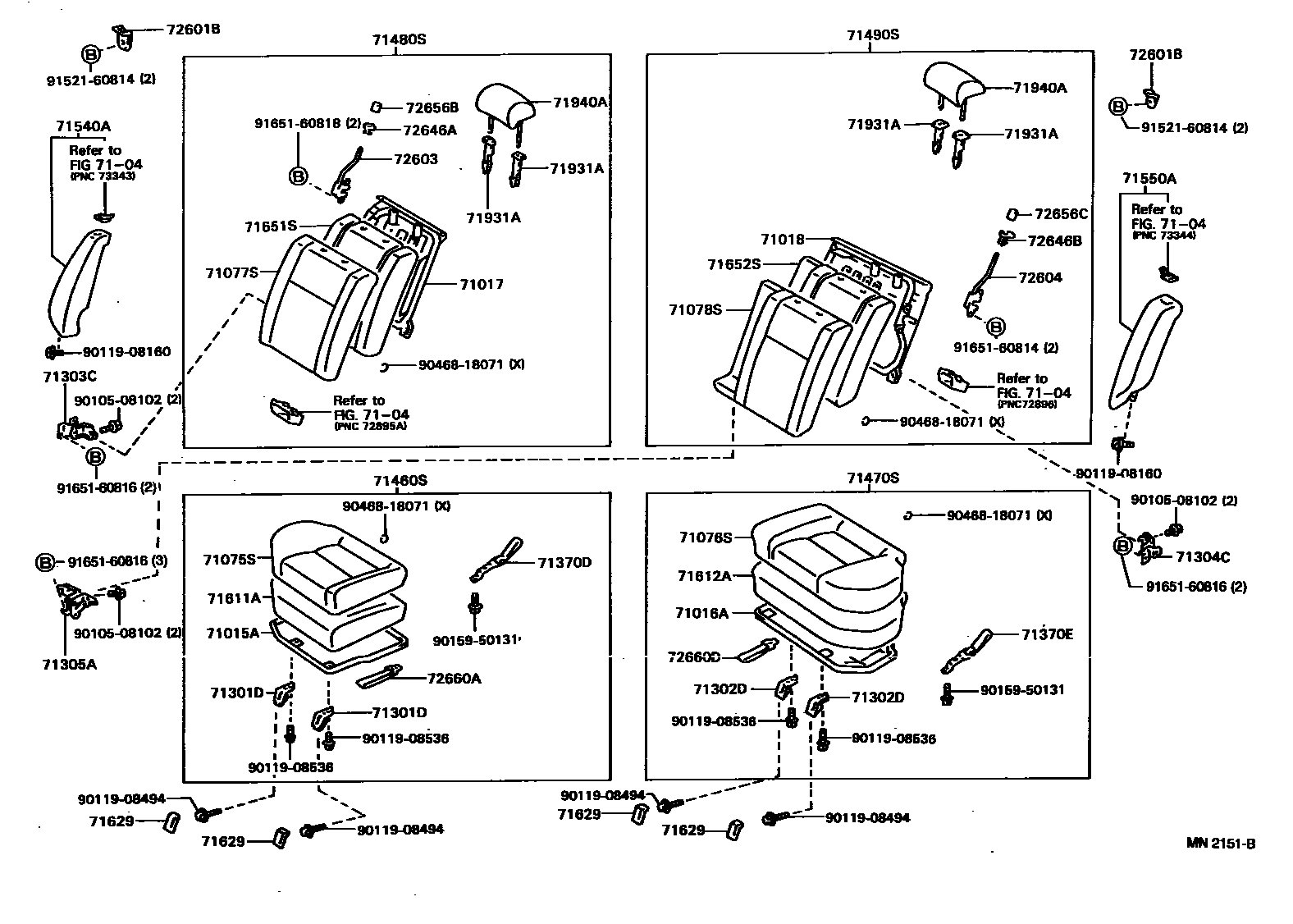

Parts diagram
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
main71015-20380i199211-199601
71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH
main71016-20050i199211-199601
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-20490i199211-199601
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-20170i199211-199601
7104
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71065-2B040-B0i199307-199402
GRAY,TRIM2#
sub71065-2B040
main71065-2B040-B2i199211-199303
GRAY,TRIM2#
sub71065-2B040
main71065-2B040-J2i199211-199303
DK.BLUE,TRIM8#
sub71065-2B040
main71065-2B040-J3i199305-199402
DK.BLUE,TRIM8#
sub71065-2B040
main71065-2B041-B3i199402-199601
SHADOW GRAY,TRIM1#
sub71065-2B041
main71065-2B041-J5i199402-199601
DK.BLUE,TRIM8#
sub71065-2B041
main71065-2B300-J2i199303-199305
DK.BLUE,TRIM8#
sub71065-2B040
sub71065-2B300
71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71076-20060-B0i199305-199402
GRAY,TRIM2#
sub71076-20060
main71076-20060-B2i199211-199305
GRAY,TRIM2#
sub71076-20060
main71076-20060-J2i199211-199303
DK.BLUE,TRIM8#
sub71076-20060
main71076-20060-J3i199305-199402
DK.BLUE,TRIM8#
sub71076-20060
main71076-20061-B3i199402-199601
SHADOW GRAY,TRIM1#
sub71076-20061
main71076-20061-J5i199402-199601
DK.BLUE,TRIM8#
sub71076-20061
main71076-20110-J2i199303-199305
DK.BLUE,TRIM8#
sub71076-20060
sub71076-20110
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-2G040-B0i199305-199402
GRAY,TRIM2#
sub71077-2G040
main71077-2G040-B1i199211-199305
GRAY,TRIM2#
sub71077-2G040
main71077-2G040-J1i199211-199303
DK.BLUE,TRIM8#
sub71077-2G040
main71077-2G040-J2i199305-199402
DK.BLUE,TRIM8#
sub71077-2G040
main71077-2G041-B2i199402-199601
SHADOW GRAY,TRIM1#
sub71077-2G041
main71077-2G041-J4i199402-199601
DK.BLUE,TRIM8#
sub71077-2G041
main71077-2G190-J2i199303-199305
DK.BLUE,TRIM8#
sub71077-2G040
sub71077-2G190
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-2B040-B0i199305-199402
GRAY,TRIM2#
sub71078-2B040
main71078-2B040-B1i199211-199305
GRAY,TRIM2#
sub71078-2B040
main71078-2B040-J1i199211-199303
DK.BLUE,TRIM8#
sub71078-2B040
main71078-2B040-J2i199305-199402
DK.BLUE,TRIM8#
sub71078-2B040
main71078-2B041-B2i199402-199601
SHADOW GRAY,TRIM1#
sub71078-2B041
main71078-2B041-J4i199402-199601
DK.BLUE,TRIM8#
sub71078-2B041
main71078-2B160-J2i199303-199305
DK.BLUE,TRIM8#
sub71078-2B040
sub71078-2B160
71301DHINGE SUB-ASSY, REAR SEAT, RH
main71301-20060i199211-199601
RH
main71302-20010i199211-199601
LH
71302DHINGE SUB-ASSY, REAR SEAT, LH
main71301-20060i199211-199601
RH
main71302-20010i199211-199601
LH
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
main71303-20100i199211-199601
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
main71304-20090i199211-199601
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71305-20150i199211-199601
71370DHOLDER ASSY, REAR SEAT CUSHION, RH
main71370-20040-C1i199211-199304
BLACK,TRIM2#,8#
sub71370-20050
main71370-20050-C0i199402-199601
BLACK,TRIM1#,8#
sub71370-20050
main71370-20050-C1i199304-199402
BLACK,TRIM2#,8#
sub71370-20050
71370EHOLDER ASSY, REAR SEAT CUSHION, LH
main71370-20040-C1i199211-199304
BLACK,TRIM2#,8#
sub71370-20050
main71370-20050-C0i199402-199601
BLACK,TRIM1#,8#
sub71370-20050
main71370-20050-C1i199304-199402
BLACK,TRIM2#,8#
sub71370-20050
71460SCUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)
main71560-2B200-C0i199305-199402
BLACK,TRIM2#
sub71560-2B200
main71560-2B200-C2i199211-199305
***,BLACK,TRIM2#
sub71560-2B200
main71560-2B200-J0i199305-199402
DK.BLUE,TRIM8#
sub71560-2B200
main71560-2B200-J2i199211-199305
***,DK. BLUE,TRIM8#
sub71560-2B200
main71560-2B201-B1i199402-199411
***,SHADOW GRAY,TRIM1#
sub71560-2B201
main71560-2B201-B1i199411-199601
***,SHADOW GRAY
sub71560-2B201
main71560-2B201-J2i199402-199411
***,DK. BLUE,TRIM8#
sub71560-2B201
main71560-2B201-J2i199411-199601
***,DK. BLUE
sub71560-2B201
main71560-2B202-B0i199411-199601
SHADOW GRAY,TRIM1#
main71560-2B202-J0i199411-199601
DK.BLUE,TRIM8#
71470SCUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
main71470-20020-C0i199305-199402
BLACK,TRIM2#
sub71470-20020
main71470-20020-C2i199211-199305
***,BLACK,TRIM2#
sub71470-20020
main71470-20020-J0i199305-199402
DK.BLUE,TRIM8#
sub71470-20020
main71470-20020-J2i199211-199305
***,DK. BLUE,TRIM8#
sub71470-20020
main71470-20021-B0i199402-199411
SHADOW GRAY,TRIM1#
sub71470-20021
main71470-20021-B0i199411-199601
SHADOW GRAY
sub71470-20021
main71470-20021-J0i199402-199411
DK.BLUE,TRIM8#
sub71470-20021
main71470-20021-J0i199411-199601
DK.BLUE
sub71470-20021
main71470-20022-B0i199411-199601
SHADOW GRAY,TRIM1#
main71470-20022-J0i199411-199601
DK.BLUE,TRIM8#
71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
main71480-21340-C1i199211-199402
***,BLACK,TRIM2#
main71480-21340-J1i199211-199402
***,DK. BLUE,TRIM8#
main71480-21341-B0i199402-199411
***,SHADOW GRAY,TRIM1#
main71480-21341-J1i199402-199411
***,DK. BLUE,TRIM8#
main71480-21342-B0i199411-199601
***,SHADOW GRAY,TRIM1#
main71480-21342-J1i199411-199601
***,DK. BLUE,TRIM8#
71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
main71490-21060-C1i199211-199402
***,BLACK,TRIM2#
main71490-21060-J1i199211-199402
***,DK. BLUE,TRIM8#
main71490-21061-B0i199402-199411
***,SHADOW GRAY,TRIM1#
main71490-21061-J1i199402-199411
***,DK. BLUE,TRIM8#
main71490-21062-B0i199411-199601
***,SHADOW GRAY,TRIM1#
main71490-21062-J1i199411-199601
***,DK. BLUE,TRIM8#
71540ABACK ASSY, REAR SIDE SEAT, RH
main71540-20220-C3i199211-199402
BLACK,TRIM2#
main71540-20220-J4i199211-199402
DK. BLUE,TRIM8#
main71540-20221-B4i199402-199601
SHADOW GRAY,TRIM1#
main71540-20221-J6i199402-199601
DK. BLUE,TRIM8#
71550ABACK ASSY, REAR SIDE SEAT, LH
main71550-20220-C3i199211-199402
BLACK,TRIM2#
main71550-20220-J4i199211-199402
DK. BLUE,TRIM8#
main71550-20221-B4i199402-199601
SHADOW GRAY,TRIM1#
main71550-20221-J6i199402-199601
DK. BLUE,TRIM8#
71611APAD, REAR SEAT CUSHION, RH
main71611-20560i199211-199601
71612APAD, REAR SEAT CUSHION, LH
main71612-20200i199211-199601
71629COVER, REAR SEAT CUSHION HINGE
main71629-20010-B0i199402-199601
SHADOW GRAY,TRIM1#
sub71629-20010
main71629-20010-C0i199211-199402
BLACK,TRIM2#
sub71629-20010
main71629-20010-J0i199211-199601
DK.BLUE,TRIM8#
sub71629-20010
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-20690i199211-199601
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-20390i199211-199601
71931ASUPPORT, REAR SEAT HEADREST
main71930-10070-22i199211-199402
W(LOCK),BLACK,TRIM2#
sub71930-32010
sub71930-10070
sub71930-12070
sub71930-32020
main71930-10070-J0i199211-199411
W(LOCK),DARK BLUE,TRIM8#
sub71930-32010
sub71930-10070
sub71930-12070
sub71930-32020
main71930-10070-P0i199402-199411
W(LOCK),SHADOW GRAY,TRIM1#
sub71930-32010
sub71930-10070
sub71930-12070
sub71930-32020
main71930-32020-B0i199411-199601
W(LOCK),SHADOW GRAY,TRIM1#
sub71930-32020
main71930-32020-J0i199411-199601
W(LOCK),DK.BLUE,TRIM8#
sub71930-32020
main71931-10020-22i199211-199402
W/O(LOCK),BLACK,TRIM2#
sub71931-32010
sub71931-10020
sub71931-12040
main71931-10020-J0i199211-199411
W/O(LOCK),DARK BLUE,TRIM8#
sub71931-32010
sub71931-10020
sub71931-12040
main71931-10020-P0i199402-199411
W/O(LOCK),SHADOW GRAY,TRIM1#
sub71931-32010
sub71931-10020
sub71931-12040
main71931-32020-B0i199411-199601
W/O(LOCK),SHADOW GRAY,TRIM1#
sub71931-32020
main71931-32020-J0i199411-199601
W/O(LOCK),DK.BLUE,TRIM8#
sub71931-32020
71940AHEADREST ASSY, REAR SEAT
main71940-20270-B0i199211-199402
GRAY,TRIM2#
main71940-20270-J0i199211-199402
DK.BLUE,TRIM8#
main71940-20271-B2i199402-199411
SHADOW GRAY,TRIM1#
main71940-20271-J3i199402-199411
DK. BLUE,TRIM8#
main71940-20330-B0i199411-199601
SHADOW GRAY,TRIM1#
main71940-20330-J0i199411-199601
DK. BLUE,TRIM8#
72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK
main72601-16060i199211-199304
sub72601-20080
main72601-20080i199304-199601
72603LOCK SUB-ASSY, REAR SEATBACK, RH
main72630-21010i199211-199601
72604LOCK SUB-ASSY, REAR SEATBACK, LH
main72640-21010i199211-199601
72646AGROMMET, REAR SEATBACK STOP BUTTON
main72646-20070-B0i199402-199601
SHADOW GRAY,TRIM1#
sub72646-20070
main72646-20070-C0i199211-199402
BLACK,TRIM2#
sub72646-20070
main72646-20070-J0i199211-199601
DK.BLUE,TRIM8#
sub72646-20070
72646BGROMMET, REAR SEATBACK STOP BUTTON
main72646-20070-B0i199402-199601
SHADOW GRAY,TRIM1#
sub72646-20070
main72646-20070-C0i199211-199402
BLACK,TRIM2#
sub72646-20070
main72646-20070-J0i199211-199601
DK.BLUE,TRIM8#
sub72646-20070
72656BBUTTON, REAR SEATBACK STOP RELEASE
main72661-20020-B2i199402-199601
SHADOW GRAY,TRIM1#
sub72661-20020
sub72661-35010
main72661-20020-C0i199211-199402
BLACK,TRIM2#
sub72661-20020
sub72661-35010
main72661-20020-J0i199211-199601
DK.BLUE,TRIM8#
sub72661-20020
sub72661-35010
72656CBUTTON, REAR SEATBACK STOP RELEASE
main72661-20020-B2i199402-199601
SHADOW GRAY,TRIM1#
sub72661-20020
sub72661-35010
main72661-20020-C0i199211-199402
BLACK,TRIM2#
sub72661-20020
sub72661-35010
main72661-20020-J0i199211-199601
DK.BLUE,TRIM8#
sub72661-20020
sub72661-35010
72660ASUPPORT ASSY, REAR SEAT CUSHION
main72660-20030-C0i199211-199402
BLACK,TRIM2#,8#
main72660-20030-C0i199402-199411
BLACK,TRIM1#,8#
72660DSUPPORT ASSY, REAR SEAT CUSHION
main72660-20030-C0i199211-199402
BLACK,TRIM2#,8#
main72660-20030-C0i199402-199411
BLACK,TRIM1#,8#
9010508102
main90105-08102
9011908160
main90119-08160
9011908494
main90119-08494
9011908536
main90119-08536
9015950131
main90159-50131
9046818071
main90468-18071
9152160814
main91521-60814
9165160814
main91651-60814
9165160816
main91651-60816
9165160818
main91651-60818

48 parts on this diagram · 1 diagram in section
