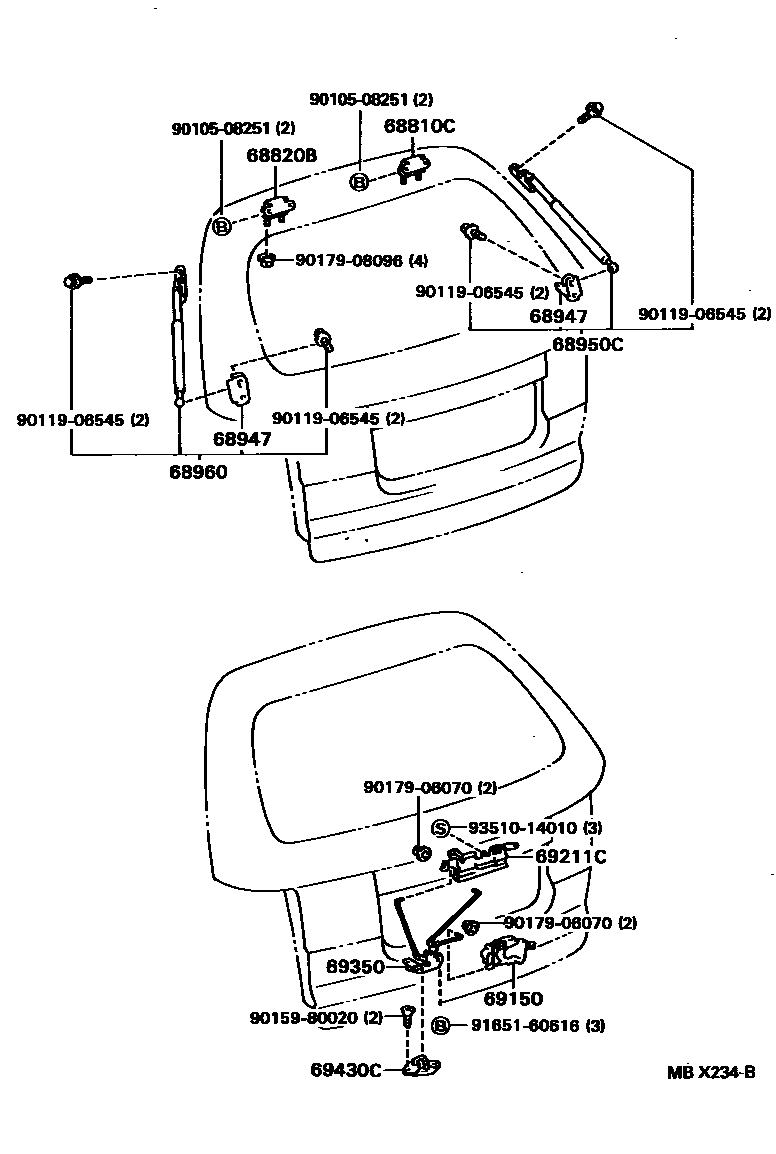

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21040iST191..JPP199211-199601

68820BHINGE ASSY, BACK DOOR, LH

main68810-21040iST191..JPP199211-199601

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-21010iST191..JPP199211-199302

sub68947-21011

main68947-21011iST191..JPP199302-199601

68950CSTAY ASSY, BACK DOOR, RH

main68950-80023iST191..JPP199211-199302

sub68950-80039

main68950-80039iST191..JPP199302-199601

sub68950-80063

68960STAY ASSY, BACK DOOR, LH

main68960-29885iST191..JPP199211-199302

sub68960-29886

main68960-29886iST191..JPP199302-199601

sub68960-80015

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-21020iST191..JPP199211-199601

69211CHANDLE, BACK DOOR OUTSIDE

main69023-21010iST191..JPP199211-199601

69350LOCK ASSY, BACK DOOR

main69350-21040iST191..JPP199211-199601

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-13010iST191..JPP199211-199601

9010508251

main90105-08251

9011906545

main90119-06545

9015980020

main90159-80020

9017906070

main90179-06070

9017908096

main90179-08096

9165160616

main91651-60616

9351014010

main93510-14010

16 parts on this diagram · 1 diagram in section
