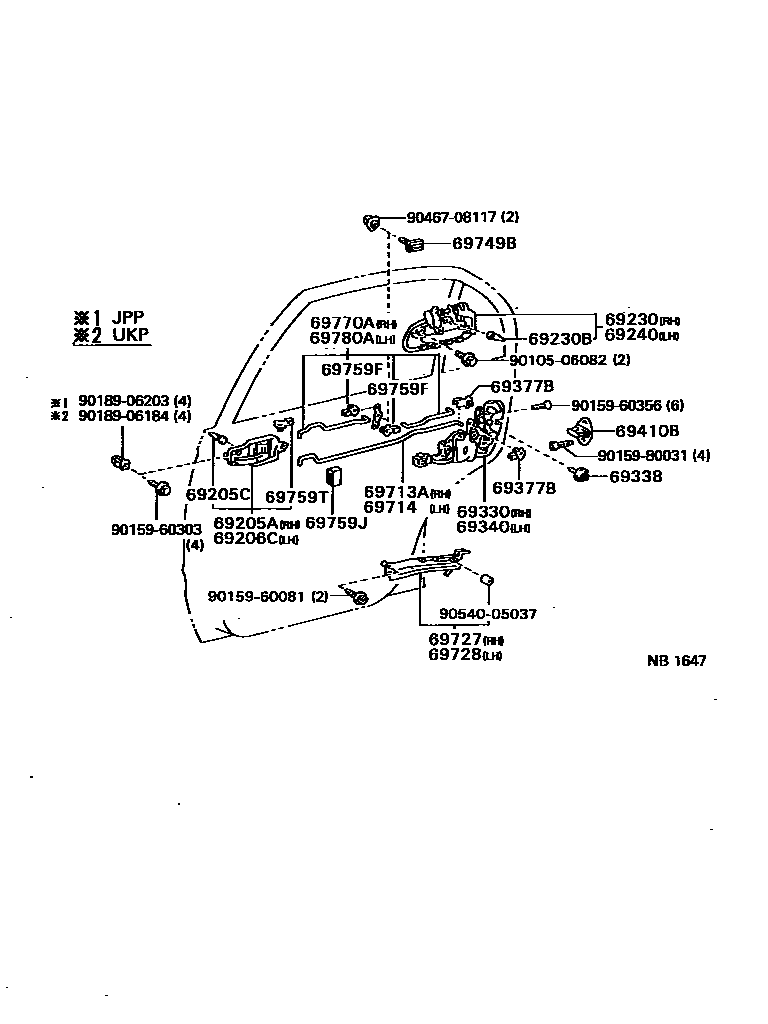

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DARK BLUE,TRIM8#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DARK BLUE,TRIM8#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
sub69230-21040
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
sub69240-21040
69330LOCK ASSY, REAR DOOR, RH
69338KNOB, CHILD PROTECTOR LOCK LEVER
69340LOCK ASSY, REAR DOOR, LH
69377BSNAP, REAR DOOR LOCK CONTROL ROD
LH
RH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
BLACK
RED
69759JSILENCER, DOOR LOCK LINK
50 X 30
60 X 40
69759TSNAP, REAR DOOR INSIDE HANDLE
RH
LH
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
9010506082
main90105-06082
9015960081
main90159-60081
9015960303
main90159-60303
9015960356
main90159-60356
9015980031
main90159-80031
9018906184
main90189-06184
9018906203
main90189-06203
9046708117
main90467-08117
9054005037
main90540-05037
30 parts on this diagram · 1 diagram in section
