E
EPC Data

REAR DOOR PANEL & GLASS

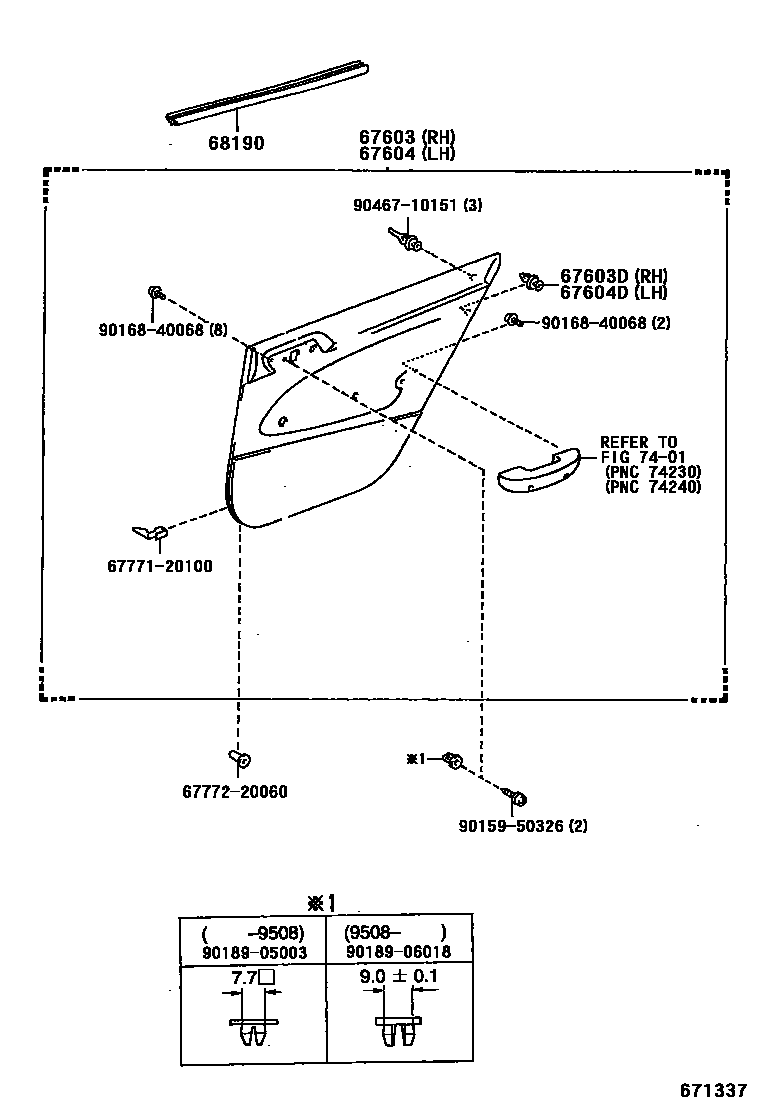

Parts diagram
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-2G010-C4i199211-199305
W(POWER WINDOW),BLACK,TRIM2#
sub67630-2H160
sub67630-2G010
main67630-2G010-J4i199211-199305
W(POWER WINDOW),DK.BLUE,TRIM8#
sub67630-2H160
sub67630-2G010
main67630-2G011-C4i199305-199311
W(POWER WINDOW),BLACK,TRIM2#
sub67630-2G011
sub67630-2H380
main67630-2G011-C7i199311-199402
W(POWER WINDOW),BLACK,TRIM2#
sub67630-2G011
sub67630-2H380
main67630-2G011-J4i199305-199311
W(POWER WINDOW),DK.BLUE,TRIM8#
sub67630-2G011
sub67630-2H380
main67630-2G011-J7i199311-199402
W(POWER WINDOW),DK.BLUE,TRIM8#
sub67630-2G011
sub67630-2H380
main67630-2G150-C5i199211-199305
BLACK,TRIM2#
sub67630-2H140
sub67630-2G150
main67630-2G150-J5i199211-199305
DK.BLUE,TRIM8#
sub67630-2H140
sub67630-2G150
main67630-2G151-C5i199305-199311
BLACK,TRIM2#
sub67630-2G151
main67630-2G151-C7i199311-199402
BLACK,TRIM2#
sub67630-2G151
main67630-2G151-J5i199305-199311
DK.BLUE,TRIM8#
sub67630-2G151
main67630-2G151-J7i199311-199402
DK.BLUE,TRIM8#
sub67630-2G151
main67630-2H640-B0i199402-199601
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67630-2H640-J1i199402-199601
W(POWER WINDOW),DK.BLUE,TRIM8#
main67630-2H870-B0i199402-199601
SHADOW GRAY,TRIM1#
main67630-2H870-J0i199402-199601
DK.BLUE,TRIM8#
67603DRETAINER, REAR DOOR TRIM, RH
main67771-20110i199211-199601
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-2G060-C4i199211-199305
W(POWER WINDOW),BLACK,TRIM2#
sub67640-2H120
sub67640-2G060
main67640-2G060-J4i199211-199305
W(POWER WINDOW),DK.BLUE,TRIM8#
sub67640-2H120
sub67640-2G060
main67640-2G061-C4i199305-199311
W(POWER WINDOW),BLACK,TRIM2#
sub67640-2G061
sub67640-2H340
main67640-2G061-C6i199311-199402
W(POWER WINDOW),BLACK,TRIM2#
sub67640-2G061
sub67640-2H340
main67640-2G061-J4i199305-199311
W(POWER WINDOW),DK.BLUE,TRIM8#
sub67640-2G061
sub67640-2H340
main67640-2G061-J6i199311-199402
W(POWER WINDOW),DK. BLUE,TRIM8#
sub67640-2G061
sub67640-2H340
main67640-2G190-C5i199211-199305
BLACK,TRIM2#
sub67640-2H100
sub67640-2G190
main67640-2G190-J5i199211-199305
DK.BLUE,TRIM8#
sub67640-2H100
sub67640-2G190
main67640-2G191-C5i199305-199311
BLACK,TRIM2#
sub67640-2G191
main67640-2G191-C7i199311-199402
BLACK,TRIM2#
sub67640-2G191
main67640-2G191-J5i199305-199311
DK. BLUE,TRIM8#
sub67640-2G191
main67640-2G191-J7i199311-199402
DK.BLUE,TRIM8#
sub67640-2G191
main67640-2H600-B0i199402-199601
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67640-2H600-J0i199402-199601
W(POWER WINDOW),DK.BLUE,TRIM8#
main67640-2H820-B0i199402-199601
SHADOW GRAY,TRIM1#
main67640-2H820-J0i199402-199601
DK.BLUE,TRIM8#
67604DRETAINER, REAR DOOR TRIM, LH
main67771-20110i199211-199601
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
main68173-20070i199211-199601
RH
main68174-20020i199211-199601
LH
7401
6777120100WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20100
6777220060WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20060
9015950326
main90159-50326
9016840068
main90168-40068
9018905003
main90189-05003
9018906018
main90189-06018
9046710151
main90467-10151

13 parts on this diagram · 3 diagrams in section
