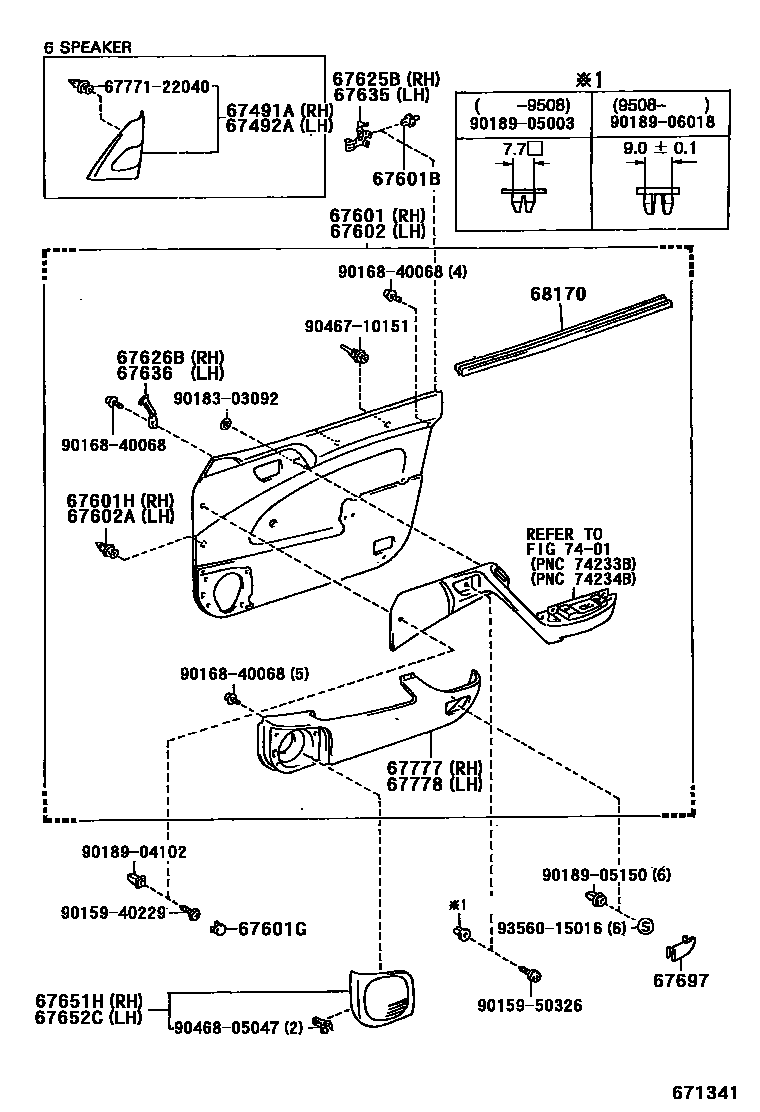

FRONT DOOR PANEL & GLASS
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
W(DOOR MIRROR 2-ELECT)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
W(DOOR MIRROR 2-ELECT)
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
W(POWER WINDOW),BLACK,TRIM2#
W(POWER WINDOW),DK.BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DK.BLUE,TRIM8#
W(POWER WINDOW),SHADOW GRAY,TRIM1#
W(POWER WINDOW),DK.BLUE,TRIM8#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
67601HRETAINER, DOOR TRIM, RH
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
W(POWER WINDOW),BLACK,TRIM2#
W(POWER WINDOW),DK.BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DK.BLUE,TRIM8#
W(POWER WINDOW),SHADOW GRAY,TRIM1#
W(POWER WINDOW),DK.BLUE,TRIM8#
67602ARETAINER, DOOR TRIM, LH
67625BBRACKET, DOOR TRIM, NO.1 RH
67626BBRACKET, DOOR TRIM, NO.2 RH
67635BRACKET, DOOR TRIM, NO.1 LH
67636BRACKET, DOOR TRIM, NO.2 LH
67651HGRILLE, SPEAKER DOOR, RH
67652CGRILLE, SPEAKER DOOR, LH
67697COVER, FRONT DOOR TRIM POCKET
67777POCKET, FRONT DOOR TRIM, RH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK.BLUE,TRIM8#
67778POCKET, FRONT DOOR TRIM, LH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK.BLUE,TRIM8#
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
7401
6777122040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-22040
9015940229
main90159-40229
9015950326
main90159-50326
9016840068
main90168-40068
9018303092
main90183-03092
9018904102
main90189-04102
9018905003
main90189-05003
9018905150
main90189-05150
9018906018
main90189-06018
9046710151
main90467-10151
9046805047
main90468-05047
9356015016
main93560-15016
31 parts on this diagram · 4 diagrams in section
