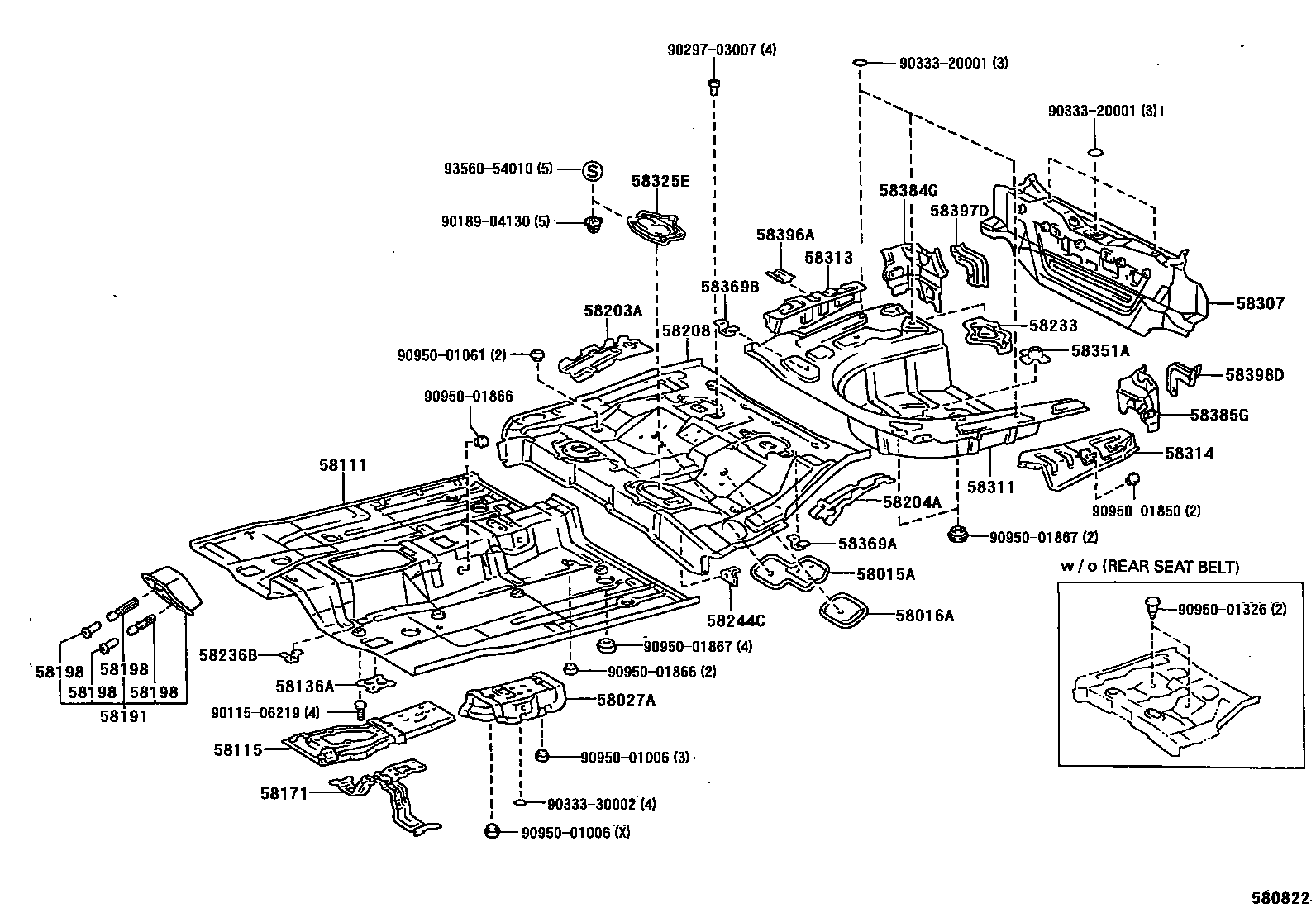

FLOOR PAN & LOWER BACK PANEL
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58136ACOVER, FRONT FLOOR SERVICE HOLE
RH
LH
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
L=100
L=84
L=28.5
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58208PAN, CENTER FLOOR
58233BRACKET, EXHAUST PIPE MOUNTING
58236BBRACKET, CENTER FLOOR HEAT INSULATOR
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
sub58311-21060
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58351ABRACKET, SPARE WHEEL CARRIER
58369ABRACKET, FUEL TUBE, NO.3
58369BBRACKET, FUEL TUBE, NO.3
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58396ABRACKET, WIRE HARNESS CLAMP
58397DPANEL, REAR FLOOR END DUST SEAL, RH
58398DPANEL, REAR FLOOR END DUST SEAL, LH
9011506219
main90115-06219
9018904130
main90189-04130
9029703007
main90297-03007
9033320001
main90333-20001
9033330002
main90333-30002
9095001006
main90950-01006
9095001061
main90950-01061
9095001326
main90950-01326
9095001850
main90950-01850
9095001866
main90950-01866
9095001867
main90950-01867
9356054010
main93560-54010
40 parts on this diagram · 1 diagram in section
