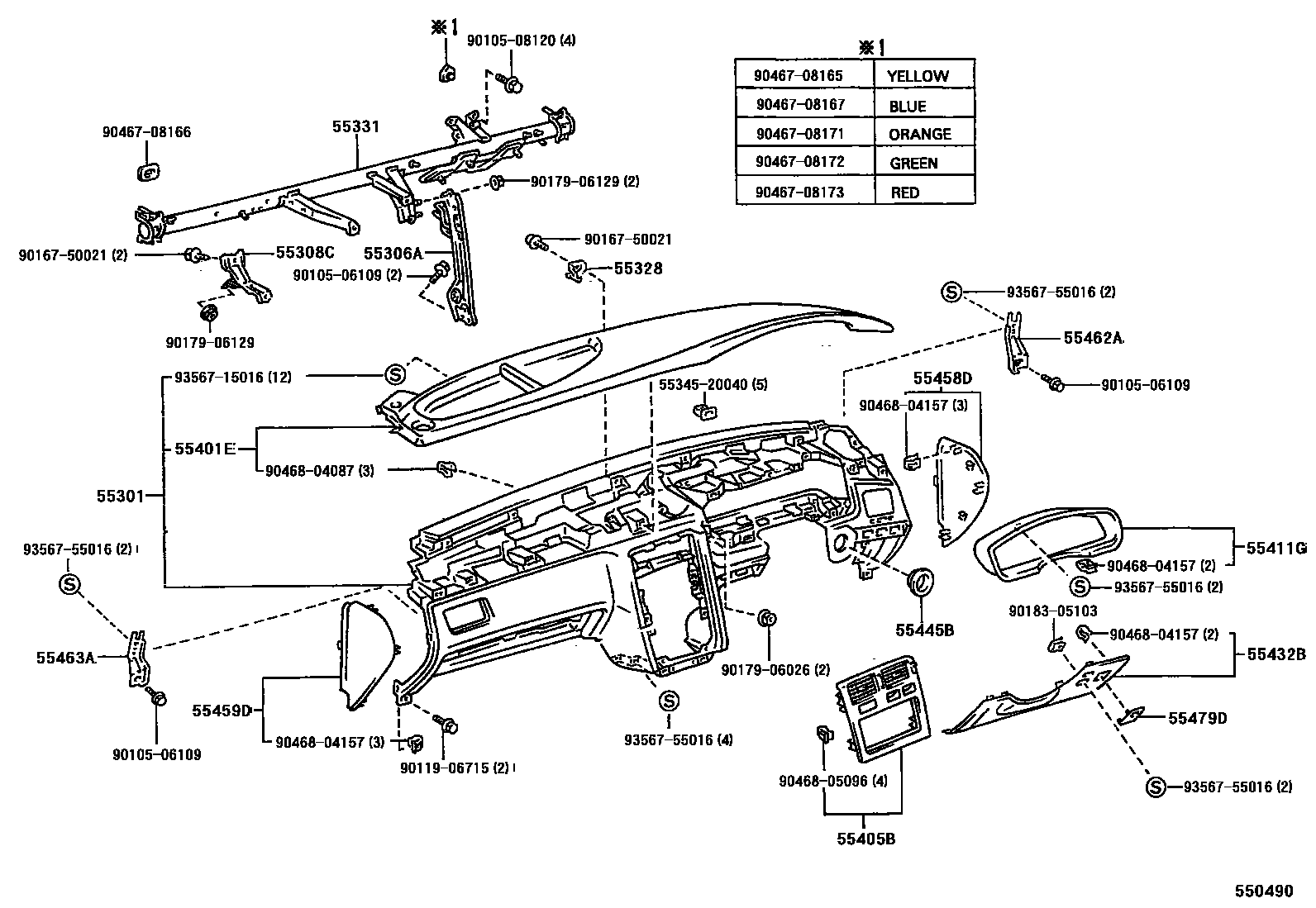

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55328PIN, INSTRUMENT PANEL, NO.1
55331REINFORCEMENT, INSTRUMENT PANEL
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK.BLUE,TRIM8#
55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK.BLUE,TRIM8#
55445BPLATE, INSTRUMENT PANEL FINISH
55458DCOVER, INSTRUMENT LOWER, RH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK.BLUE,TRIM8#
55459DCOVER, INSTRUMENT, LOWER LH
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK.BLUE,TRIM8#
55462AEXTENSION, INSTRUMENT SAFETY PAD INSERT, RH
55463AEXTENSION, INSTRUMENT SAFETY PAD INSERT, LH
55479DGARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
DK.BLUE,TRIM8#
5534520040GARNISH, GLOVE COMPARTMENT, UPPER
main55345-20040
9010506109
main90105-06109
9010508120
main90105-08120
9011906715
main90119-06715
9016750021
main90167-50021
9017906026
main90179-06026
9017906129
main90179-06129
9018305103
main90183-05103
9046708165
main90467-08165
9046708166
main90467-08166
9046708167
main90467-08167
9046708171
main90467-08171
9046708172
main90467-08172
9046708173
main90467-08173
9046804087
main90468-04087
9046804157
main90468-04157
9046805096
main90468-05096
9356715016
main93567-15016
9356755016
main93567-55016
34 parts on this diagram · 2 diagrams in section
