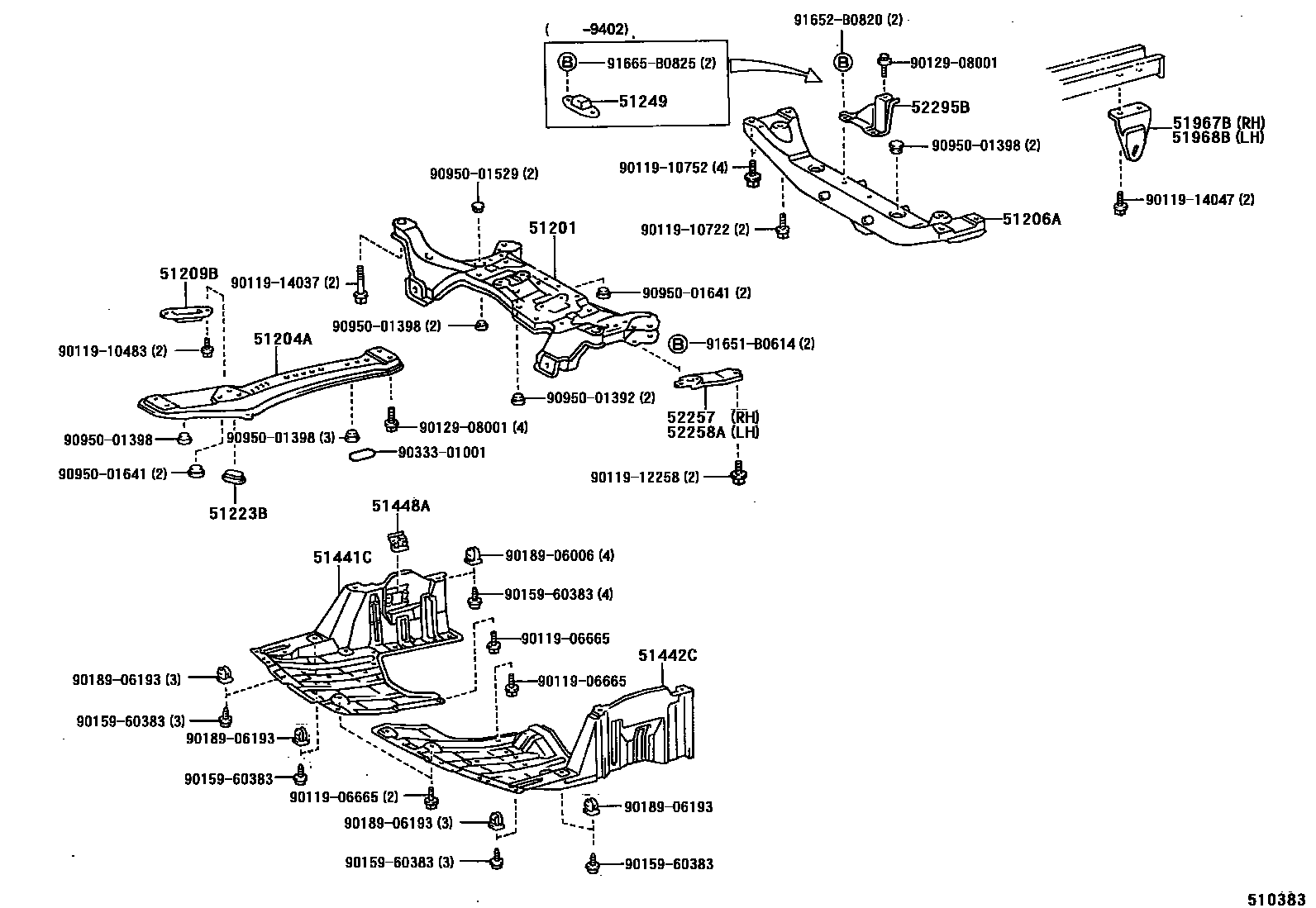

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20251iST191..JPP199211-199402

main51201-20252iST191..JPP199402-199601

sub51201-20320

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20110iST191..JPP199211-199601

sub51204-20111

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20050iST191..JPP199211-199601

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-12010iST191..JPP199211-199601

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iST191..JPP199211-199601

51249DAMPER, REAR SUSPENSION MEMBER

main51249-20020iST191..JPP199211-199402

51441CCOVER, ENGINE UNDER, RH

main51441-20310iST191..JPP199211-199312

main51441-20311iST191..JPP199312-199405

main51441-20312iST191..JPP199405-199512

main51441-20313iST191..JPP199512-199601

51442CCOVER, ENGINE UNDER, LH

main51442-20370iST191..JPP199211-199512

main51442-20371iST191..JPP199512-199601

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iST191..JPP199211-199601

51967BHOOK, TRANSPORT, REAR RH

main51967-20160iST191..JPP199211-199601

51968BHOOK, TRANSPORT, REAR LH

main51967-20160iST191..JPP199303-199601

main51968-20090iST191..JPP199211-199303

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20010iST191..JPP199211-199601

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20010iST191..JPP199211-199601

52295BBRACE, REAR SUSPENSION MEMBER, RH

main52295-20020iST191..JPP199402-199601

9011906665

main90119-06665

9011910483

main90119-10483

9011910722

main90119-10722

9011910752

main90119-10752

9011912258

main90119-12258

9011914037

main90119-14037

9011914047

main90119-14047

9012908001

main90129-08001

9015960383

main90159-60383

9018906006

main90189-06006

9018906193

main90189-06193

9033301001

main90333-01001

9095001392

main90950-01392

9095001398

main90950-01398

9095001529

main90950-01529

9095001641

main90950-01641

91651B0614

main91651-B0614

91652B0820

main91652-B0820

91665B0825

main91665-B0825

33 parts on this diagram · 1 diagram in section
