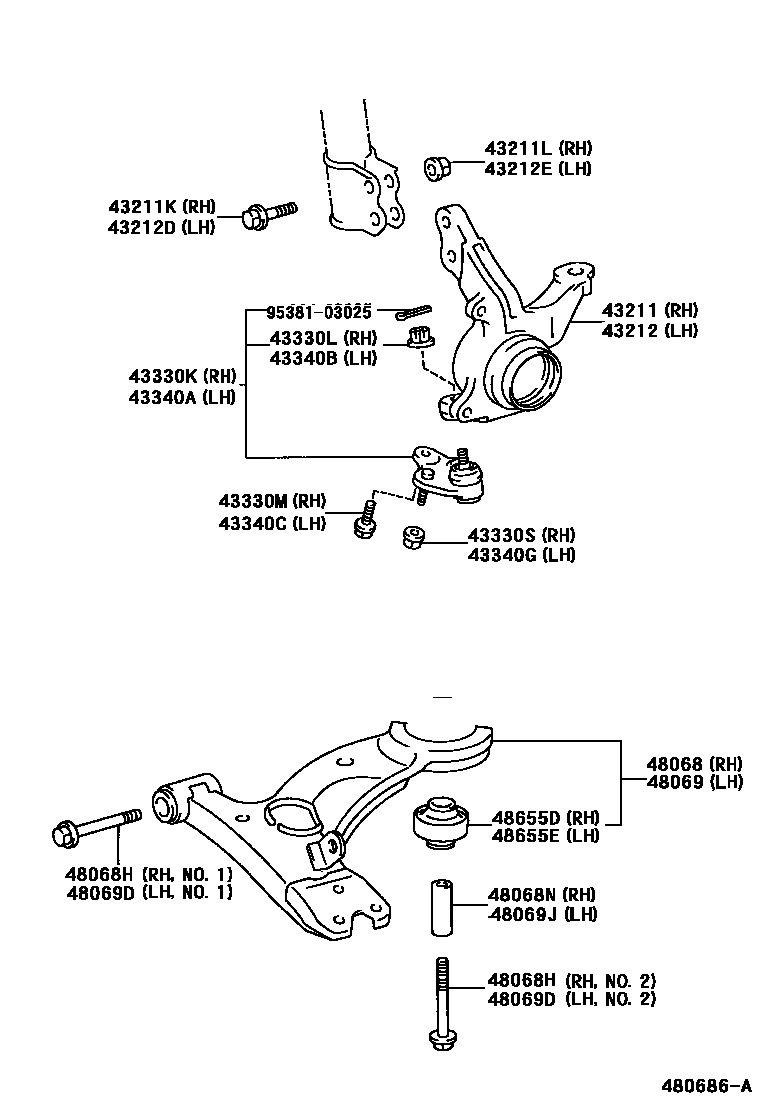

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
sub43211-20300
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=15.0
OD=13.9
OD=13.3
OD=12.4
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
sub43212-20300
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=15.0
OD=13.9
OD=13.3
OD=12.4
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
sub43330-29375
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
43330SNUT (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
sub43330-29375
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
43340GNUT (FOR FRONT LOWER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
ARM NO.1
ARM NO.2
48068NCOLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
ARM NO.1
ARM NO.2
48069JCOLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
9538103025
main95381-03025
23 parts on this diagram · 2 diagrams in section
