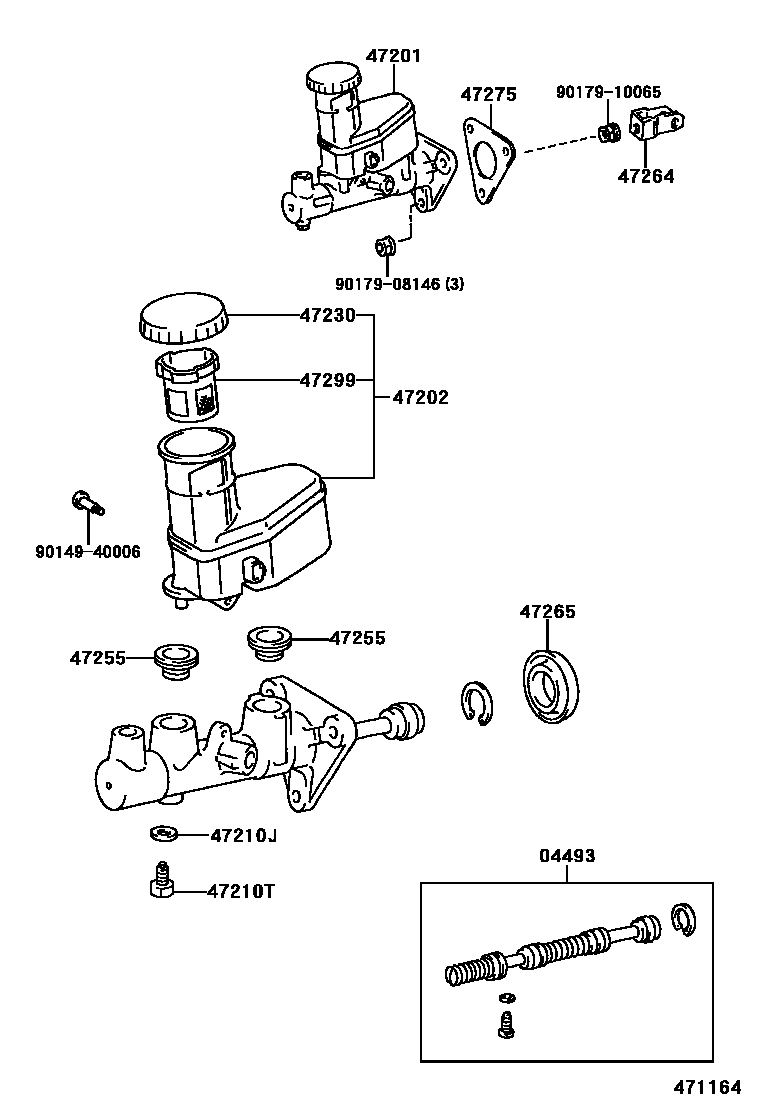

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-20210iST191..JPP199211-199406

sub04493-16110

main04493-20260iST191..JPP199406-199601

sub04493-42020

main04493-33040iST191..JPP199211-199601

W(ABS)

sub04493-20310

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-20810iST191..JPP199211-199601

main47201-20840iST191..JPP199211-199601

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20400iST191..JPP199211-199601

sub47220-20170

main47202-20410iST191..JPP199211-199601

W(ABS)

sub47220-20180

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iST191..JPP199211-199601

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iST191..JPP199211-199601

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iST191..JPP199211-199601

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iST191..JPP199211-199601

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20060iST191..JPP199211-199601

47265BOOT, MASTER CYLINDER

main47265-20050iST191..JPP199211-199601

47275GASKET, BRAKE MASTER CYLINDER

main47275-32010iST191..JPP199211-199601

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iST191..JPP199211-199601

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

14 parts on this diagram · 1 diagram in section
