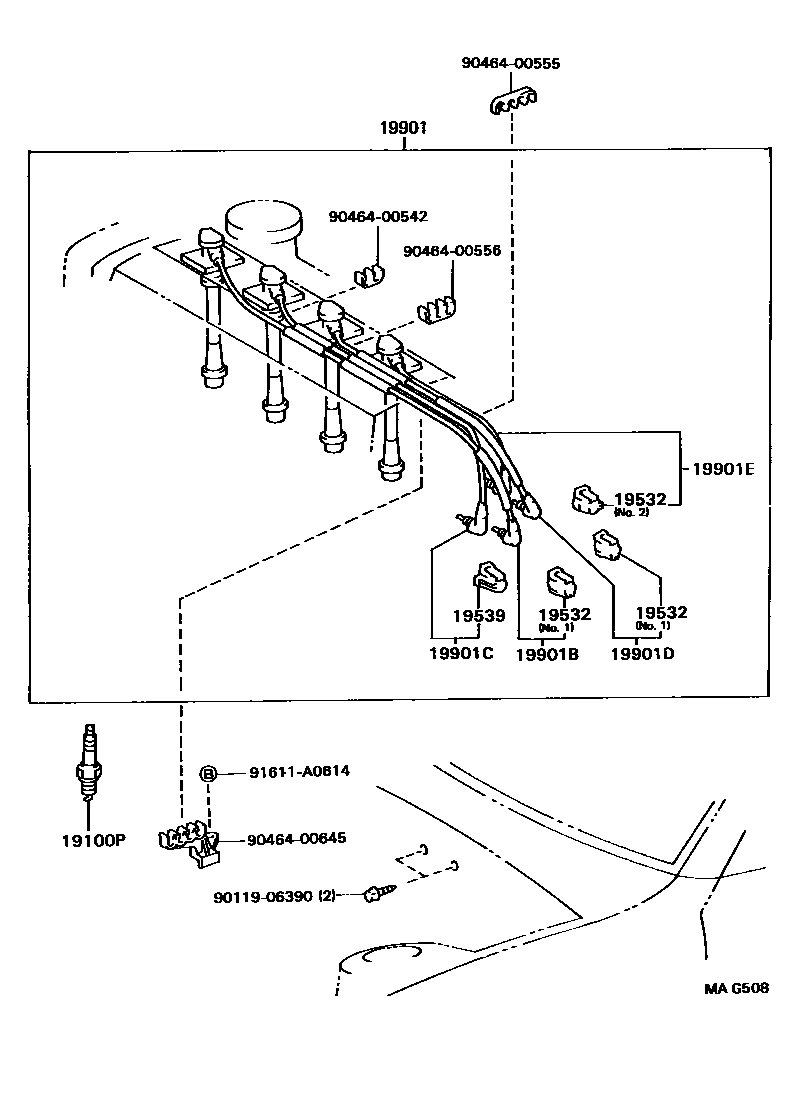

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01184i3SFE..ST191..JPP199211-199601

K20R-U11

19532HOLDER, RESISTIVE CODE, NO.2

main19532-46010i3SFE..ST191..JPP199211-199601

NO.1

main19532-50010i3SFE..ST191..JPP199211-199412

NO.2

main19539-74030i3SFE..ST191..JPP199412-199601

NO.2

19539HOLDER, RESISTIVE CODE, NO.4

main19539-62020i3SFE..ST191..JPP199211-199412

main19539-74040i3SFE..ST191..JPP199412-199601

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-22302i3SFE..ST191..JPP199211-199402

main90919-22369i3SFE..ST191..JPP199402-199407

SUMITOMO

sub90919-22370

main90919-22370i3SFE..ST191..JPP199402-199601

YAZAKI

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15330i3SFE..ST191..JPP199211-199402

SUMITOMO

main90919-15332i3SFE..ST191..JPP199211-199402

YAZAKI

sub90919-15330

main90919-15406i3SFE..ST191..JPP199402-199407

SUMITOMO

sub90919-15409

main90919-15409i3SFE..ST191..JPP199402-199601

YAZAKI

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15258i3SFE..ST191..JPP199211-199402

SUMITOMO

main90919-15260i3SFE..ST191..JPP199211-199402

YAZAKI

sub90919-15258

main90919-15408i3SFE..ST191..JPP199402-199407

SUMITOMO

sub90919-15411

main90919-15411i3SFE..ST191..JPP199402-199601

YAZAKI

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15331i3SFE..ST191..JPP199211-199402

SUMITOMO

main90919-15333i3SFE..ST191..JPP199211-199402

YAZAKI

sub90919-15331

main90919-15407i3SFE..ST191..JPP199402-199407

SUMITOMO

sub90919-15410

main90919-15410i3SFE..ST191..JPP199402-199601

YAZAKI

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15259i3SFE..ST191..JPP199211-199407

SUMITOMO

sub90919-15261

main90919-15261i3SFE..ST191..JPP199211-199601

YAZAKI

9011906390

main90119-06390

9046400542

main90464-00542

9046400555

main90464-00555

9046400556

main90464-00556

9046400645

main90464-00645

91611A0614

main91611-A0614

14 parts on this diagram · 2 diagrams in section
