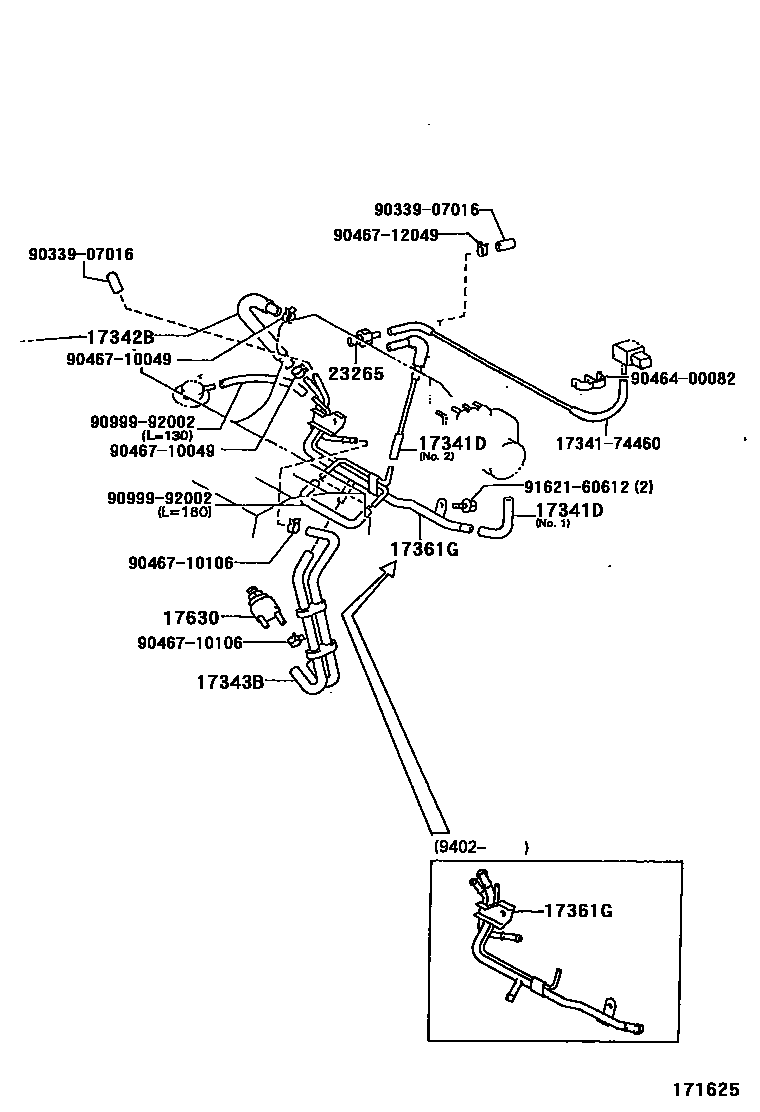

VACUUM PIPING

17341DHOSE, NO.1(FOR IDLE-UP)

main17341-74340i3SFE..ST191..JPP199211-199601

NO.1

main17341-74430i3SFE..ST191..JPP199211-199601

NO.2

17342BHOSE, NO.2(FOR IDLE-UP)

main17343-74141i3SFE..ST191..JPP199211-199601

17343BHOSE, NO.3(FOR IDLE-UP)

main17343-74100i3SFE..ST191..JPP199211-199601

17361GTUBE, AIR(FOR IDLE-UP)

main17361-74110i3SFE..ST191..JPP199211-199402

main17361-74150i3SFE..ST191..JPP199402-199601

17630VALVE ASSY, AIR CONTROL

main17630-70020i3SFE..ST191..JPP199211-199601

sub17630-16040

23265FILTER, GAS, NO.1

main90917-11023i3SFE..ST191..JPP199211-199601

1734174460HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-74460

9033907016

main90339-07016

9046400082

main90464-00082

9046710049

main90467-10049

9046710106

main90467-10106

9046712049

main90467-12049

9099992002

main90999-92002

9162160612

main91621-60612

14 parts on this diagram · 1 diagram in section
