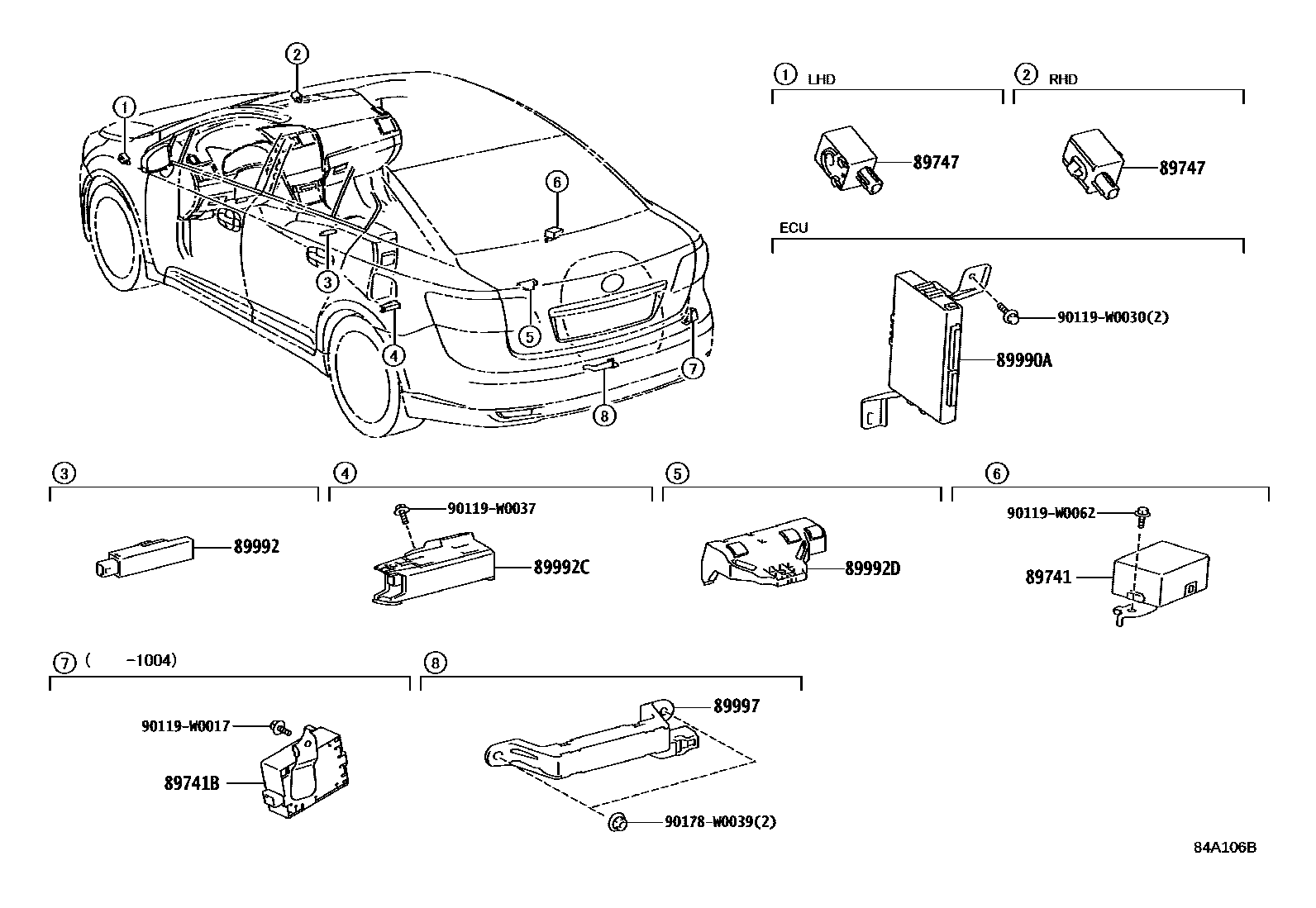

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-05010iAZT270200811-201104

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-05020iAZT270200811-201004

89747BUZZER, WIRELESS DOOR LOCK

main89747-05010iAZT270200811-201104

89990ACOMPUTER ASSY, SMART KEY

main89990-05011iAZT270..LHD200811-201005

main89990-05012iAZT270..LHD201006-201104

sub89990-05014

main89990-05021iAZT270..RHD200811-201005

main89990-05022iAZT270..RHD201006-201104

sub89990-05024

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-05010iAZT270200811-201104

sub899A0-0F040

89992COSCILLATOR, INDOOR ELECTRICAL KEY, NO.2

main89992-05020iAZT270200811-201104

sub899A0-02020

89992DOSCILLATOR, INDOOR ELECTRICAL KEY, NO.3

main89992-05030iAZT270200811-201104

sub899A0-02030

89997ANTENNA, ELECTRICAL KEY

main89997-30070iAZT270200811-201104

90119W0017

main90119-W0017

90119W0030

main90119-W0030

90119W0037

main90119-W0037

90119W0062

main90119-W0062

90178W0039

main90178-W0039

13 parts on this diagram · 1 diagram in section
