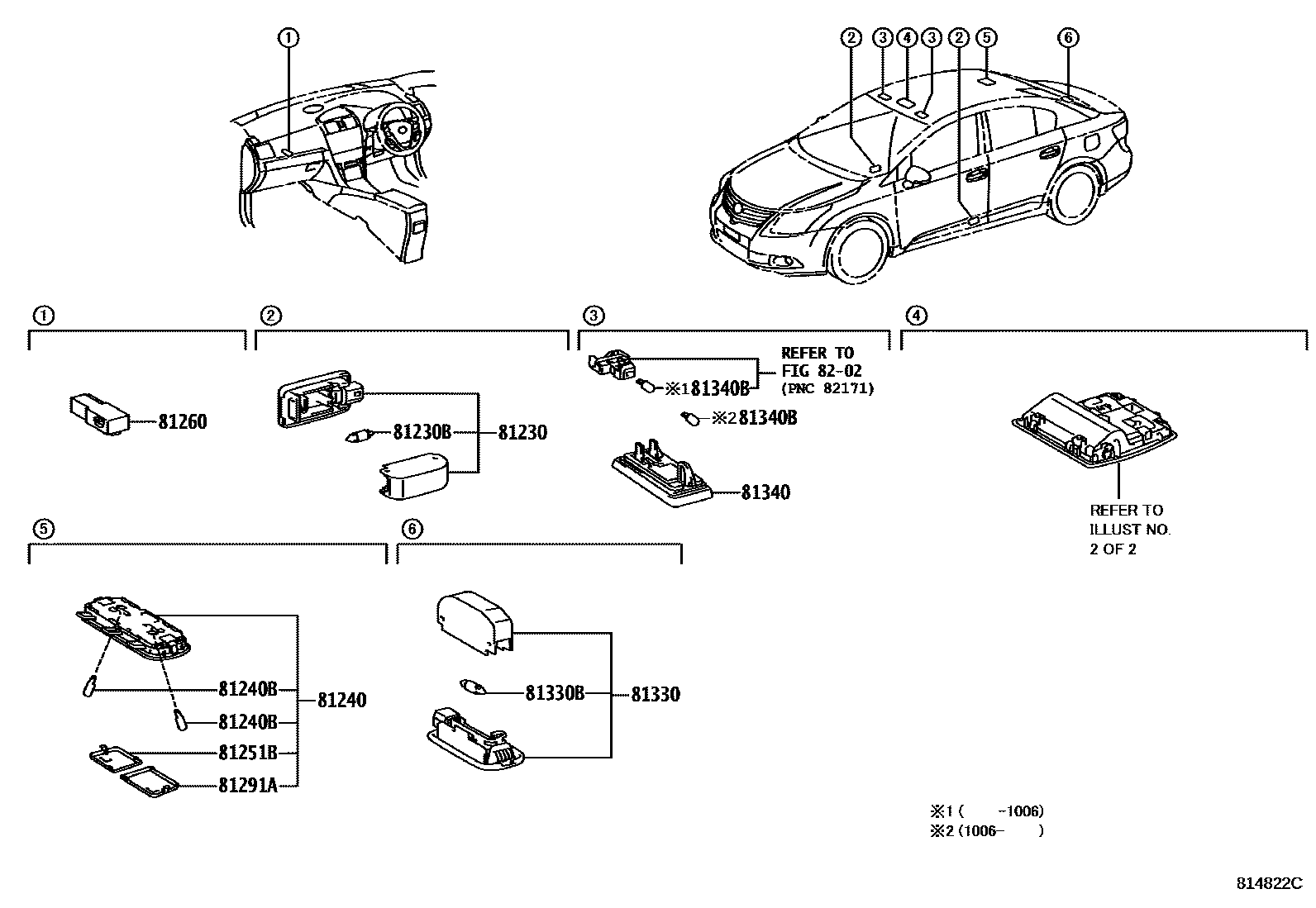

INTERIOR LAMP
81230LAMP ASSY, COURTESY
sub81330-02060
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM2#
GREGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81251BLENS, REAR ROOM LAMP, RH
81260LAMP ASSY, GLOVE BOX
81291ALENS, REAR ROOM LAMP, LH
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
sub81330-02060
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
LT.GRAY,TRIM2#
GREGE,TRIM4#
81340BBULB (FOR VANITY LAMP)
12V 8W
8202
12 parts on this diagram · 2 diagrams in section
