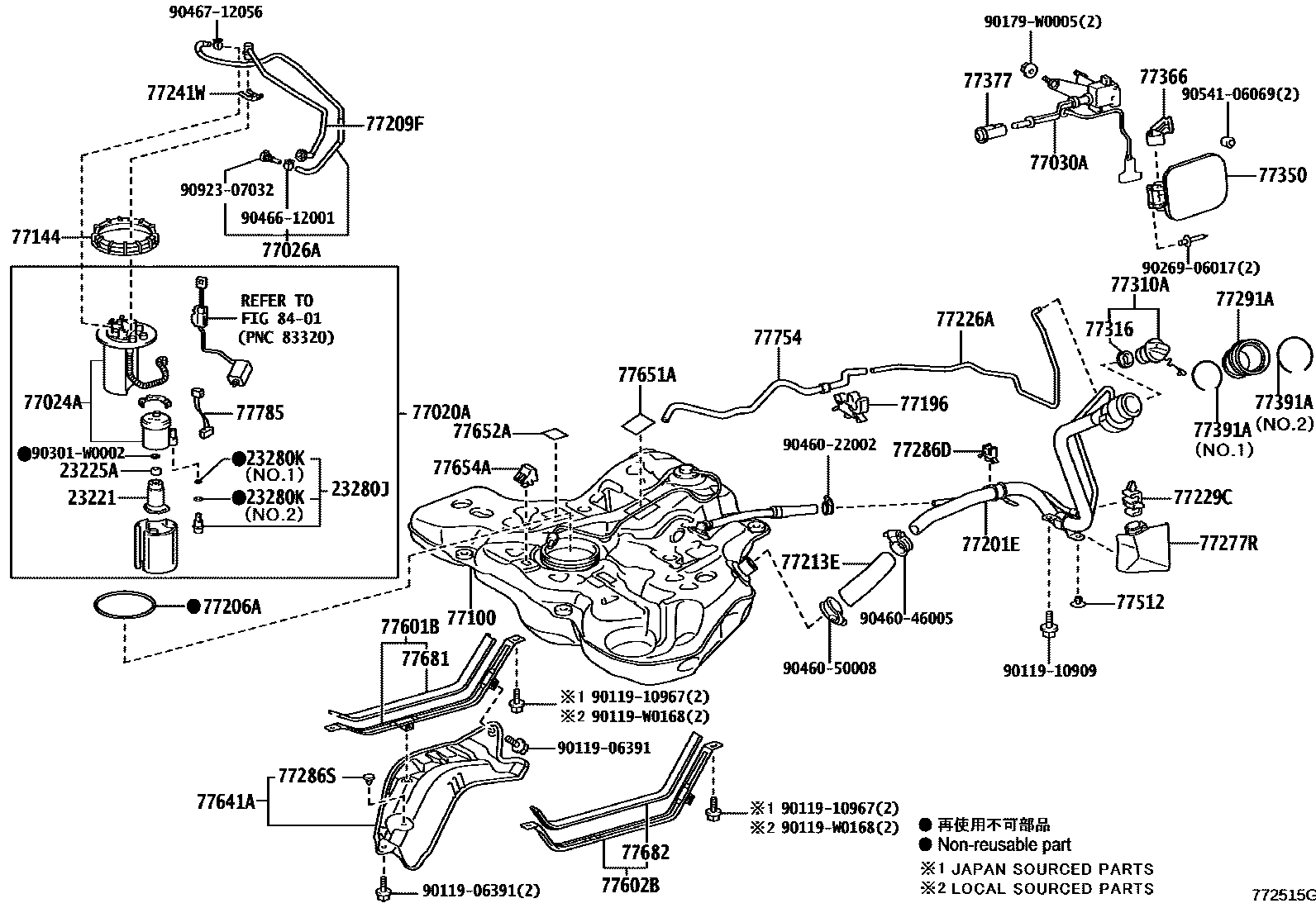

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
sub77024-02320
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77030ALOCK ASSY, FUEL LID W/MOTOR
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77196CLAMP, EVAPORATION VENT TUBE, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77206AGASKET (FOR FUEL TANK SUCTION TUBE)
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77286DCLAMP, FUEL TUBE, NO.2
77286SCUSHION, FUEL TANK PROTECTOR
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391ARING, FUEL INLET BOX
NO.1
NO.2
77512BRACKET, FUEL TANK, REAR
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77654ACUSHION, FUEL TANK, NO.4
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
77785HARNESS, FUEL PUMP
8401
9011906391
main90119-06391
9011910909
main90119-10909
9011910967
main90119-10967
90119W0168
main90119-W0168
90179W0005
main90179-W0005
9026906017
main90269-06017
90301W0002
main90301-W0002
9046022002
main90460-22002
9046046005
main90460-46005
9046050008
main90460-50008
9046612001
main90466-12001
9046712056
main90467-12056
9054106069
main90541-06069
9092307032
main90923-07032
54 parts on this diagram · 2 diagrams in section
