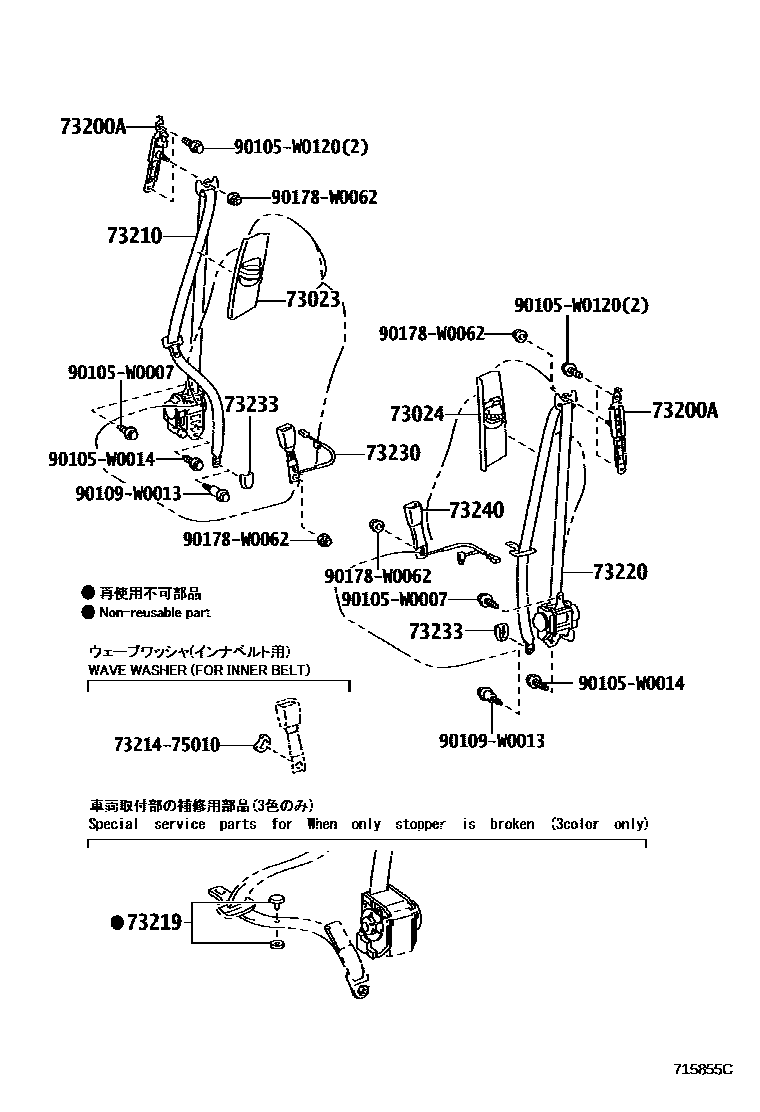

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FR SEAT 0002 1RR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-05020-B0iAZT270200811-201104

LT.GRAY,TRIM2#

main73023-05020-E0iAZT270200811-201104

GREGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-05020-B0iAZT270200811-201104

LT.GRAY,TRIM2#

main73024-05020-E0iAZT270200811-201104

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02100×2iAZT270200811-201104

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-05080-C1iAZT270200811-201104

BLACK,TRIM2#

sub73210-05081

main73210-05080-E0iAZT270200811-201104

GREGE,TRIM4#

sub73210-05081

73219STOPPER, TONGUE PLATE

main73219-33010iAZT270200811-201104

BLACK

main73219-33020iAZT270200811-201104

GRAY

main73219-33030iAZT270200811-201104

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-05070-C1iAZT270200811-201104

BLACK,TRIM2#

sub73220-05071

main73220-05070-E0iAZT270200811-201104

GREGE,TRIM4#

sub73220-05071

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-05100-C0iAZT270..RHD200811-201104

BLACK,TRIM2#

main73230-05100-E0iAZT270..RHD200811-201104

GREGE,TRIM4#

main73230-05130-C0supersedes 73230-05110-C0iAZT270..LHD200811-200905

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

sub73230-05190

main73230-05130-E0supersedes 73230-05110-E0iAZT270..LHD200811-200905

SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

sub73230-05190

73233COVER, LAP BELT OUTER ANCHOR

main73233-02040-C0×2iAZT270200811-201104

BLACK,TRIM2#

main73233-02040-E0×2iAZT270200811-201104

GREGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-05100-C0iAZT270..LHD200811-201104

BLACK,TRIM2#

main73230-05100-E0iAZT270..LHD200811-201104

GREGE,TRIM4#

main73230-05130-C0supersedes 73230-05110-C0iAZT270..RHD200811-200905

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

sub73230-05190

main73230-05130-E0supersedes 73230-05110-E0iAZT270..RHD200905-201104

SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4#

sub73230-05190

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105W0007

main90105-W0007

90105W0014

main90105-W0014

90105W0120

main90105-W0120

90109W0013

main90109-W0013

90178W0062

main90178-W0062

15 parts on this diagram · 2 diagrams in section
