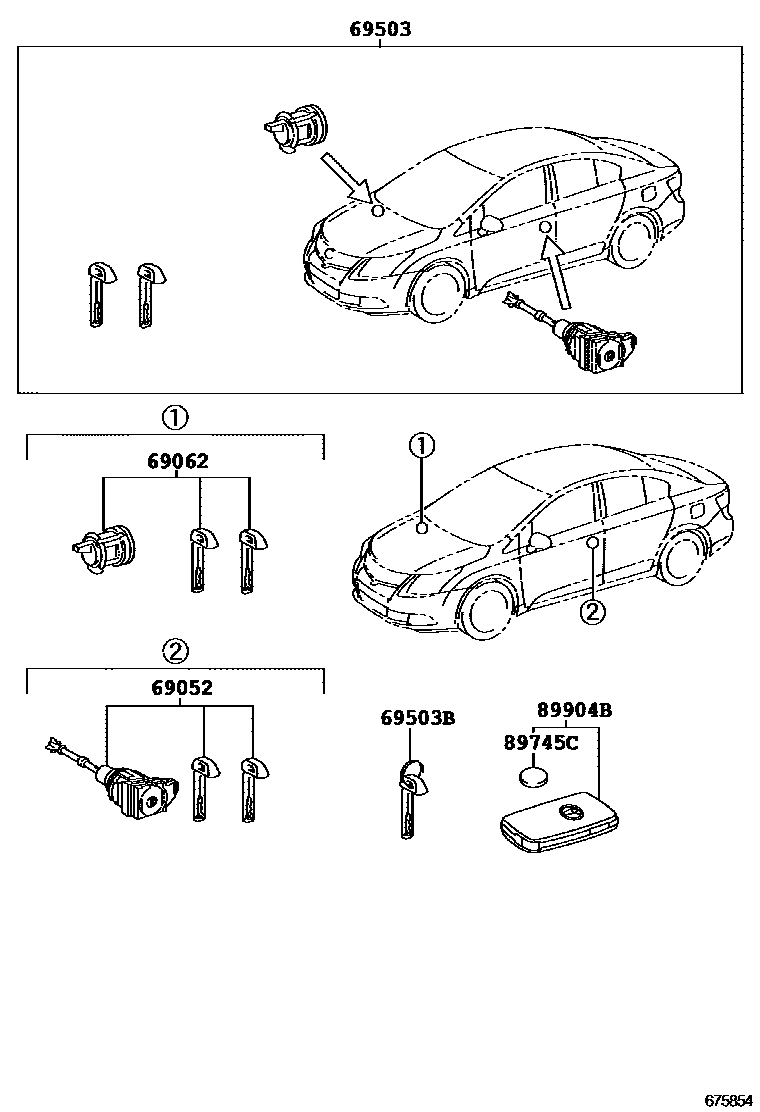

LOCK CYLINDER SET

0001 1 0002 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-05060iAZT270..LHD200811-201104

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-05050iAZT270200811-201104

69503CYLINDER SET, LOCK

main69005-05160iAZT270..LHD200811-201010

main69005-05161iAZT270..LHD201010-201104

main69005-05180iAZT270..RHD200811-201104

69503BKEY, CUT

main69515-52110iAZT270200811-201104

MASTER KEY,W(*68)

89745CBATTERY, TRANSMITTER

main89745-52030iAZT270200811-201104

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-05011iAZT270200811-201104

6 parts on this diagram · 2 diagrams in section
