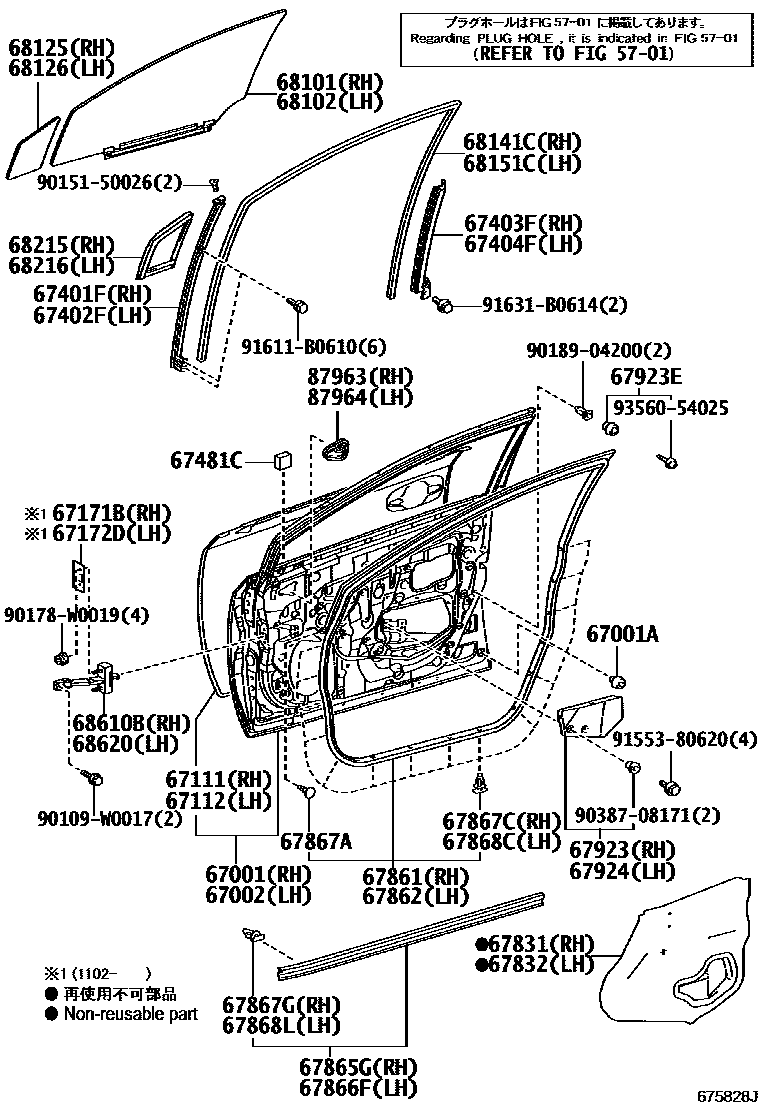

FRONT DOOR PANEL & GLASS
5701
67001PANEL SUB-ASSY, FRONT DOOR, RH
sub67001-05071
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
sub67002-05071
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67171BREINFORCEMENT, FRONT DOOR HINGE, RH
67172DREINFORCEMENT, FRONT DOOR HINGE, LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67481CSEAL, FRONT DOOR FRONT LOWER FRAME
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH
67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
sub67867-12150
67867GRETAINER, DOOR WEATHERSTRIP, RH
sub67867-12150
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67923ECUSHION, FRONT DOOR STIFFENER, NO.1
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=5.0,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=5.0,GREEN
68125GLASS, FRONT DOOR FIX WINDOW, RH
*TEM,T=5.0,GREEN
68126GLASS, FRONT DOOR FIX WINDOW, LH
*TEM,T=5.0,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
90109W0017
main90109-W0017
9015150026
main90151-50026
90178W0019
main90178-W0019
9018904200
main90189-04200
9038708171
main90387-08171
9155380620
main91553-80620
91611B0610
main91611-B0610
91631B0614
main91631-B0614
9356054025
main93560-54025
48 parts on this diagram · 2 diagrams in section
