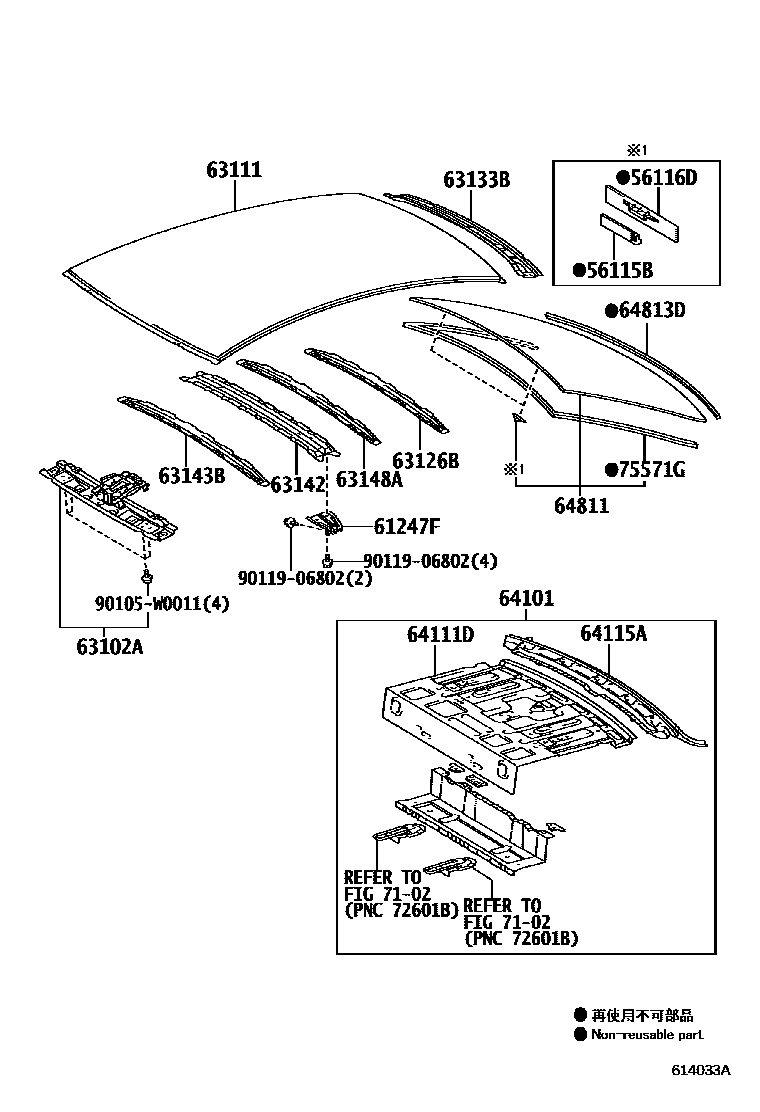

ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iAZT270200811-201104

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iAZT270200811-201104

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-05020×2iAZT270200811-201104

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-05090iAZT270200811-201104

63111PANEL, ROOF

main63111-05290iAZT270200811-201104

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-05010iAZT270200811-201104

63133BFRAME, BACK WINDOW

main63133-05040iAZT270200811-201104

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-05030iAZT270200811-201104

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-05070iAZT270200811-201104

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-05040iAZT270200811-201104

64101PANEL SUB-ASSY, UPPER BACK

main64101-05100iAZT270200811-201104

sub64101-05101

64111DPANEL, UPPER BACK

main64111-05060iAZT270200811-201104

sub64111-05061

64115AREINFORCEMENT, BACK, UPPER

main64115-05040iAZT270200811-201104

64811GLASS, BACK WINDOW

main64801-05010iAZT270200811-201104

*EHT,T=3.1,GREEN

sub64801-05011

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-20160iAZT270200811-201104

sub56117-50140

7102

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-05020iAZT270200811-201104

90105W0011

main90105-W0011

9011906802

main90119-06802

19 parts on this diagram · 1 diagram in section
