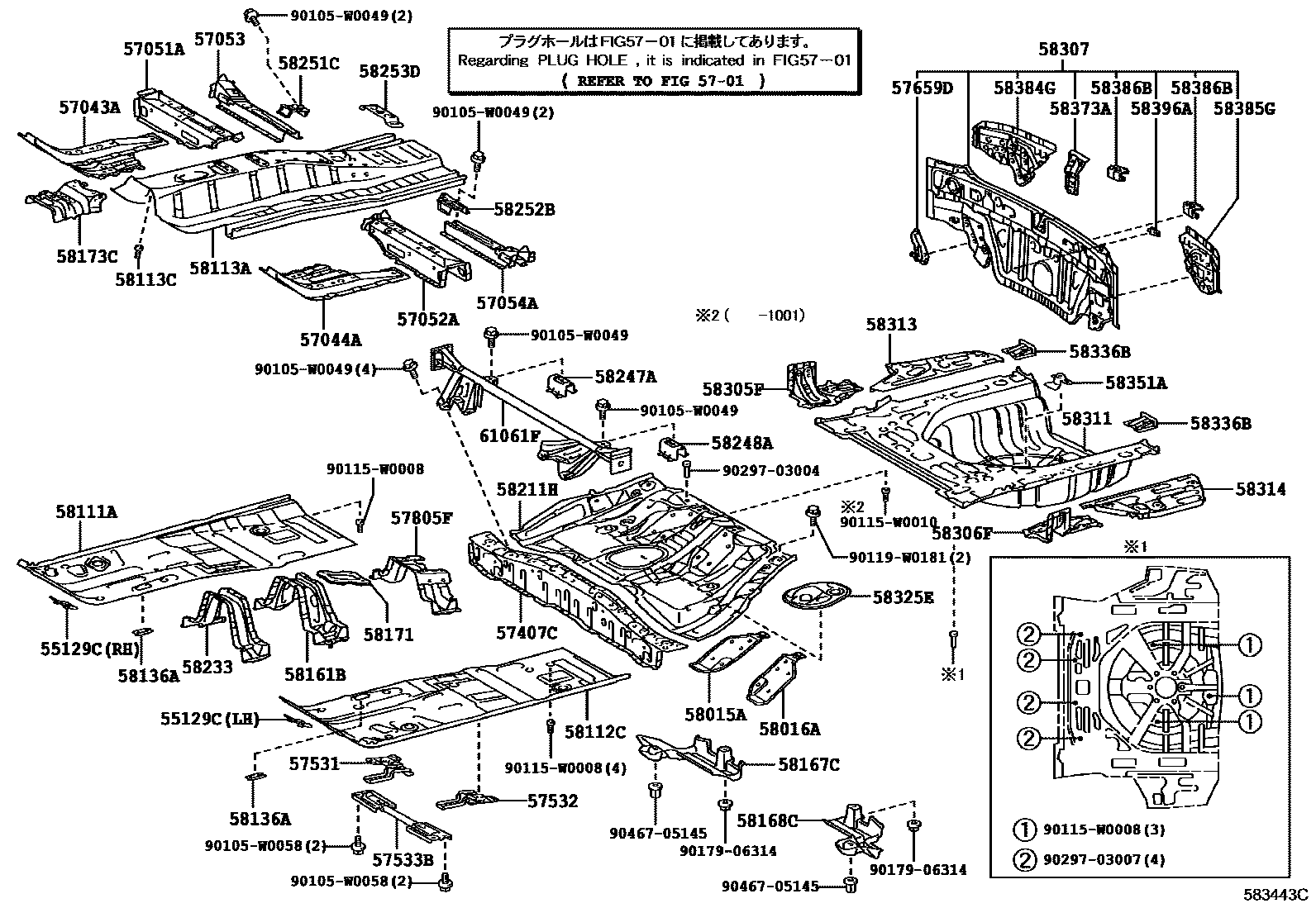

FLOOR PAN & LOWER BACK PANEL

55129CCOVER, DASH PANEL HOLE

main55129-02030iAZT270200811-201104

RH

main55139-02020iAZT270200811-201104

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-02040iAZT270200811-201104

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-02040iAZT270200811-201104

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-02010iAZT270200811-201104

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-02010iAZT270200811-201104

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02010iAZT270200811-201104

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02010iAZT270200811-201104

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-02071iAZT270200811-201104

sub57407-12101

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-02010iAZT270200811-201104

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-02010iAZT270200811-201104

57533BBRACE, FRONT FLOOR, CENTER

main57501-02020iAZT270200811-200910

sub57501-02021

main57501-02021iAZT270200911-201104

57659DBRACKET, EXHAUST PIPE MOUNTING, NO.4

main51904-05010iAZT270200811-201104

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-02030iAZT270200811-201104

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02061iAZT270200811-201004

sub58015-02160

main58015-02160iAZT270201005-201104

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02031iAZT270200811-201004

sub58016-02140

main58016-02140iAZT270201005-201104

58111APAN, FRONT FLOOR, RH

main58111-05903iAZT270200811-201104

58112CPAN, FRONT FLOOR, LH

main58112-05901iAZT270200811-201104

58113APANEL, FRONT FLOOR, CENTER

main58113-05901iAZT270200811-201104

58113CBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90115-W0010iAZT270200811-201104

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-02030iAZT270200811-201104

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-02040iAZT270200811-201104

58167CCOVER, FRONT FLOOR, CENTER RH

main58167-02010iAZT270200811-201104

58168CCOVER, FRONT FLOOR, CENTER LH

main58168-02010iAZT270200811-201104

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-02040iAZT270200811-201104

58173CBRACKET, WIRING HARNESS PROTECTOR

main58173-05010iAZT270200811-201104

sub58173-72010

58211HPAN, CENTER FLOOR

main58211-02907iAZT270200811-201104

58233BRACKET, EXHAUST PIPE MOUNTING

main58203-02020iAZT270200811-201104

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-05010iAZT270200811-201104

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-05010iAZT270200811-201104

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-02030iAZT270200811-201104

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-02010iAZT270200811-201104

58253DBRACKET, PARKING BRAKE CABLE

main58253-02020iAZT270200811-201104

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-02010iAZT270200811-201104

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-02010iAZT270200811-201104

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-05090iAZT270200811-201104

58311PAN, REAR FLOOR

main58311-05060iAZT270200811-201104

58313PANEL, REAR FLOOR SIDE, RH

main58313-05030iAZT270200811-201104

58314PANEL, REAR FLOOR SIDE, LH

main58314-05050iAZT270200811-201104

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02080iAZT270200811-201104

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-02050iAZT270200811-201104

58351ABRACKET, SPARE WHEEL CARRIER

main58351-02020iAZT270200811-201104

58373ARETAINER, LUGGAGE COMPARTMENT DOOR LOOK STRIKER

main58309-05070iAZT270200811-201104

58384GGUSSET, LOWER BACK, UPPER RH

main58384-05050iAZT270200811-201104

58385GGUSSET, LOWER BACK, UPPER LH

main58385-05020iAZT270200811-201104

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02010iAZT270200811-201104

58396ABRACKET, WIRE HARNESS CLAMP

main82715-05440iAZT270200811-201104

61061FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1

main61063-05010iAZT270200811-201104

90105W0049

main90105-W0049

90105W0058

main90105-W0058

90115W0008

main90115-W0008

90115W0010

main90115-W0010

90119W0181

main90119-W0181

9017906314

main90179-06314

9029703004

main90297-03004

9029703007

main90297-03007

9046705145

main90467-05145

57 parts on this diagram · 1 diagram in section
