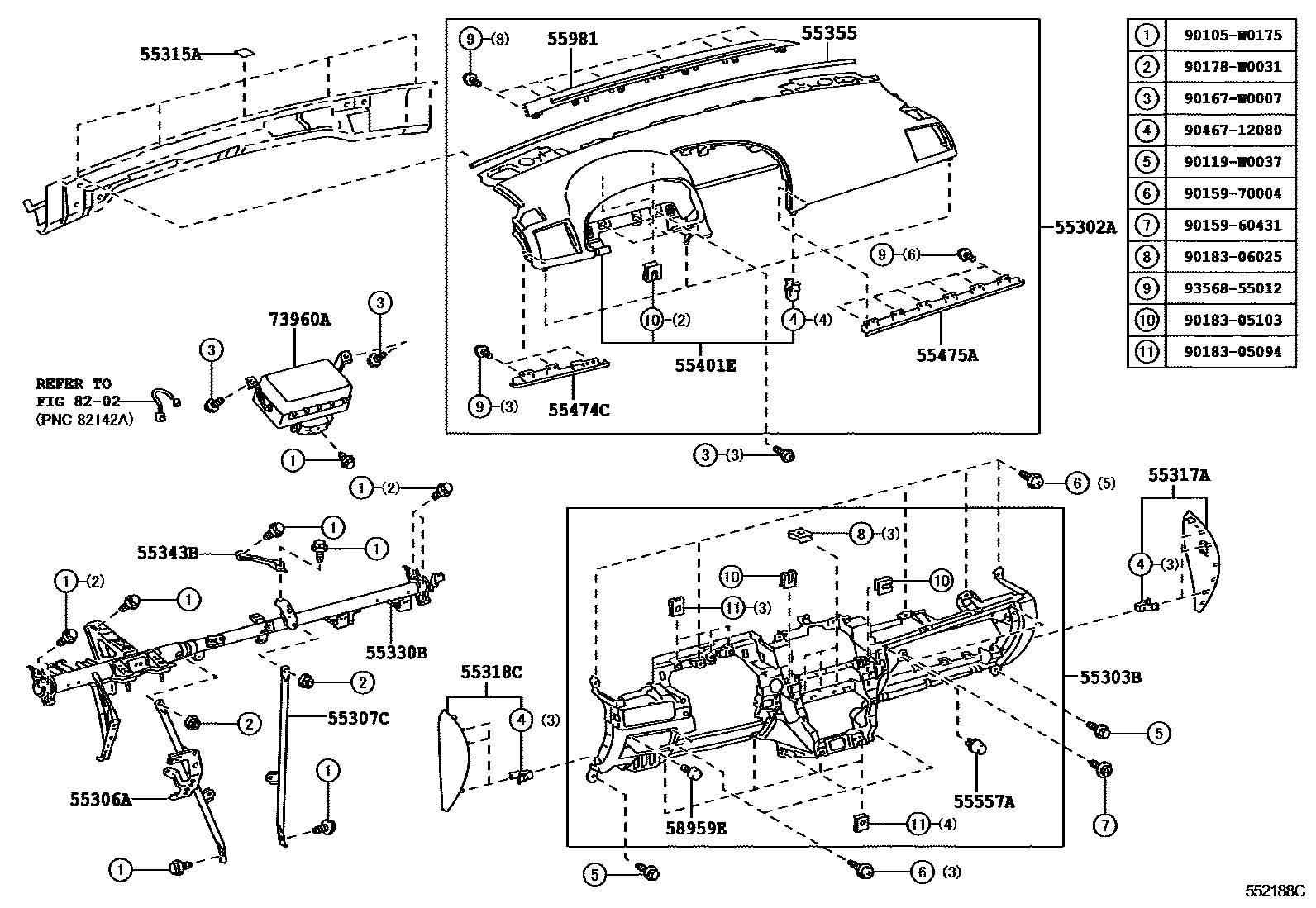

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55315ASPACER, INSTRUMENT PANEL, NO.1
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM2#,4#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM2#,4#
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55355CUSHION, INSTRUMENT PANEL, NO.1
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
55981GARNISH, DEFROSTER NOZZLE, NO.1
58959ECUSHION, CONSOLE COMPARTMENT DOOR
8202
90105W0175
main90105-W0175
90119W0037
main90119-W0037
9015960431
main90159-60431
9015970004
main90159-70004
90167W0007
main90167-W0007
90178W0031
main90178-W0031
9018305094
main90183-05094
9018305103
main90183-05103
9018306025
main90183-06025
9046712080
main90467-12080
9356855012
main93568-55012
29 parts on this diagram · 8 diagrams in section
