FLOOR SIDE MEMBER
51963DHOOK, TRANSPORT, REAR LH
51963FHOOK, TRANSPORT
51964FHOOK, TRANSPORT, LH
53935CPROTECTOR, FRONT END PANEL
5701
57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH
57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH
57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57197BOX, TORQUE, FRONT RH
(L)
(J)
57198BOX, TORQUE, FRONT LH
(L)
(J)
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
sub57601-02181
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
sub57602-02181
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57654CMEMBER, REAR FLOOR CROSS, NO.3
5801
90115W0010
main90115-W0010
9011906391
main90119-06391
90119W0030
main90119-W0030
9046706082
main90467-06082
91553L1025
main91553-L1025
91631B0614
main91631-B0614
91645C1232
main91645-C1232

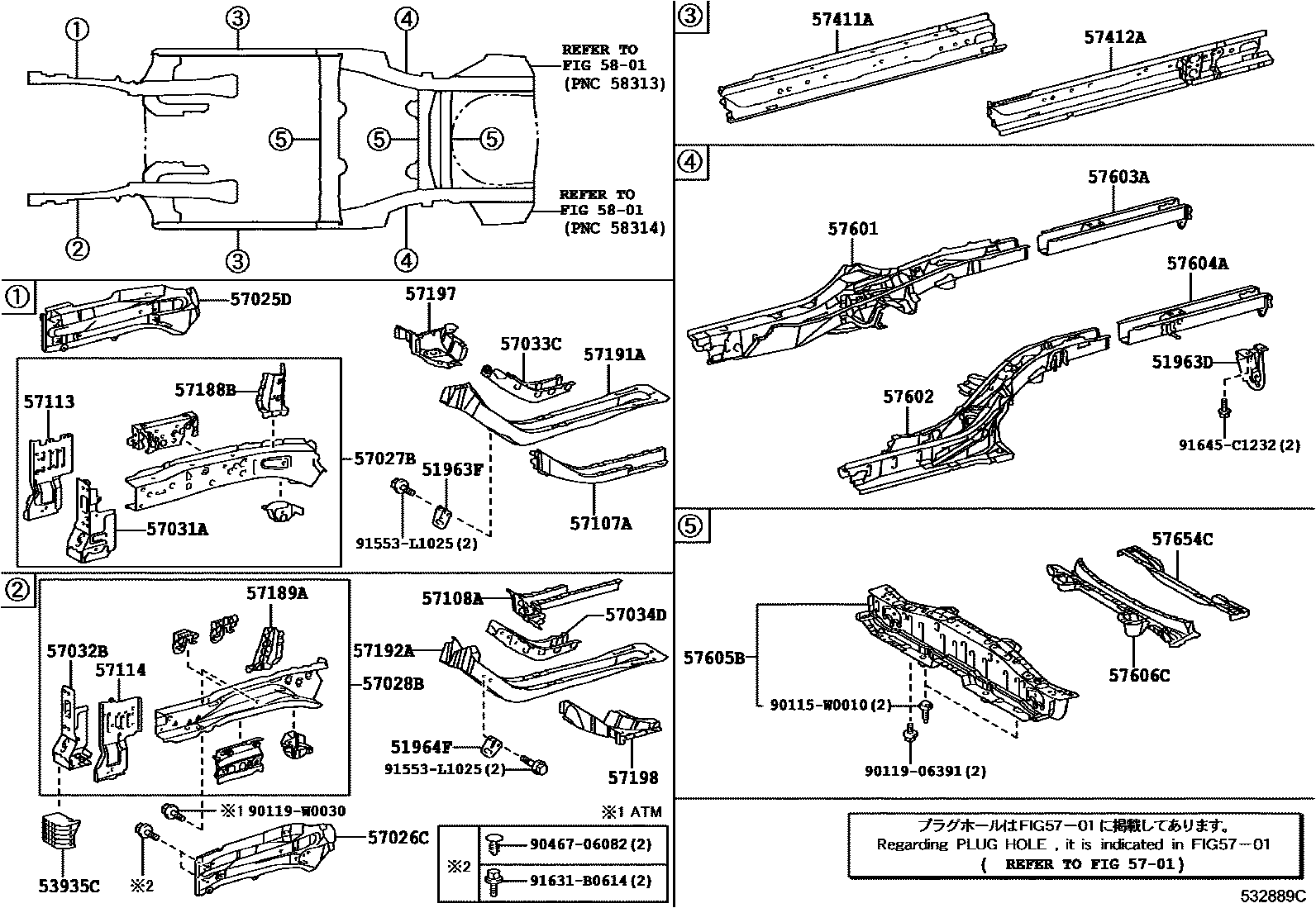

40 parts on this diagram · 1 diagram in section
