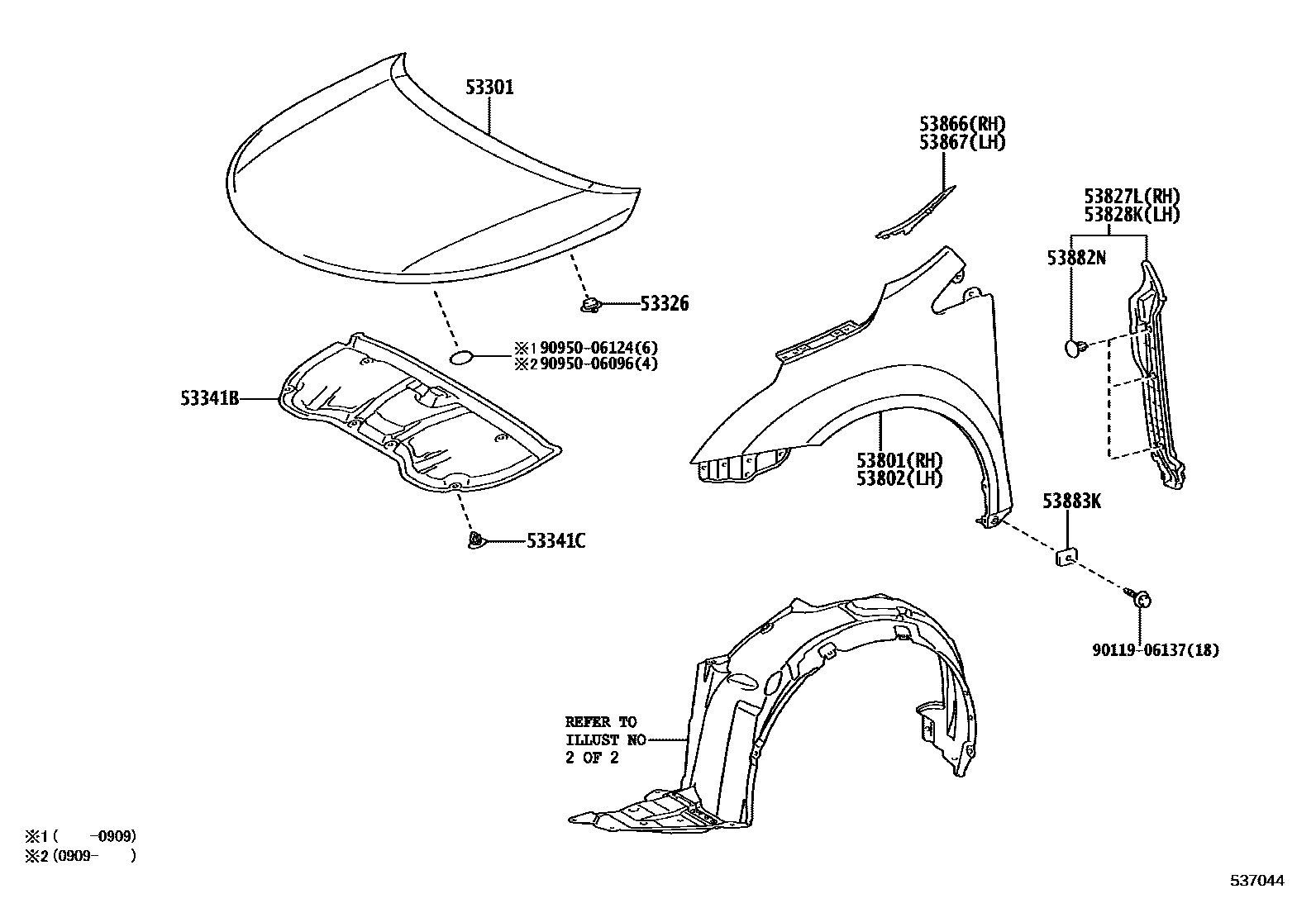

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-05040iAZT270200811-201104

53326CLIP, HOOD PROTECTOR

main53326-52010iAZT270200811-201104

53341BINSULATOR, HOOD

main53341-05040iAZT270200811-201104

53341CCLIP(FOR HOOD INSULATOR)

main90467-W0003iAZT270200811-201104

53801FENDER SUB-ASSY, FRONT RH

main53801-05020iAZT270200811-201104

53802FENDER SUB-ASSY, FRONT LH

main53802-05020iAZT270200811-201104

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-05010iAZT270200811-201104

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-05010iAZT270200811-201104

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-05030iAZT270200811-201104

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-05030iAZT270200811-201104

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06205-C0iAZT270200811-201104

BLACK

53883KSEAL, FRONT FENDER, LH

main53882-16030iAZT270200811-201104

9011906137

main90119-06137

9095006096

main90950-06096

9095006124

main90950-06124

15 parts on this diagram · 2 diagrams in section
