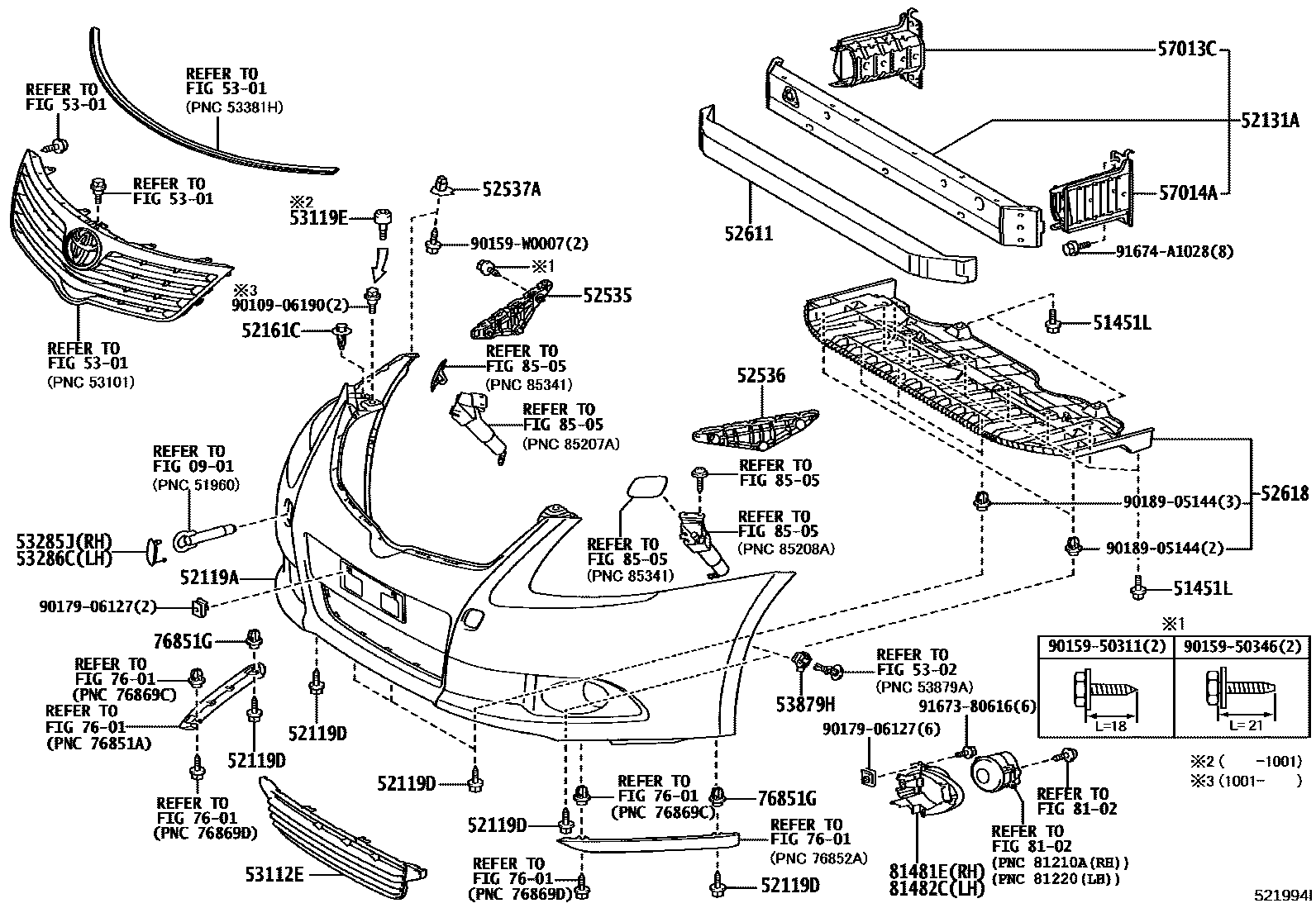

FRONT BUMPER & BUMPER STAY
0901
51451LBOLT, NO.1
52119ACOVER, FRONT BUMPER
PAINT REQ
52119DSCREW, NO.1
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52537ARETAINER, FRONT BUMPER SIDE, NO.2
52618ABSORBER, FRONT BUMPER, LOWER
5301
5302
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
53119EPROTECTOR, RADIATOR GRILLE
53285JCOVER, FRONT BUMPER ARM HOLE, RH
53286CCOVER, FRONT BUMPER ARM HOLE, LH
53879HRETAINER, FRONT FENDER LINER
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
7601
76851GGROMMET, SCREW, NO.1
8102
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
8505
9010906190
main90109-06190
9015950311
main90159-50311
9015950346
main90159-50346
90159W0007
main90159-W0007
9017906127
main90179-06127
9018905144
main90189-05144
9167380616
main91673-80616
91674A1028
main91674-A1028
34 parts on this diagram · 1 diagram in section
