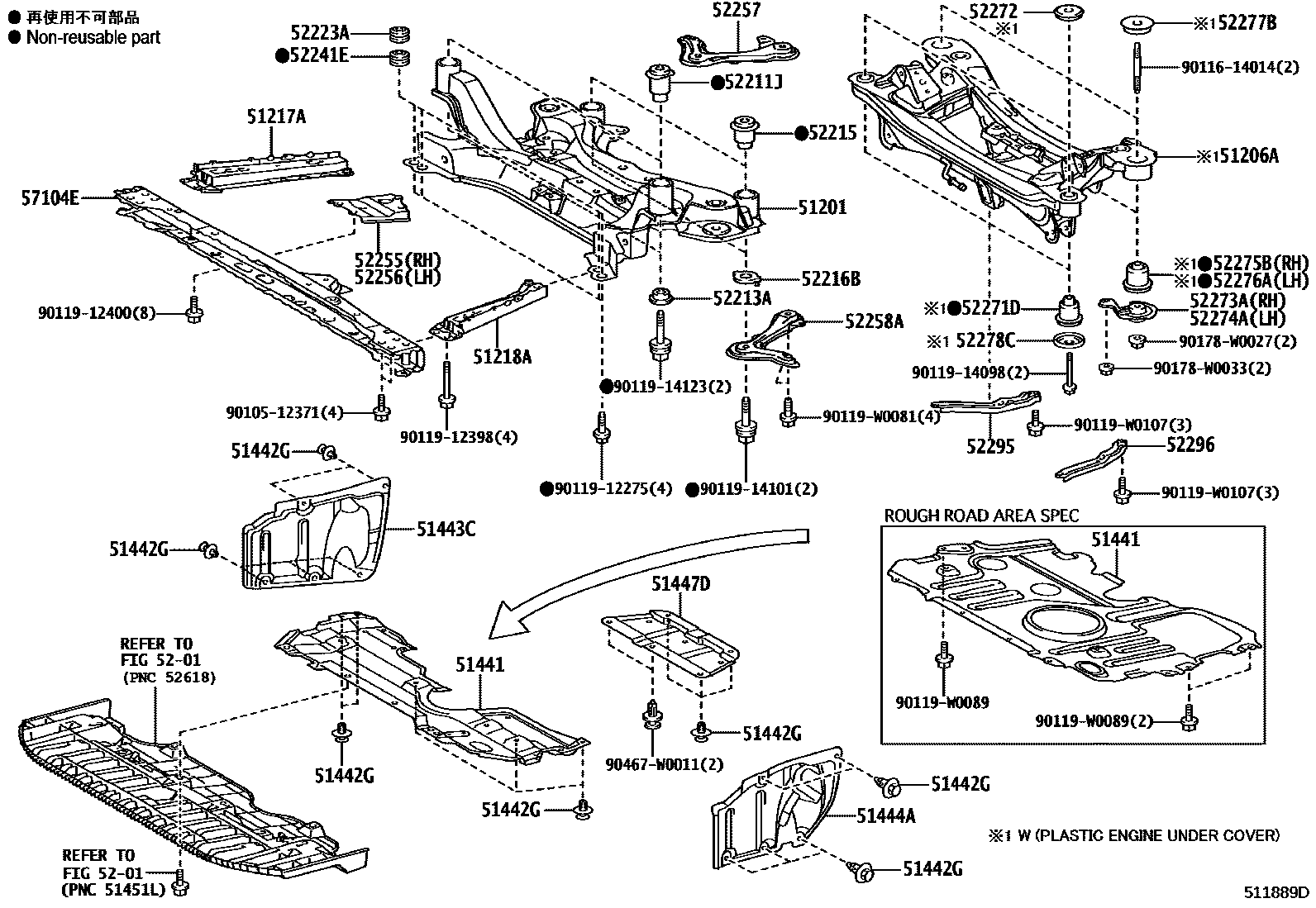

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-05100iAZT270200811-201104

sub51201-05101

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-05070iAZT270200811-201101

main51206-05080iAZT270200811-201101

ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)

main51206-05090iAZT270201101-201104

sub51206-05091

main51206-05100iAZT270201101-201104

ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)

sub51206-05101

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-05020iAZT270200811-201104

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-05010iAZT270200811-201104

51441COVER, ENGINE UNDER, NO.1

main51408-02041iAZT270200811-201104

ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)

main51441-02220iAZT270200811-201104

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-07201iAZT270200811-201104

ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02050iAZT270200811-201104

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02041iAZT270200811-201104

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02010iAZT270200811-201104

5201

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-05020iAZT270200811-201104

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-05020iAZT270200811-201104

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-05020iAZT270200811-201104

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-05020iAZT270200811-201104

52223ASPACER, CAB REAR MOUNTING, LOWER

main52223-05010iAZT270200811-201104

52241ECUSHION, CAB REAR MOUNTING

main52241-05010iAZT270200811-201104

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02010iAZT270200811-201104

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02010iAZT270200811-201104

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-05031iAZT270200811-201104

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-05031iAZT270200811-201104

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-05020iAZT270200811-201104

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-05030iAZT270200811-201104

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-02010iAZT270200811-201104

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52203-02010iAZT270200811-201104

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-05030iAZT270200811-201104

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-05030iAZT270200811-201104

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-05030iAZT270200811-201104

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-05010iAZT270200811-201104

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-05030iAZT270200811-201104

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-05030iAZT270200811-201104

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-02160iAZT270200811-201104

sub57104-12270

9010512371

main90105-12371

9011614014

main90116-14014

9011912275

main90119-12275

9011912398

main90119-12398

9011912400

main90119-12400

9011914098

main90119-14098

9011914101

main90119-14101

9011914123

main90119-14123

90119W0081

main90119-W0081

90119W0089

main90119-W0089

90119W0107

main90119-W0107

90178W0027

main90178-W0027

90178W0033

main90178-W0033

90467W0011

main90467-W0011

45 parts on this diagram · 1 diagram in section
