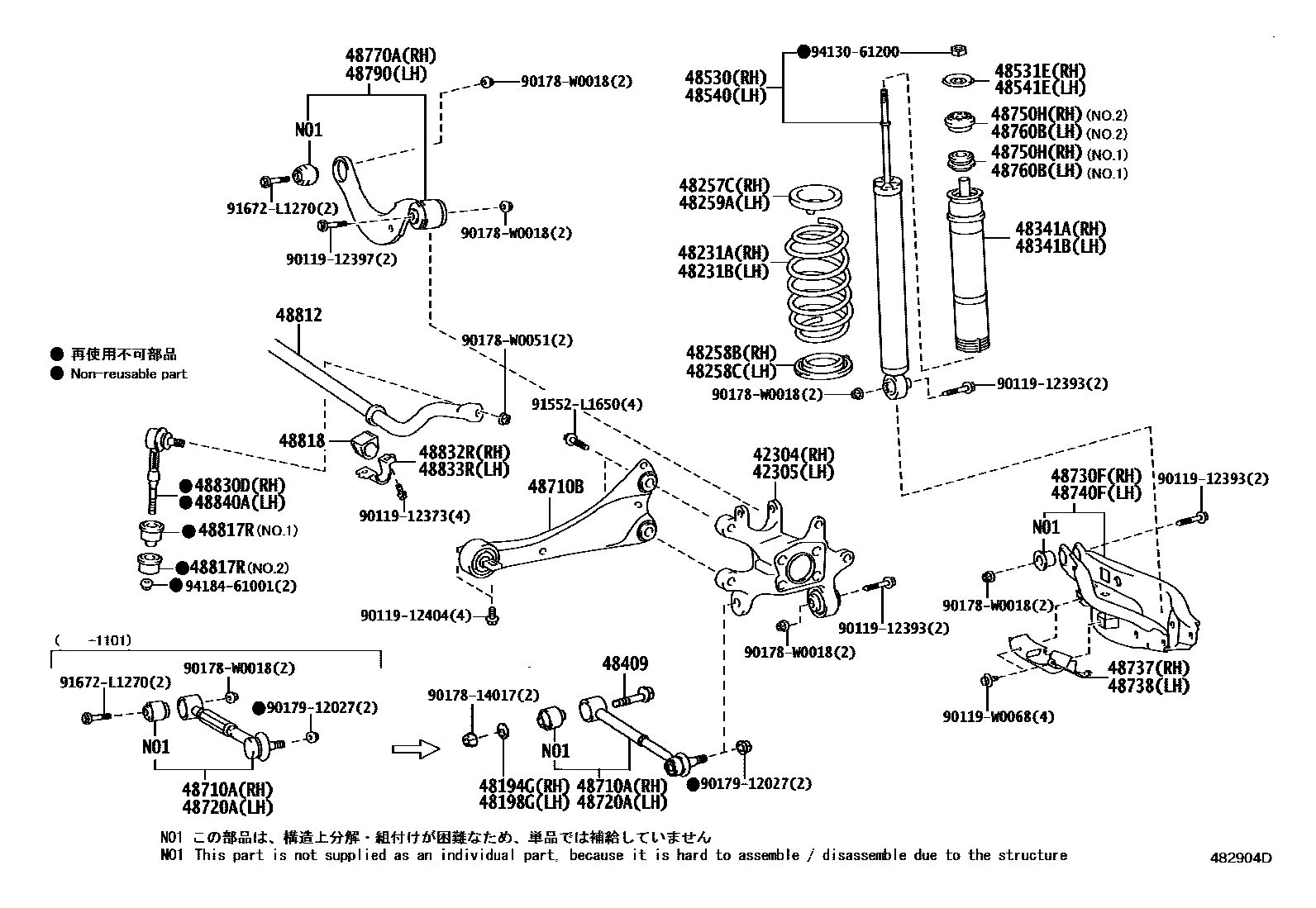

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48194GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH
48198GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH
48231ASPRING, COIL, REAR RH
ROUGH ROAD AREA SPEC-*VHU ONLY
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)
48231BSPRING, COIL, REAR LH
ROUGH ROAD AREA SPEC-*VHU ONLY
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-05390,ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)
sub48530-09Q91
MARK 48530-05391,ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)
sub48530-8Z021
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-05390,ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)
sub48530-09Q91
MARK 48530-05391,ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)
sub48530-8Z021
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48710BARM ASSY, TRAILING, REAR
RH
LH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
NO.1
NO.2
48760BSUPPORT ASSY REAR SUSPENSION, LH
NO.1
NO.2
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48817RCUSHION, STABILIZER(FOR REAR)
NO.1
NO.2
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
48840ALINK ASSY, REAR STABILIZER, LH
9011912373
main90119-12373
9011912393
main90119-12393
9011912397
main90119-12397
9011912404
main90119-12404
90119W0068
main90119-W0068
9017814017
main90178-14017
90178W0018
main90178-W0018
90178W0051
main90178-W0051
9017912027
main90179-12027
91552L1650
main91552-L1650
91672L1270
main91672-L1270
9413061200
main94130-61200
9418461001
main94184-61001
48 parts on this diagram · 1 diagram in section
