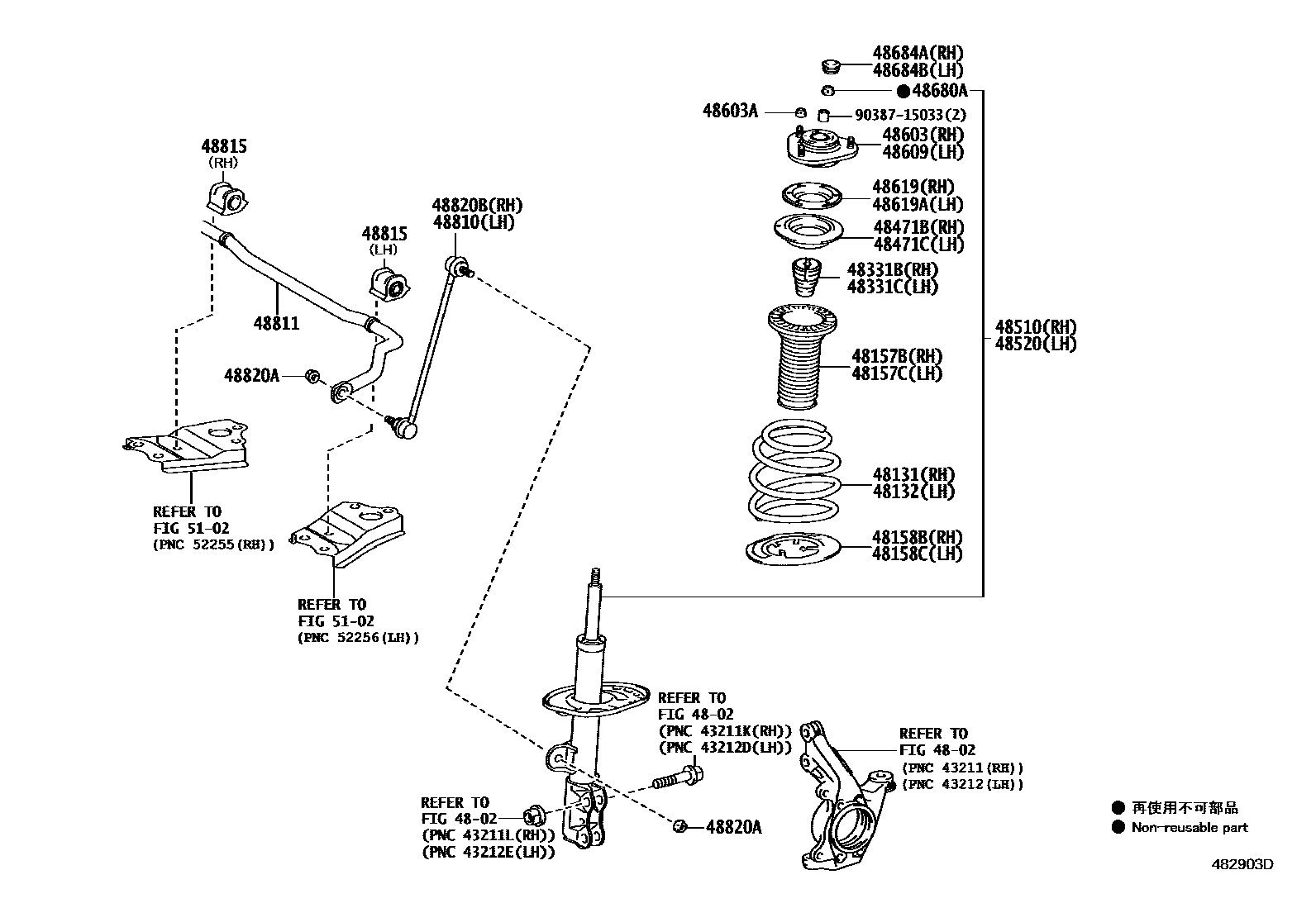

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
(L)
(L)
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP),(L)
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP),(L)
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP),(J)
sub48131-05B50
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP),(J)
sub48131-05B70
48132SPRING, FRONT COIL, LH
(L)
(L)
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP),(L)
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP),(L)
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP),(J)
sub48131-05B50
ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP),(J)
sub48131-05B70
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-05360,ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)
sub48510-09V71
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-05360,ROUGH ROAD AREA SPEC-*VHU,W(STEEL*EUC & *QSP & *FTUP)
sub48520-09N71
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
RH
LH
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
5102
9038715033
main90387-15033
28 parts on this diagram · 1 diagram in section
